Harness Routing Views

Harness Routing Views

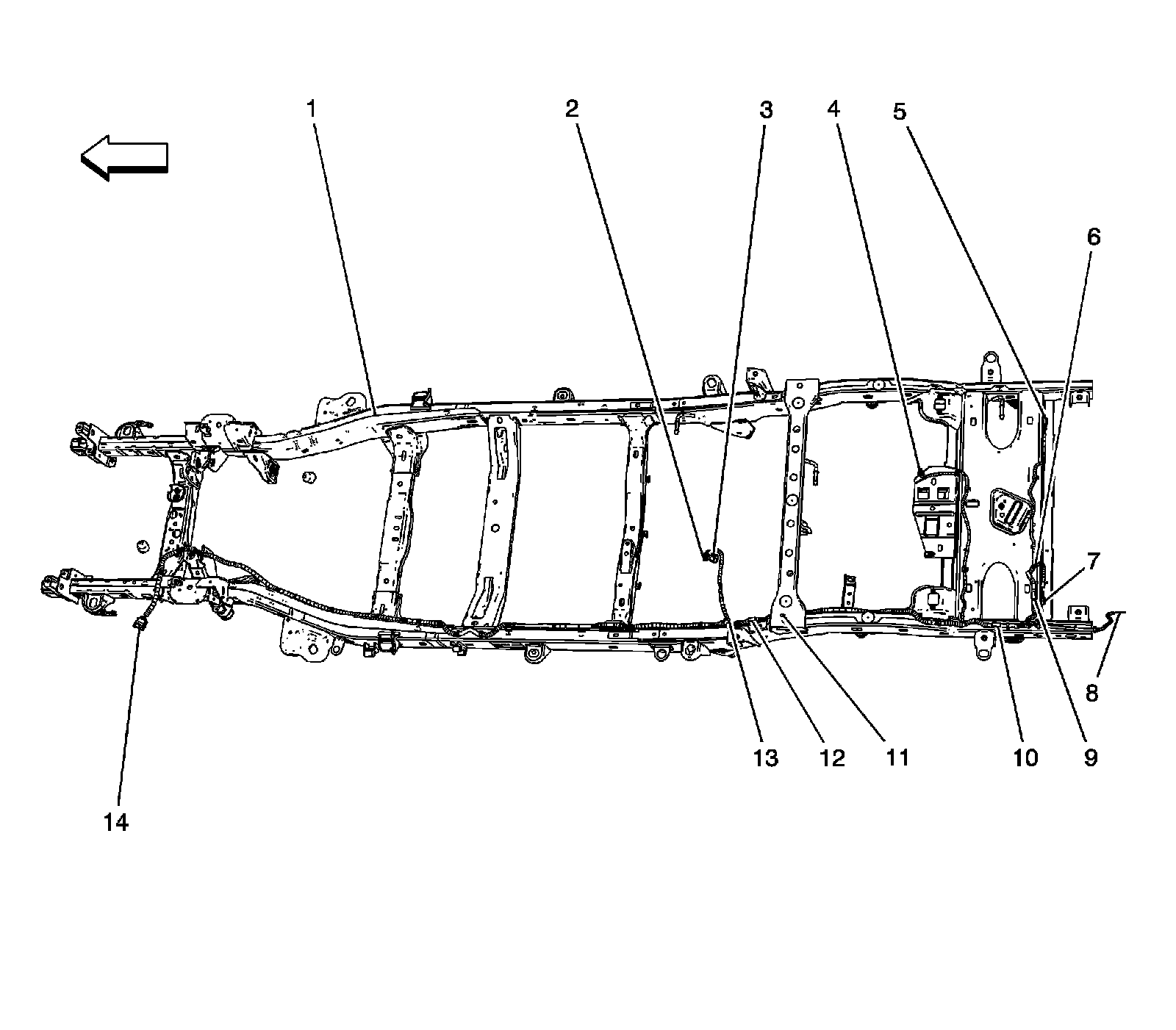

Chassis Harness Routing




1 - Chassis Frame
2 - Fuel Tank Pressure (FTP) Sensor
3 - Fuel Pump and Sender Assembly
4 - Evaporative Emission (EVAP) Canister Vent Solenoid
5 - X402 (Chassis Harness to Right Rear Lamp Assembly)
6 - J404
7 - X401 (Chassis Harness to Left Rear Lamp Assembly)
8 - X400 (Chassis Harness to License Lamp Harness)
9 - J403
10 - J402
11 - J400
12 - J401
13 - J310
14 - X102 (Body Harness to Chassis Harness)
