Door Module: Locations

Harness Routing Views

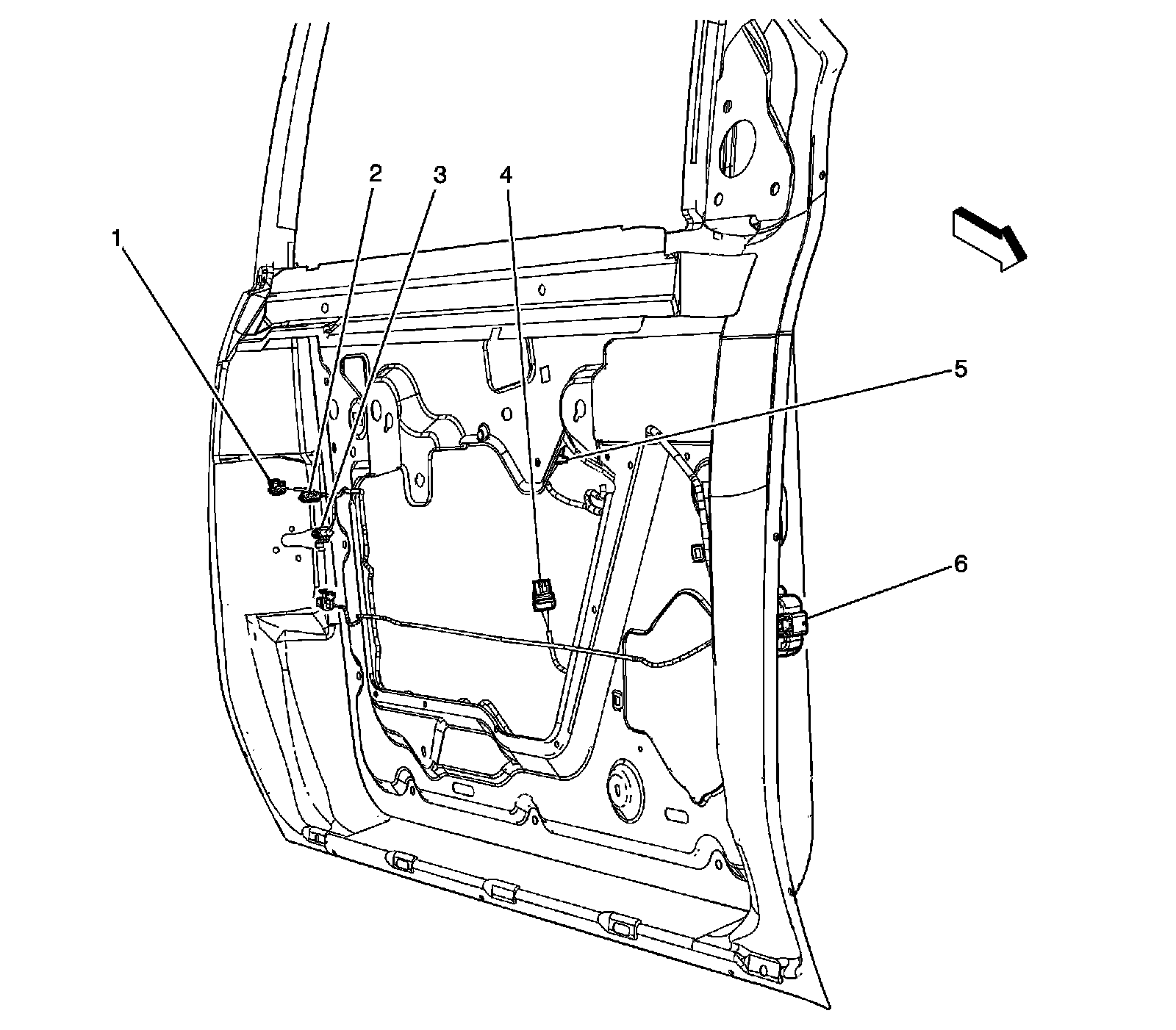

Right Front Door Harness Routing




1 - Door Latch Assembly - Passenger X1
2 - Door Latch Assembly - Passenger X2
3 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
4 - Window Motor - Front Passenger
5 - Front Passenger Door Module (FPDM) X1
6 - X600

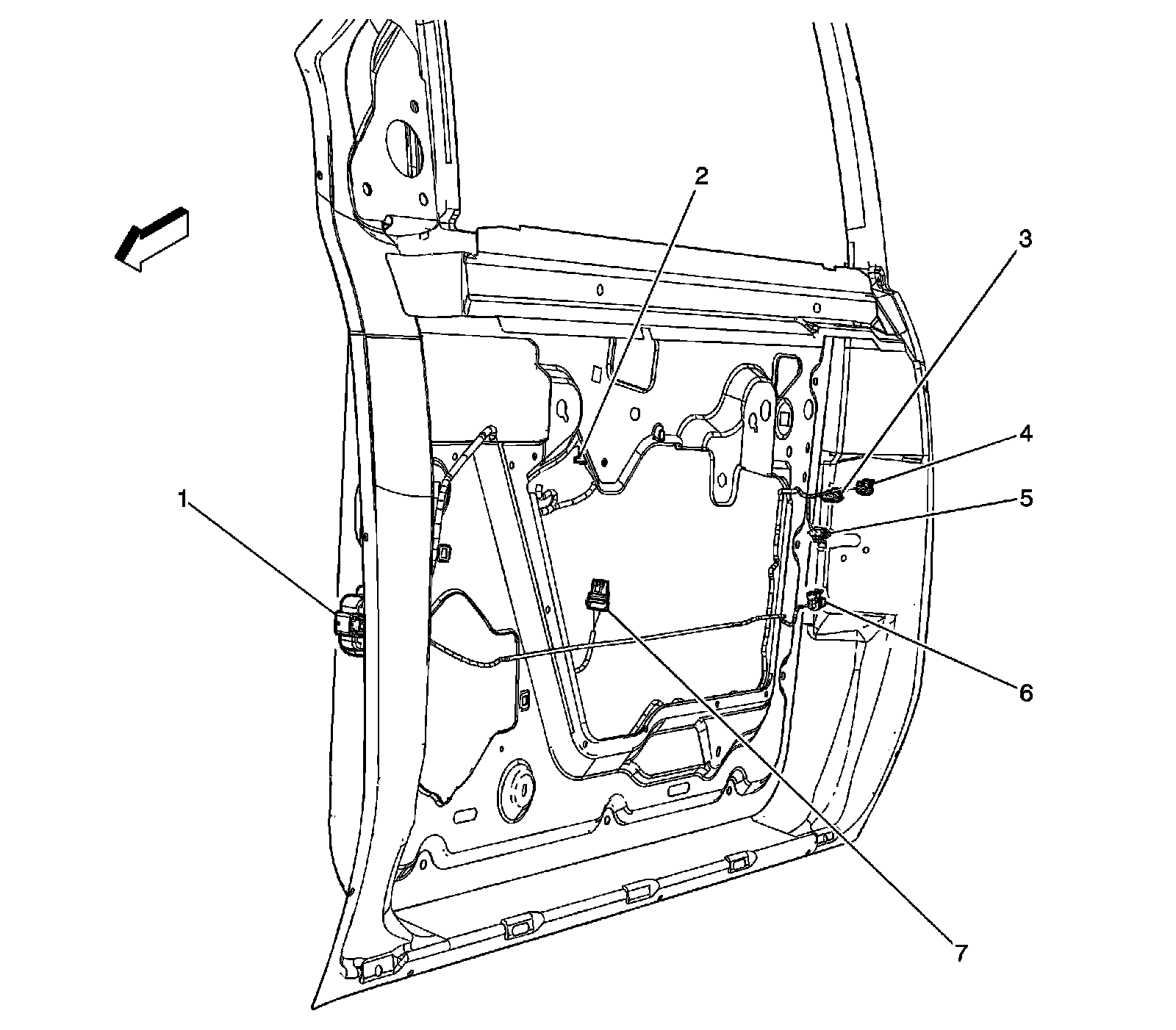

Left Front Door Harness Routing




1 - X500
2 - Driver Door Module (DDM) X2
3 - Door Latch Assembly - Driver X1
4 - Door Latch Assembly - Driver X3 (UA2/UA6)
5 - Door Latch Assembly - Driver X2
6 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
7 - Window Motor - Driver
