Fuel Injector




Component Connector End Views

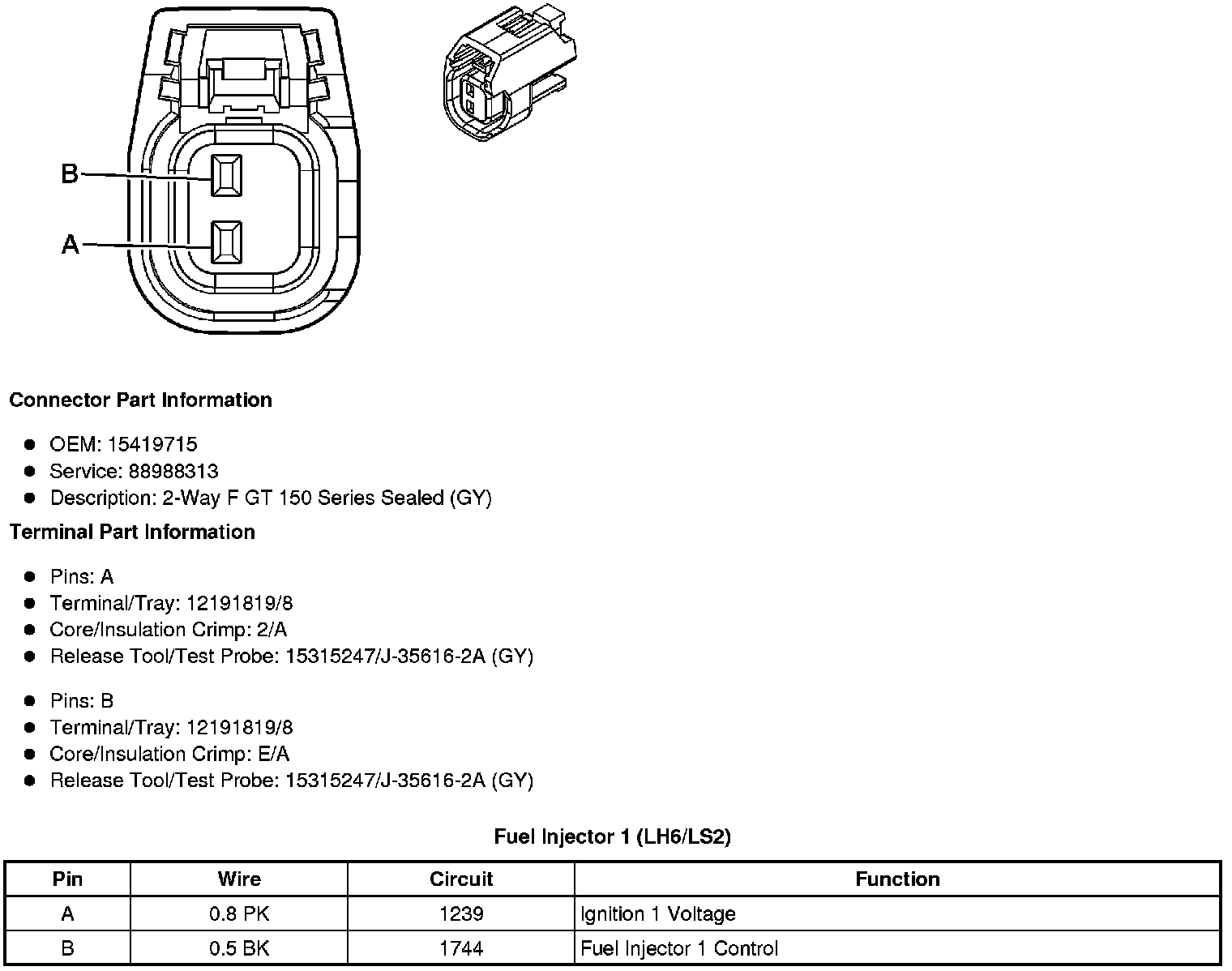

Fuel Injector 1 (LH6/LS2)






Fuel Injector 2 (LH6/LS2)






Fuel Injector 3 (LH6/LS2)






Fuel Injector 4 (LH6/LS2)






Fuel Injector 5 (LH6/LS2)






Fuel Injector 6 (LH6/LS2)

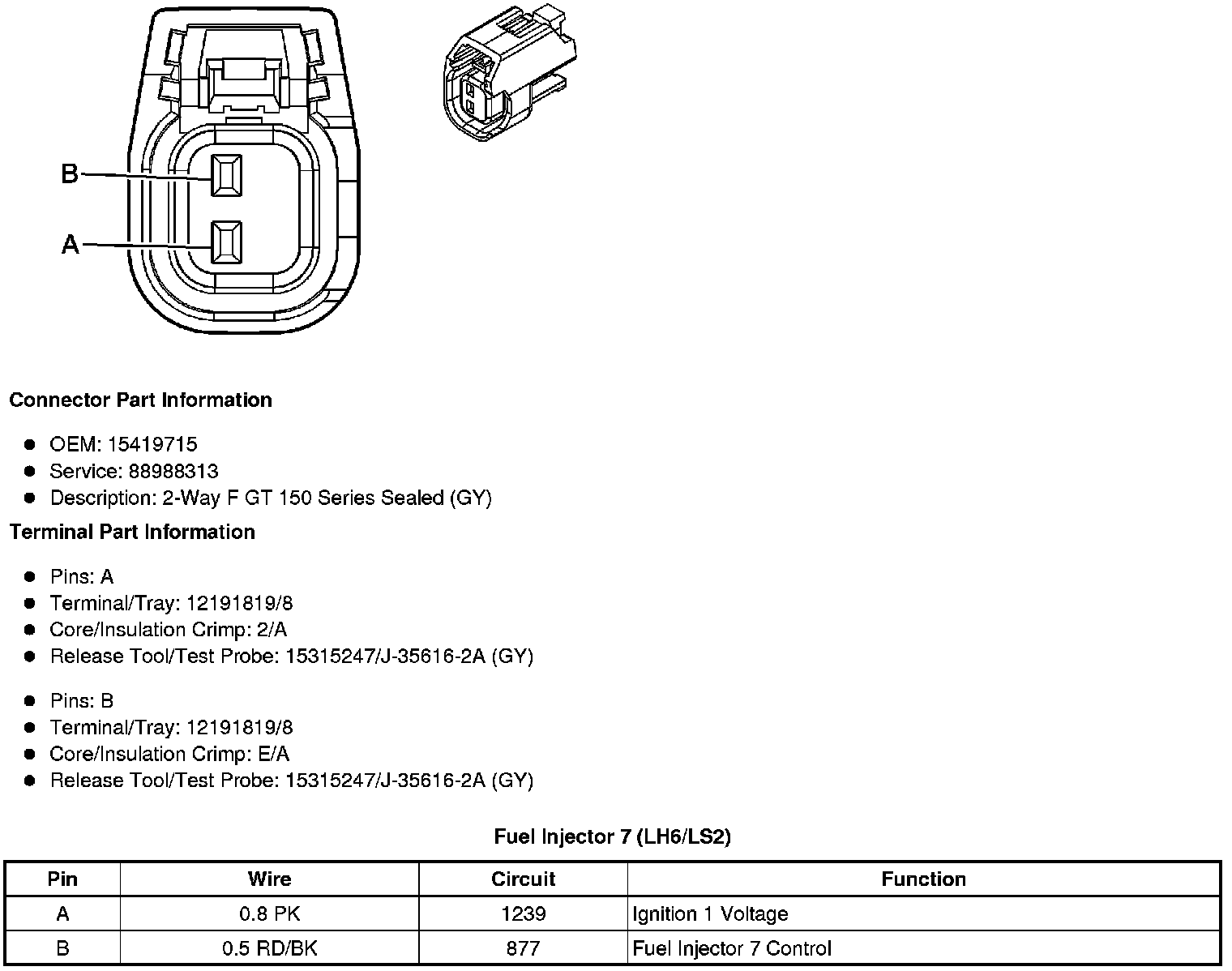

Fuel Injector 7 (LH6/LS2)

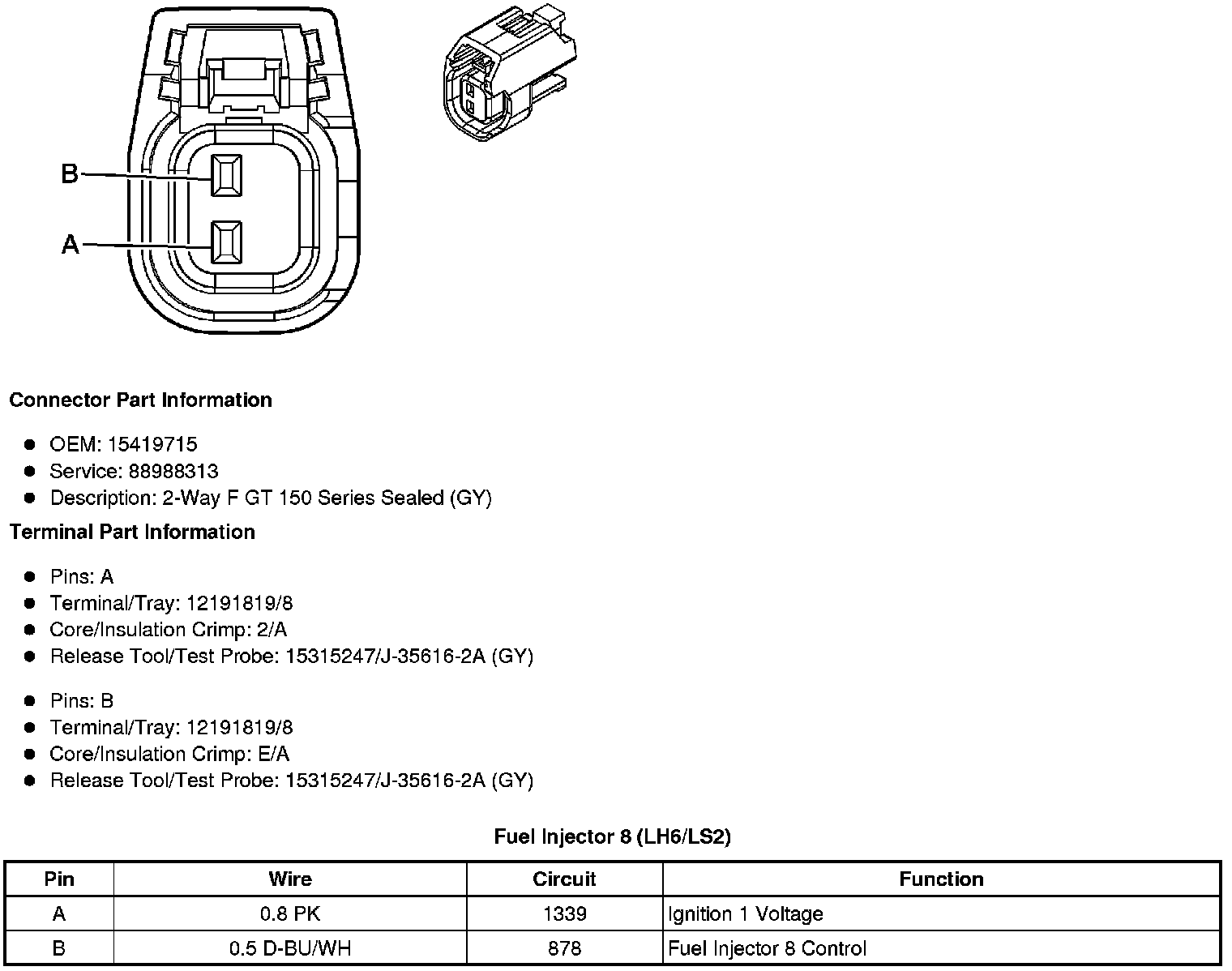

Fuel Injector 8 (LH6/LS2)
