Engine Controls Schematics

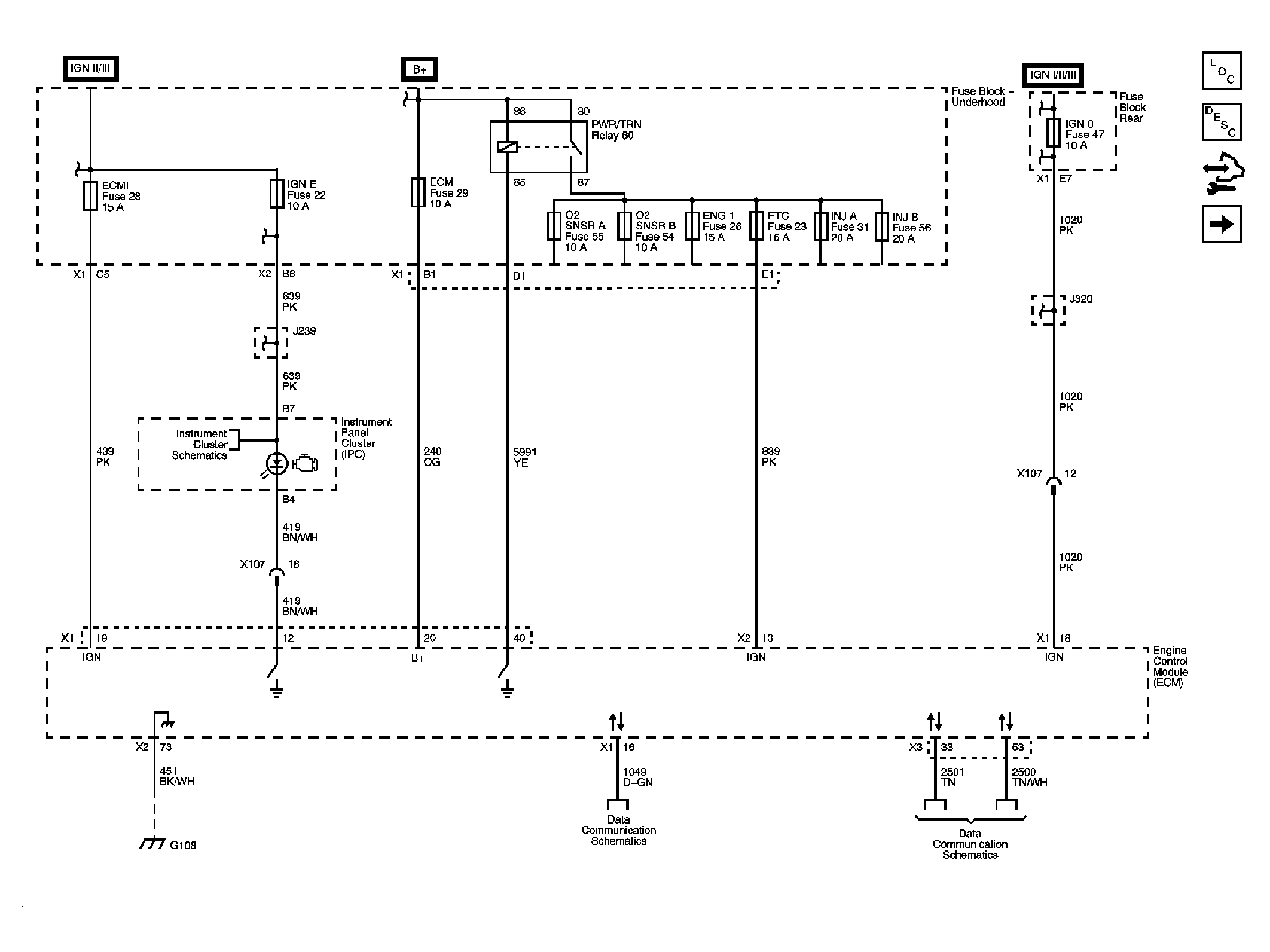

Fig 1: Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

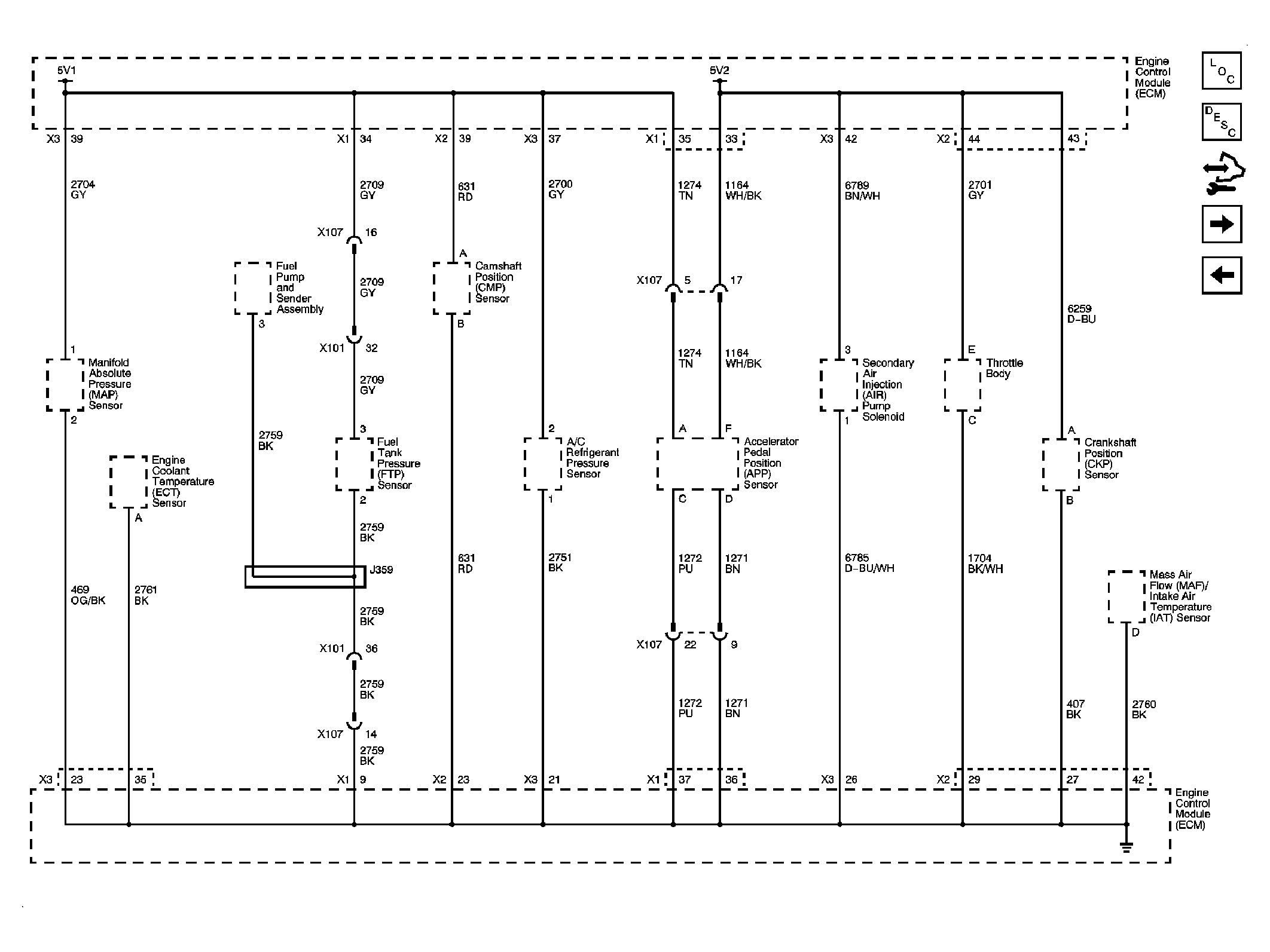

Fig 2: Engine Data Sensors - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - MAF, Pressure and Temperature

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - Electronic Throttle Control

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Controls - Ignition Coils 1, 3, and 5

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - Ignition Coils 2, 4, and 6

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

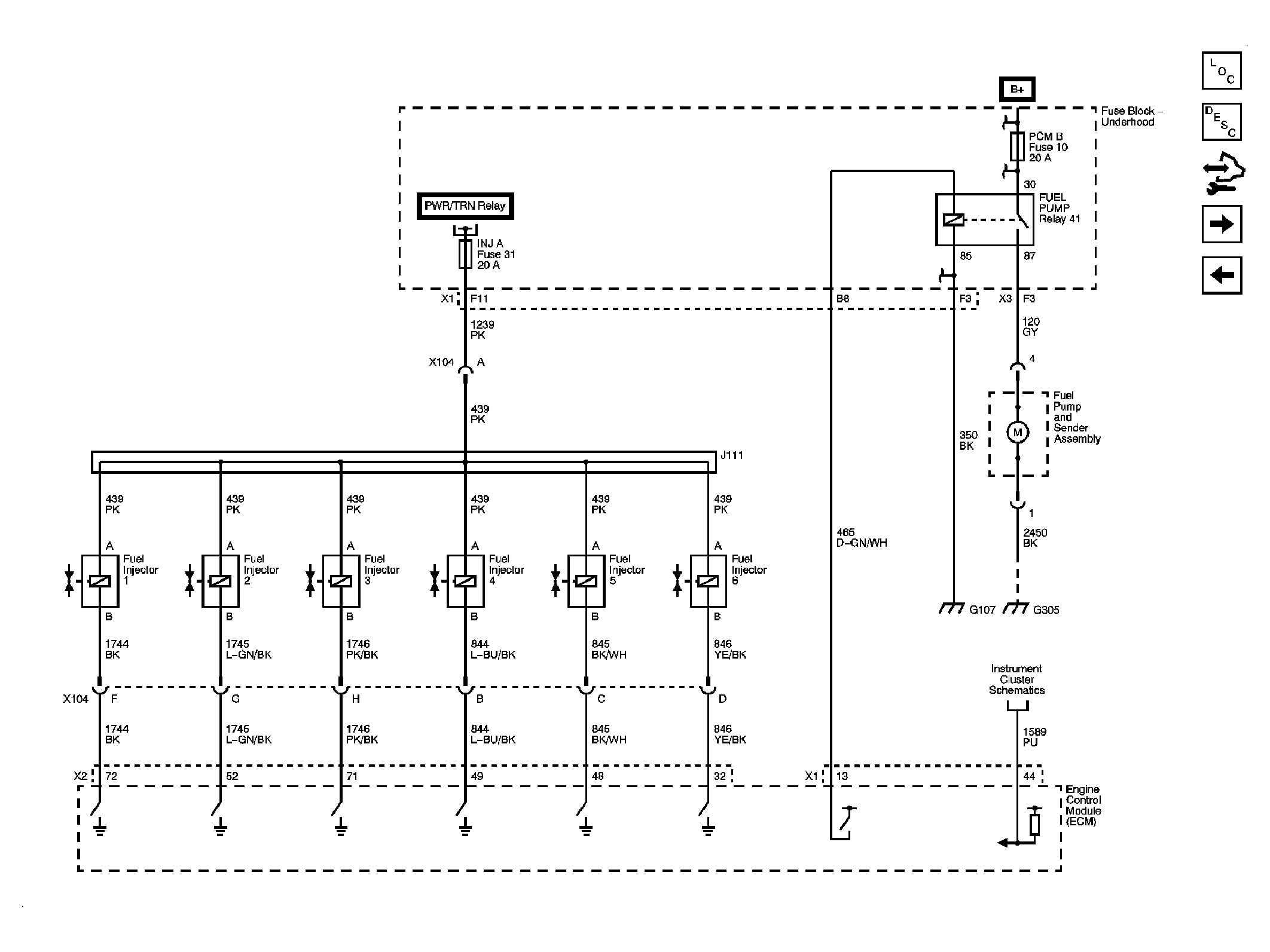

Fig 9: Fuel Controls - Fuel Pump and Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

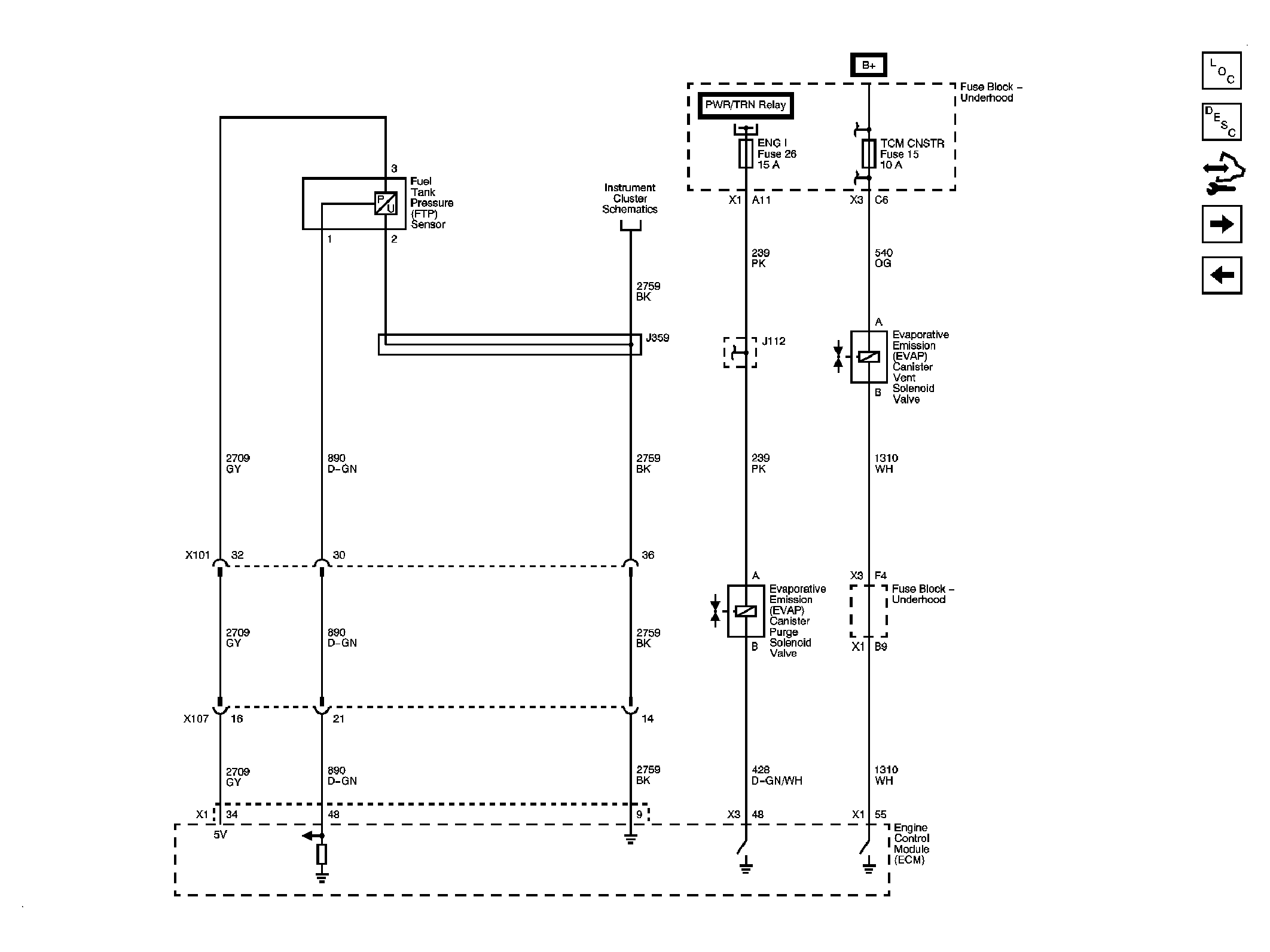

Fig 10: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

Fig 11: Device Controls - K18

Courtesy of GENERAL MOTORS CORP.

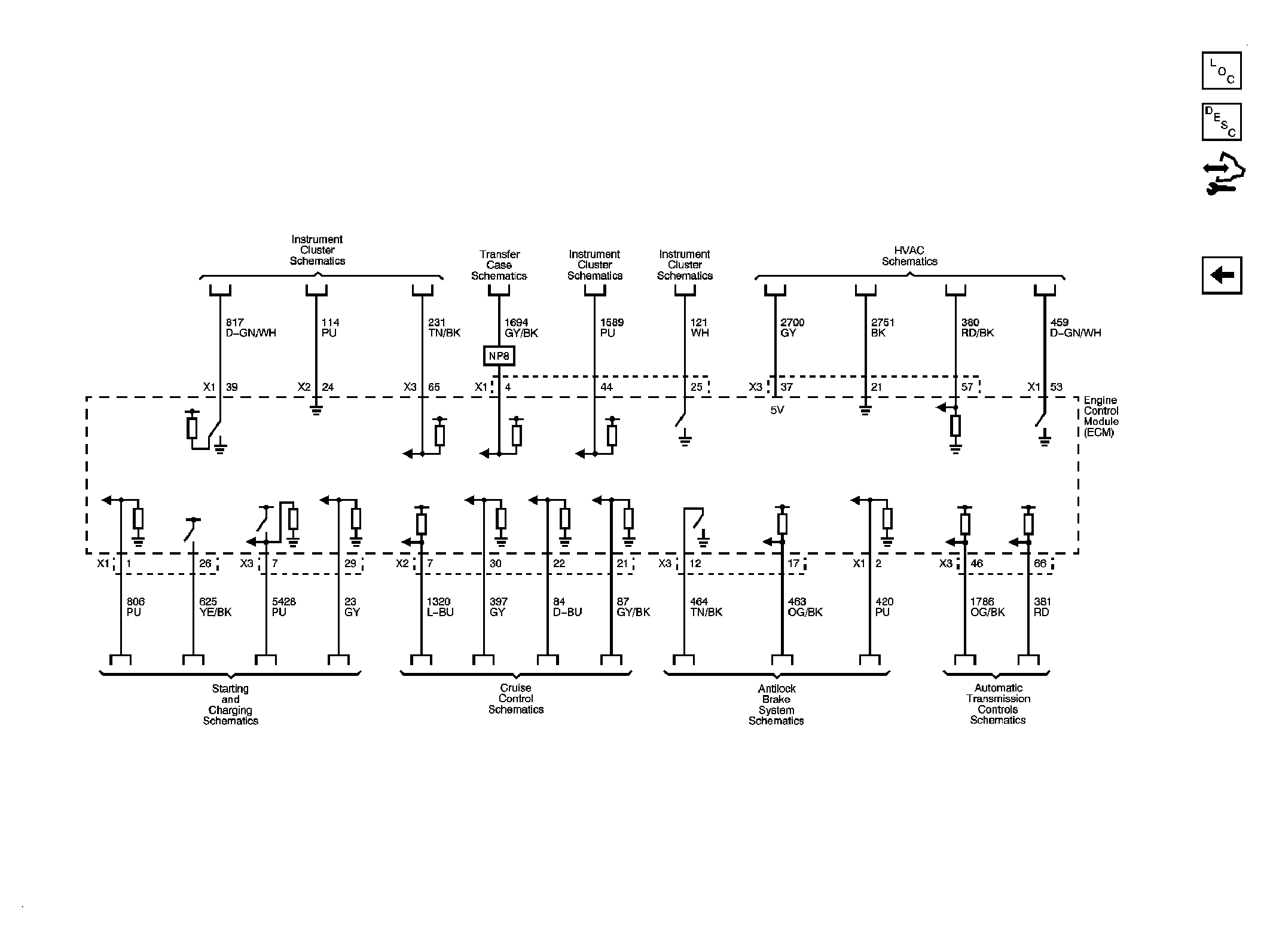

Fig 12: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
