Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Removal Procedure

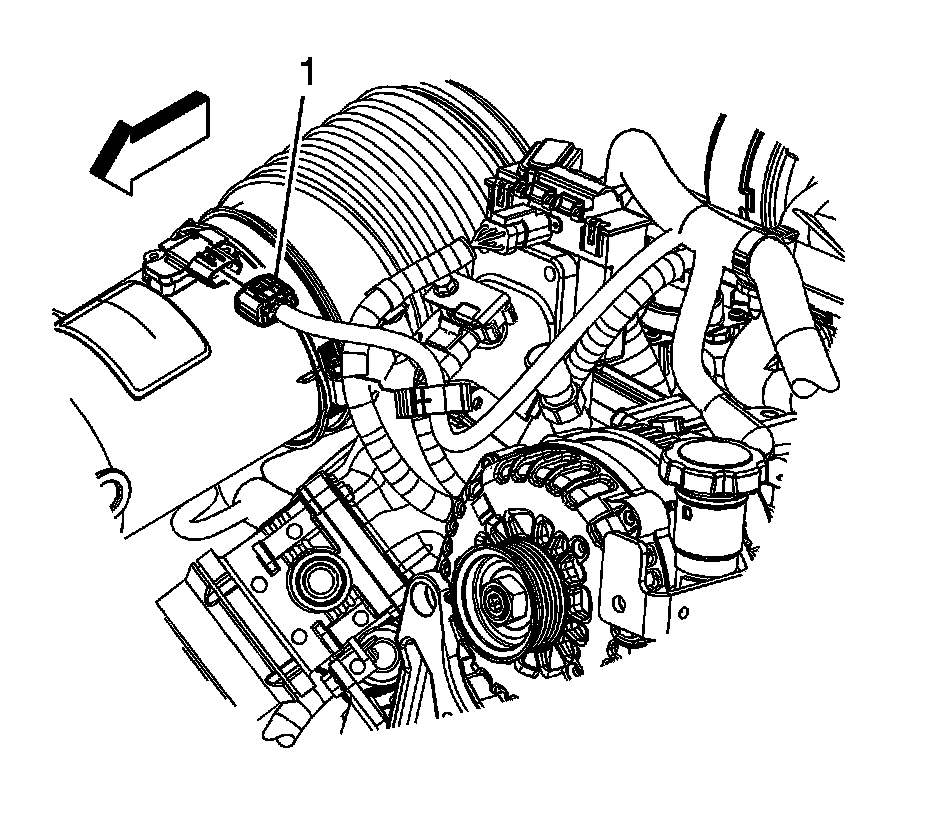

1. Disconnect the engine wiring harness electrical connector (1) from the mass air flow (MAF)/intake air temperature (IAT) sensor.

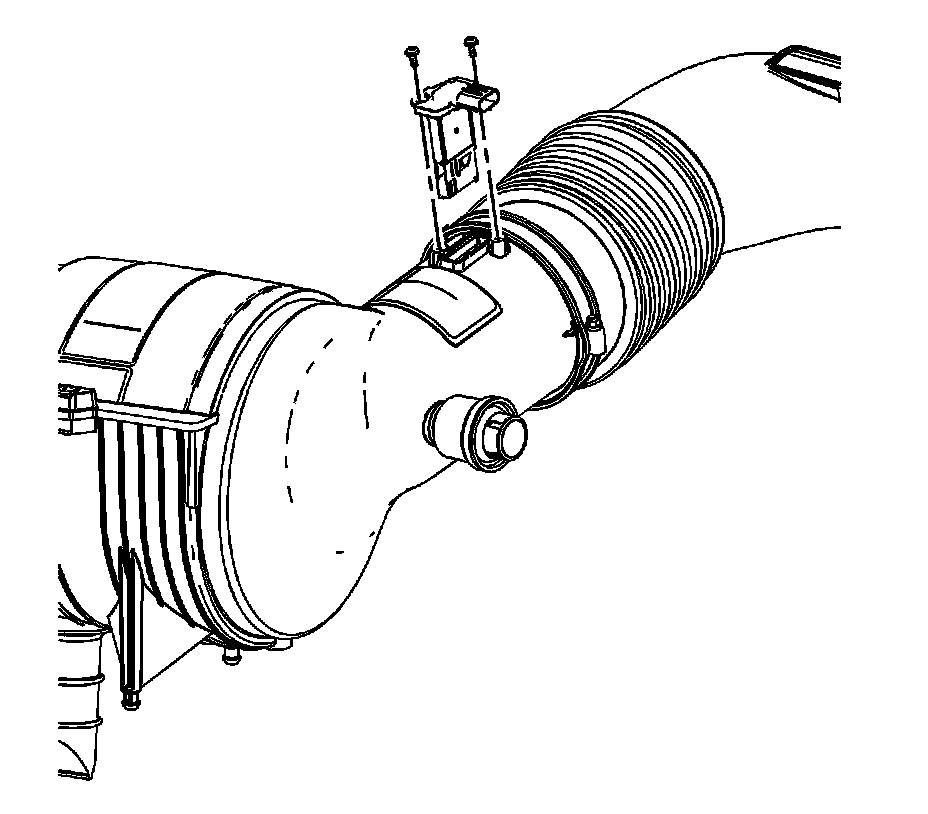

2. Remove the MAF/IAT sensor TORX(R) screws.
3. Remove the MAF/IAT sensor.



Installation Procedure





1. Install the MAF/IAT sensor.
Caution: Refer to Fastener Caution (Fastener Caution) .
2. Install the MAF/IAT sensor TORX(R) screws.

Tighten the screws to 8 Nm (70 lb in).





3. Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor.
