Component Locations

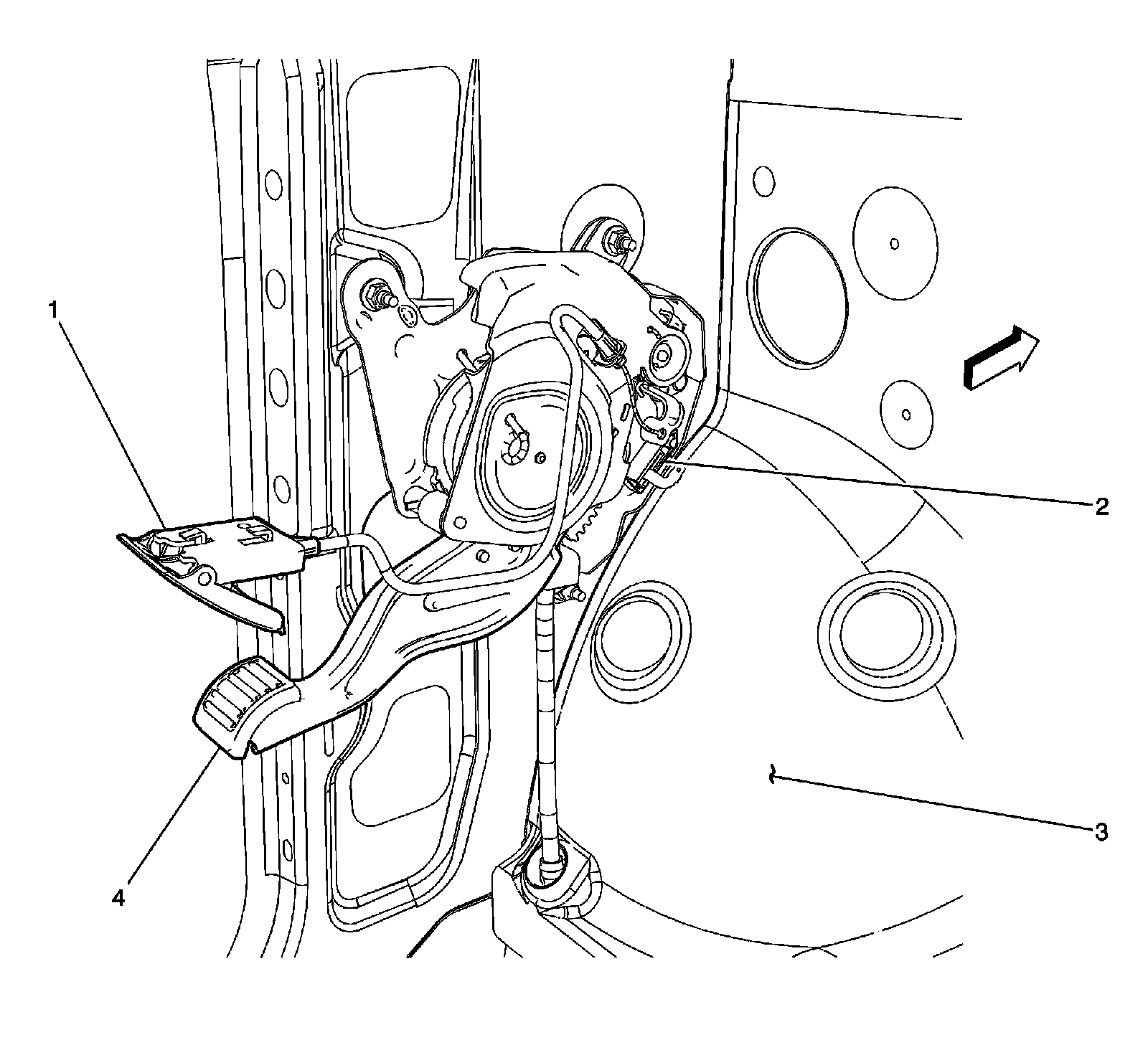

Below the Left of the I/P Components - 1 of 2

1 - Park Brake Release
2 - Park Brake Switch
3 - Dash Panel
4 - Park Brake Lever

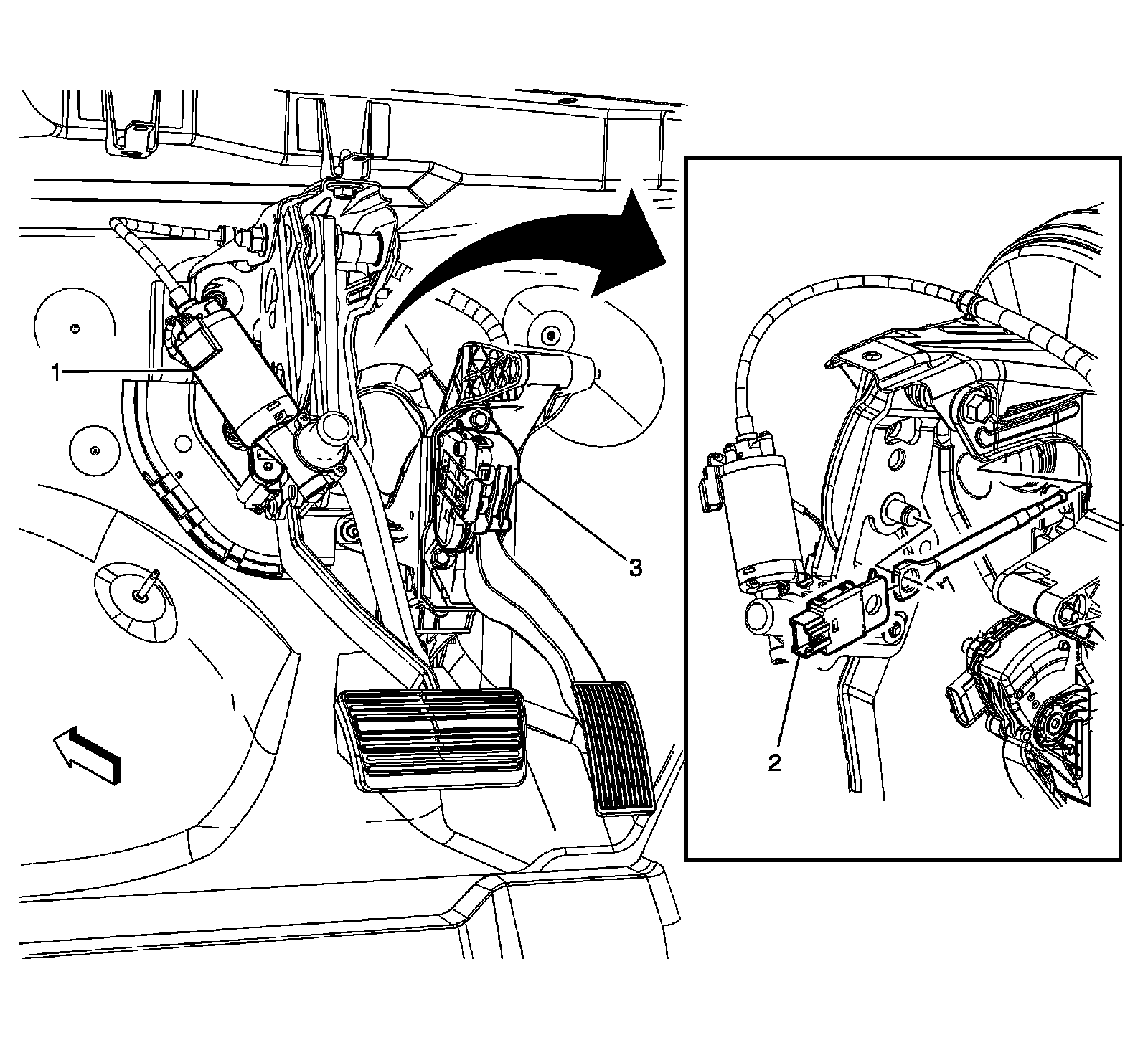

Below the Left of the I/P Components - 2 of 2

1 - Electronic Adjustable Pedal (EAP) Assembly (JF4)
2 - Stop Lamp Switch
3 - Accelerator Pedal Position (APP) Sensor
