Transfer Case Components

Powertrain Component Views

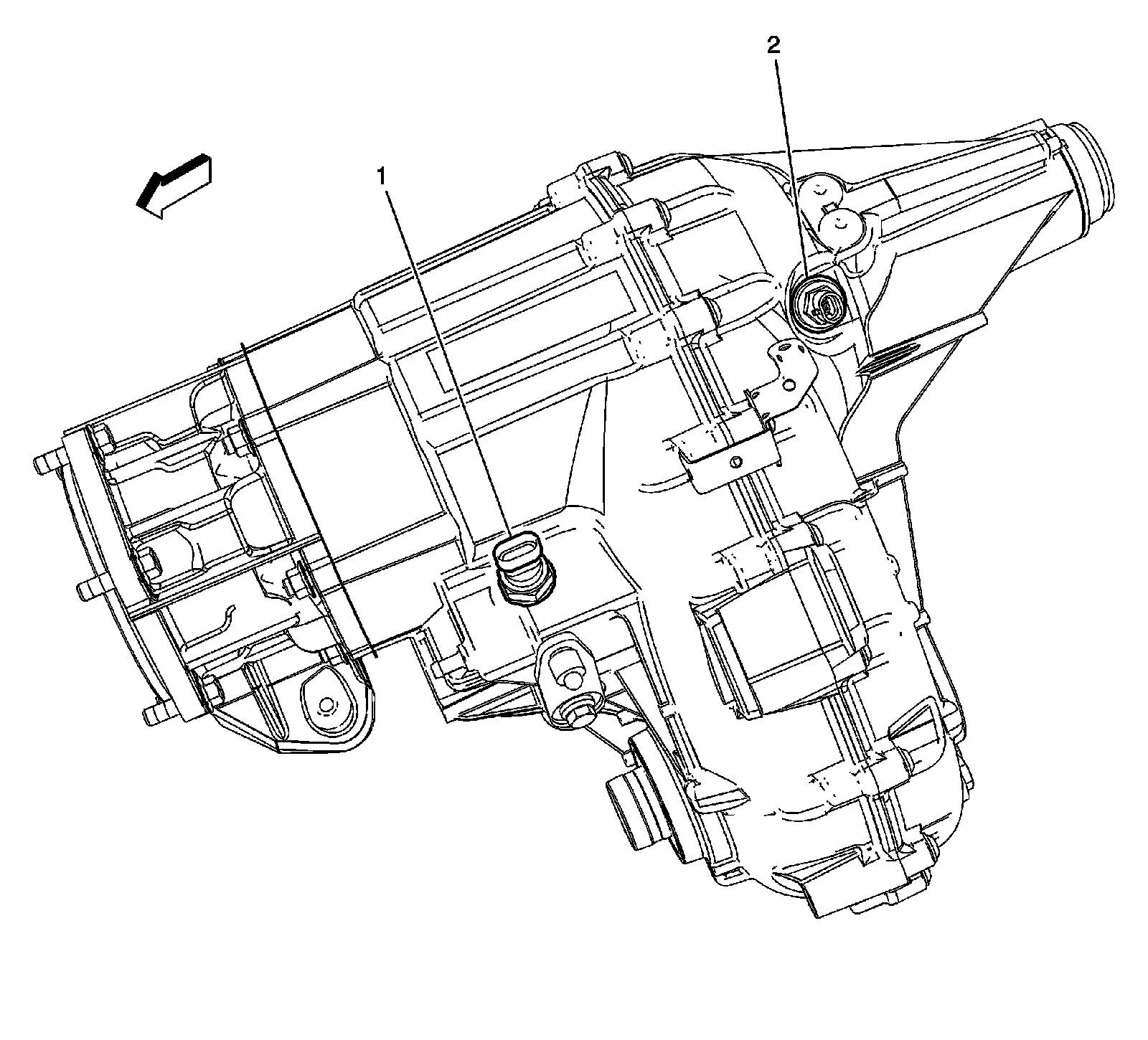

Transfer Case Components (NQG)

1 - Transfer Case Shift Control Switch
2 - Vehicle Speed Sensor (VSS)

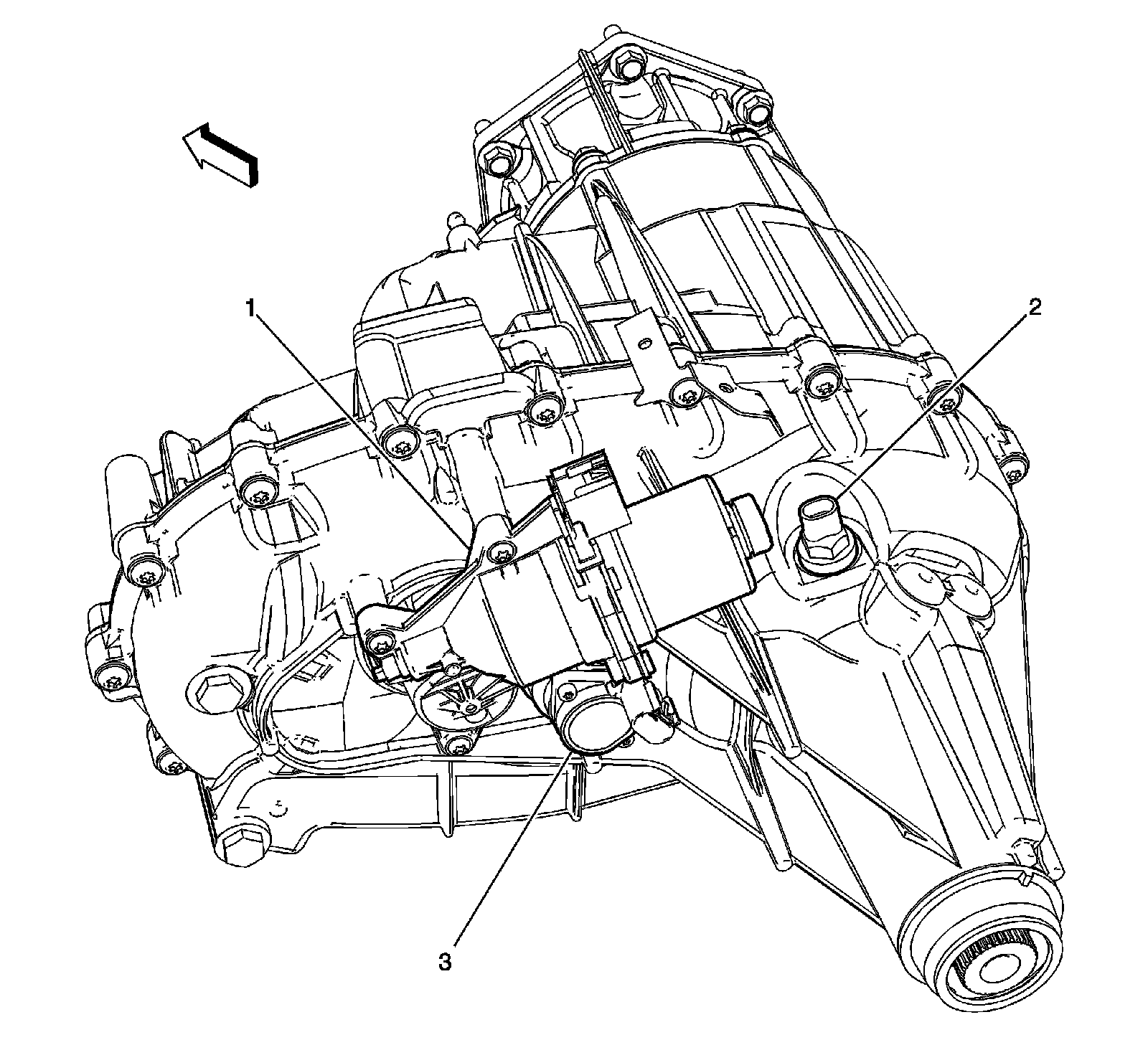

Transfer Case Components (NQH/NQF)

1 - Transfer Case Encoder Motor
2 - Vehicle Speed Sensor (VSS)
3 - Transfer Case 2/4 Wheel Drive Actuator Position Sensor (NQH)
