Electronic Brake Control Module: Diagrams

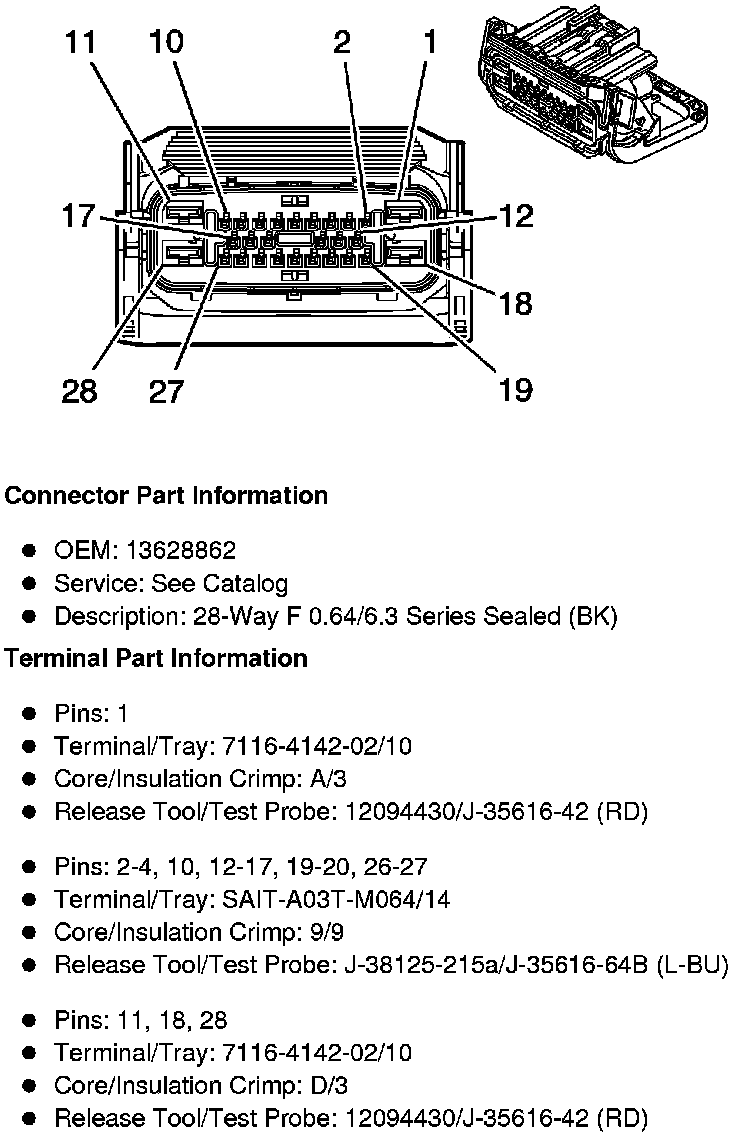

Component Connector End Views

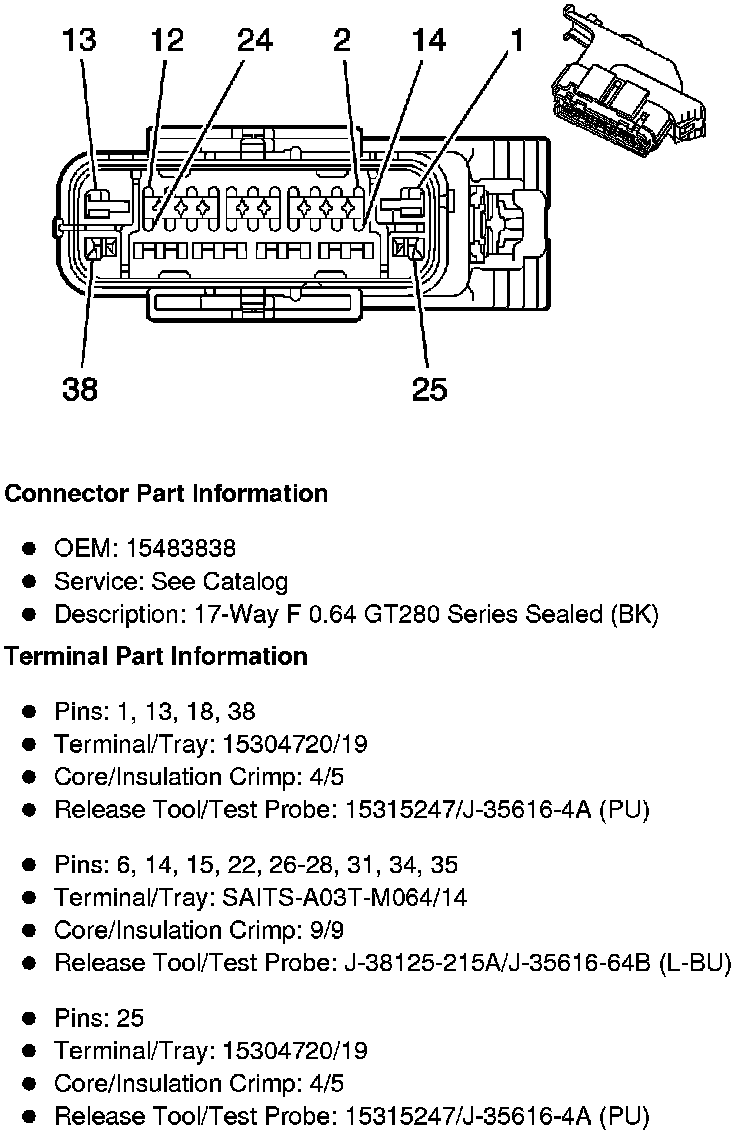

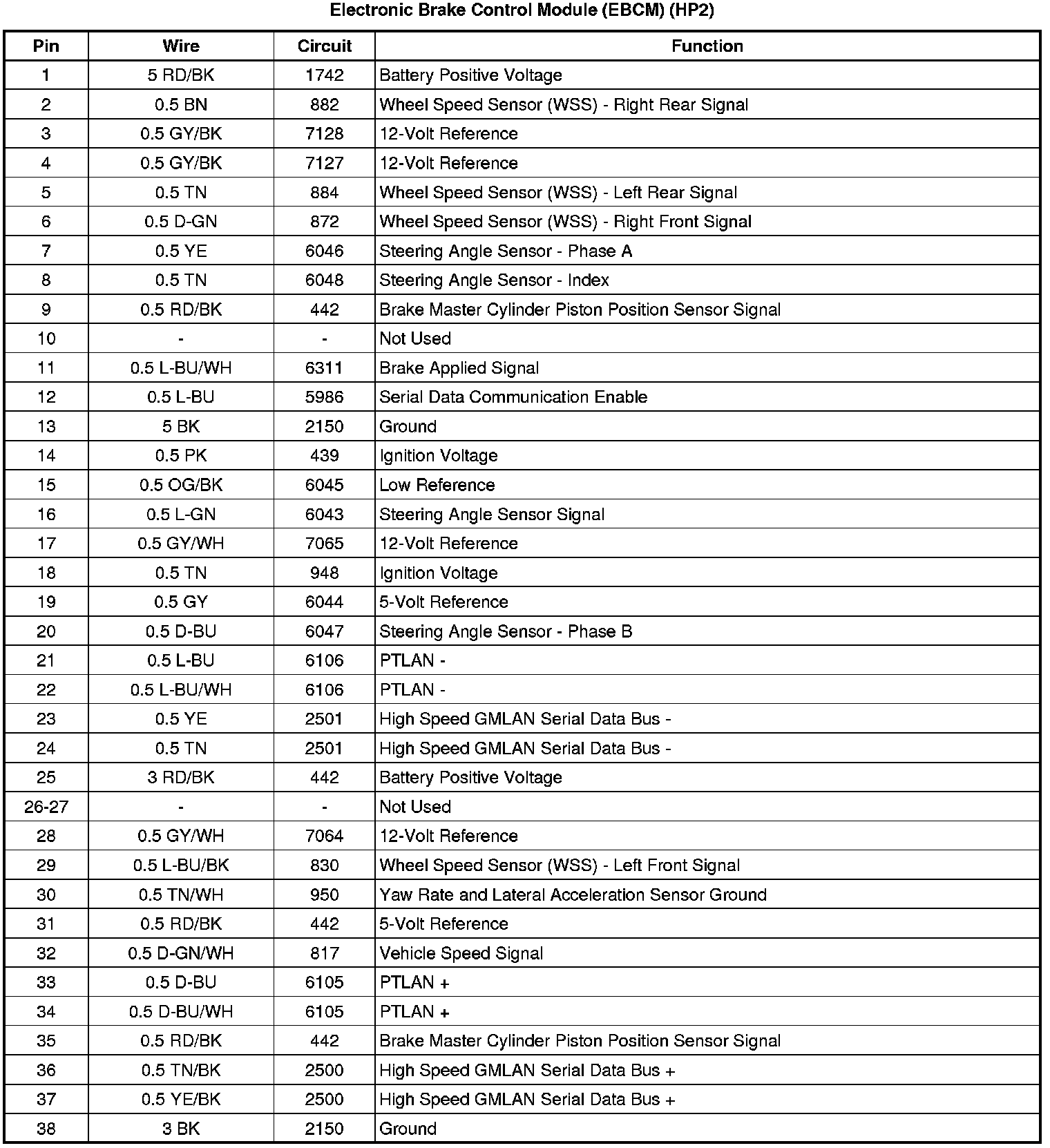

Electronic Brake Control Module (EBCM) (HP2)

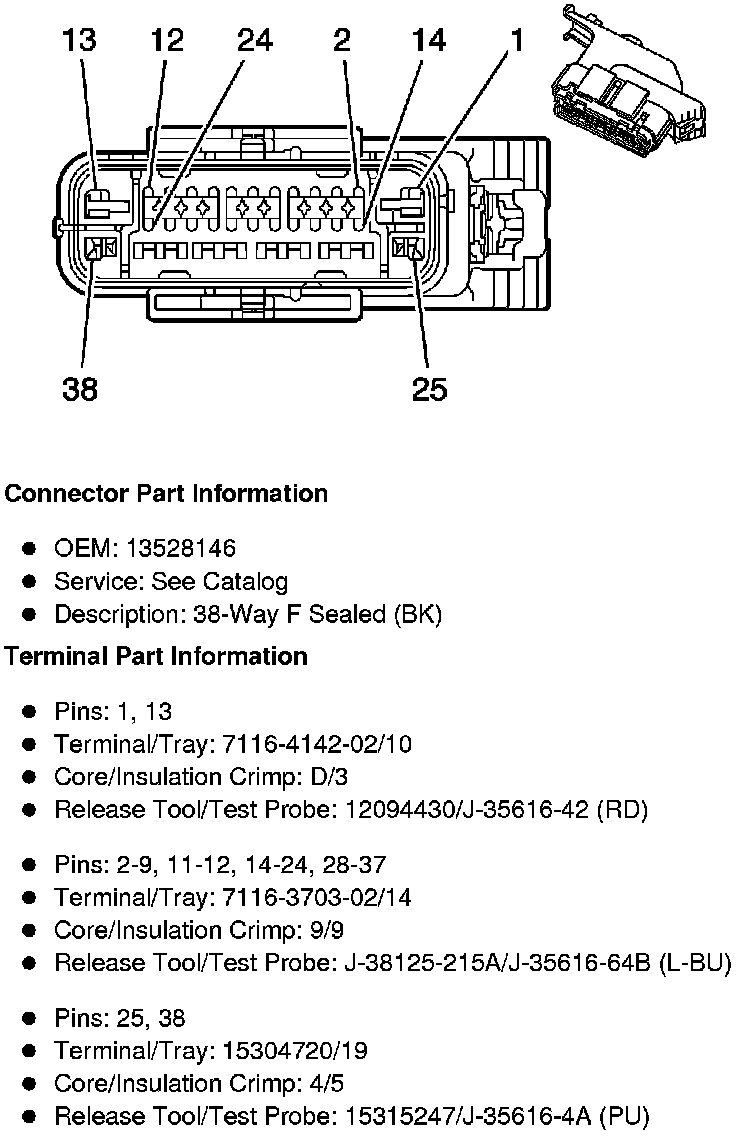

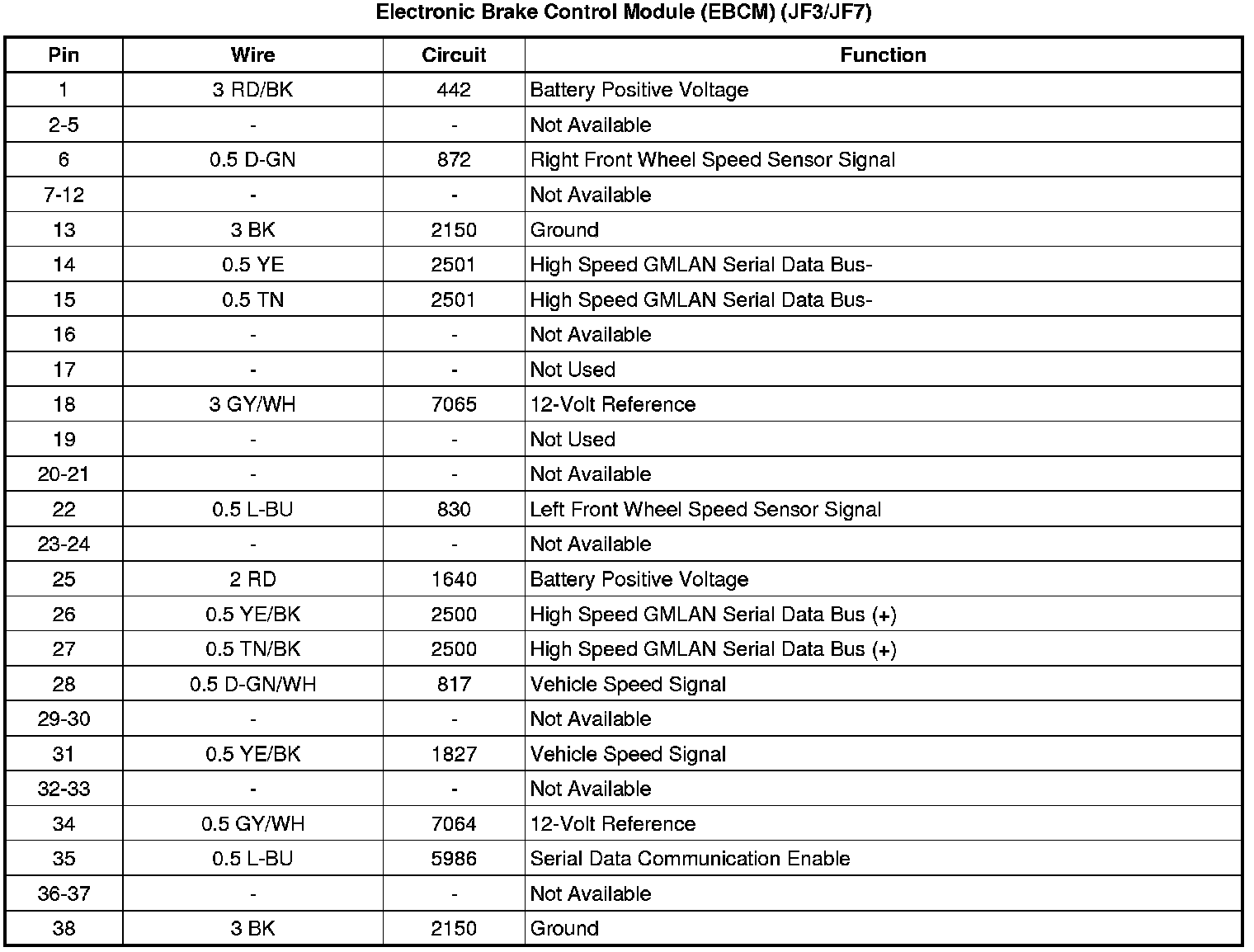

Electronic Brake Control Module (EBCM) (JF3/JF7)

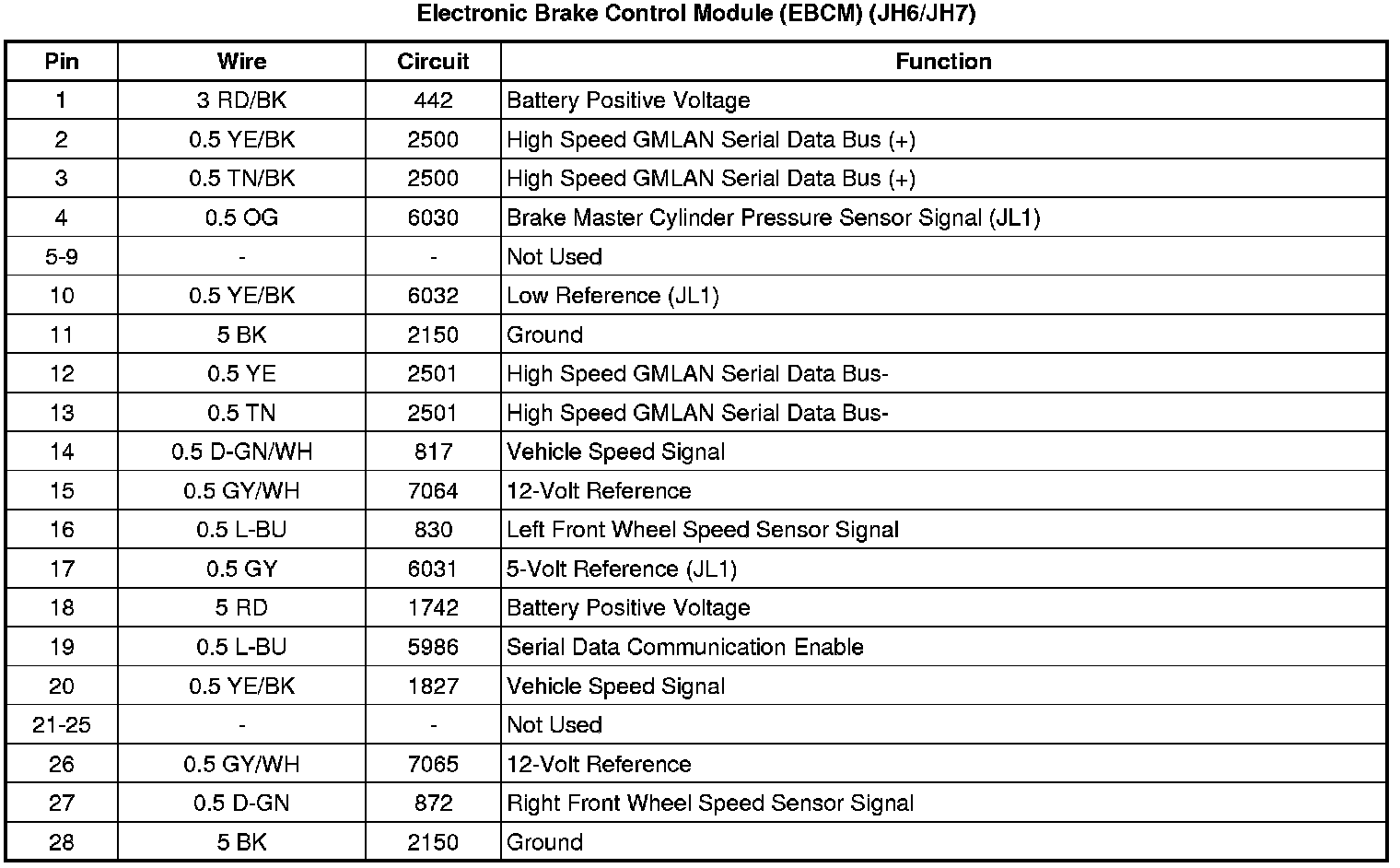

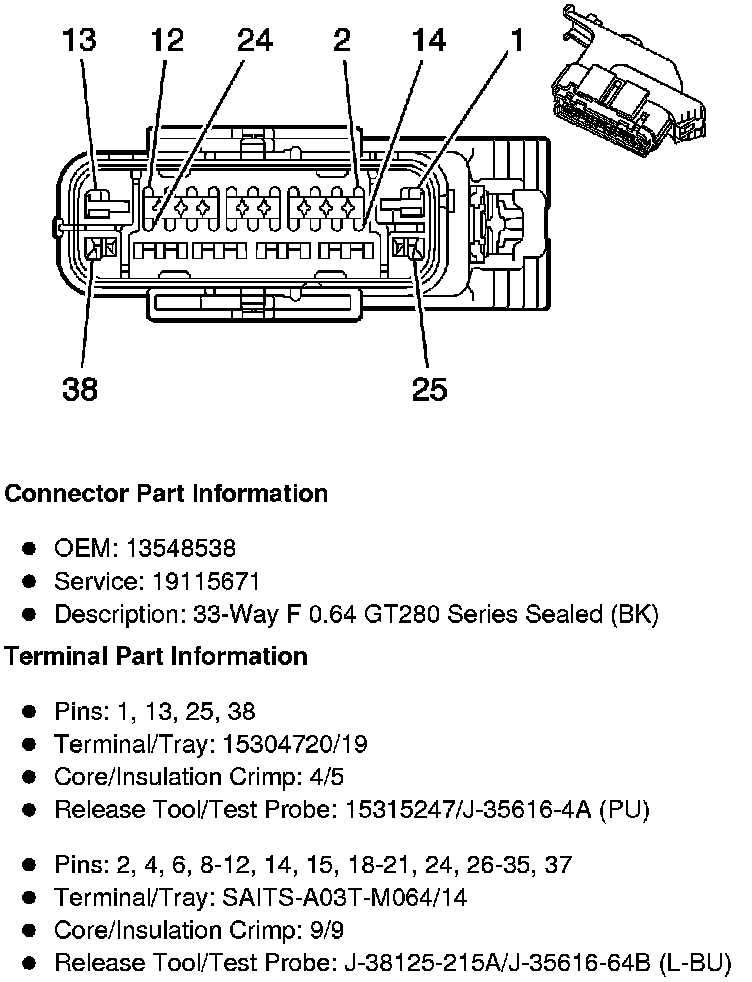

Electronic Brake Control Module (EBCM) (JH6/JH7)

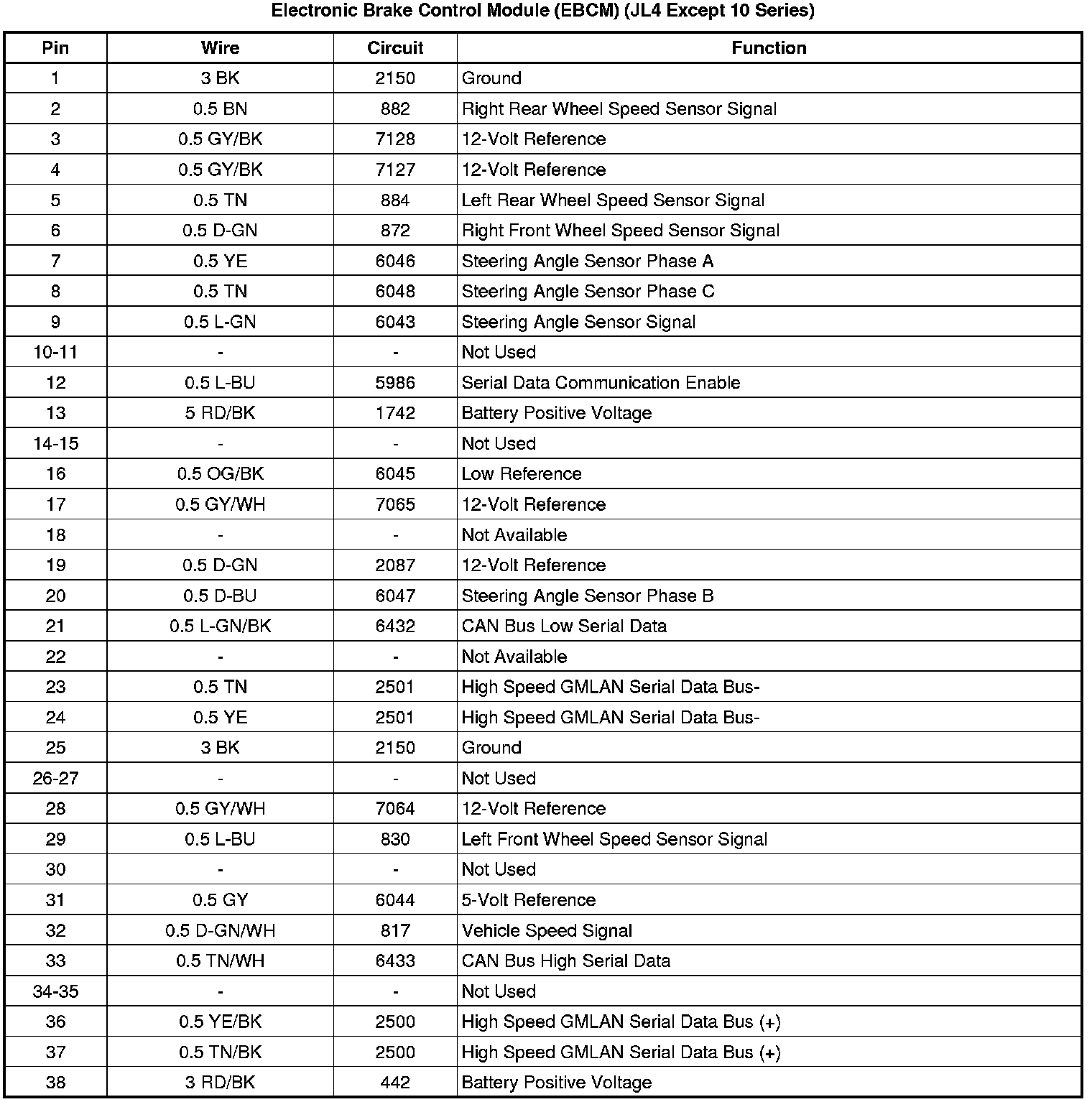

Electronic Brake Control Module (EBCM) (JL4 Except 10 Series)

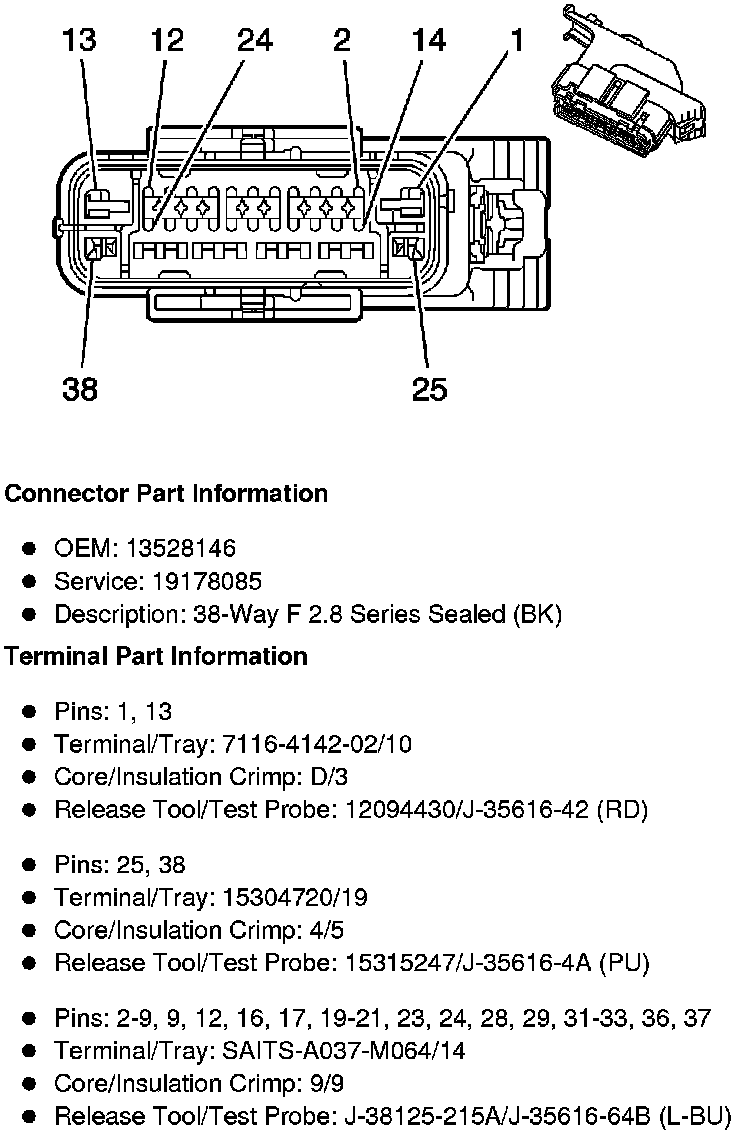

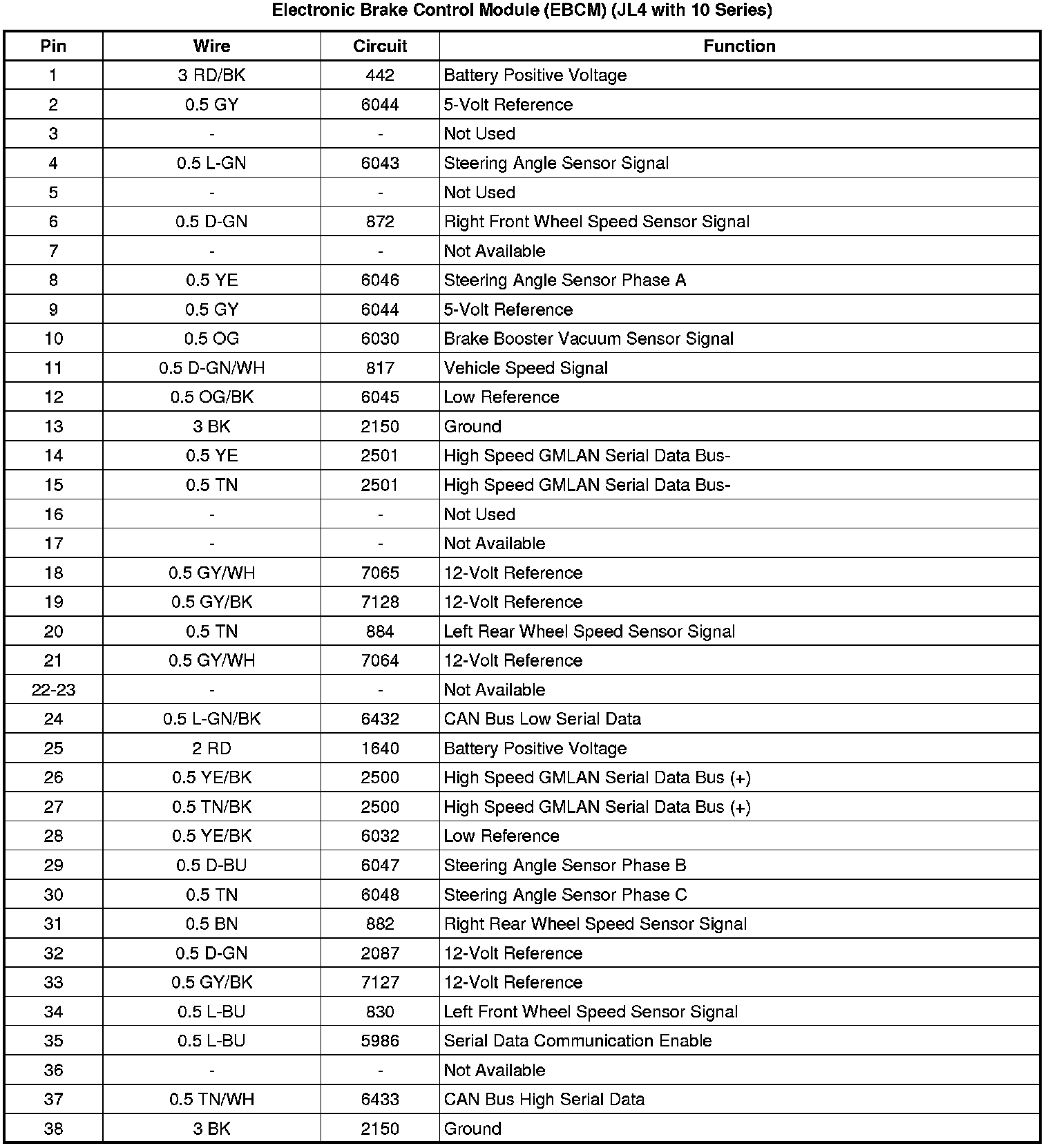

Electronic Brake Control Module (EBCM) (JL4 with 10 Series)
