Ignition Switch: Locations

Instrument Panel/Center Console Component Views

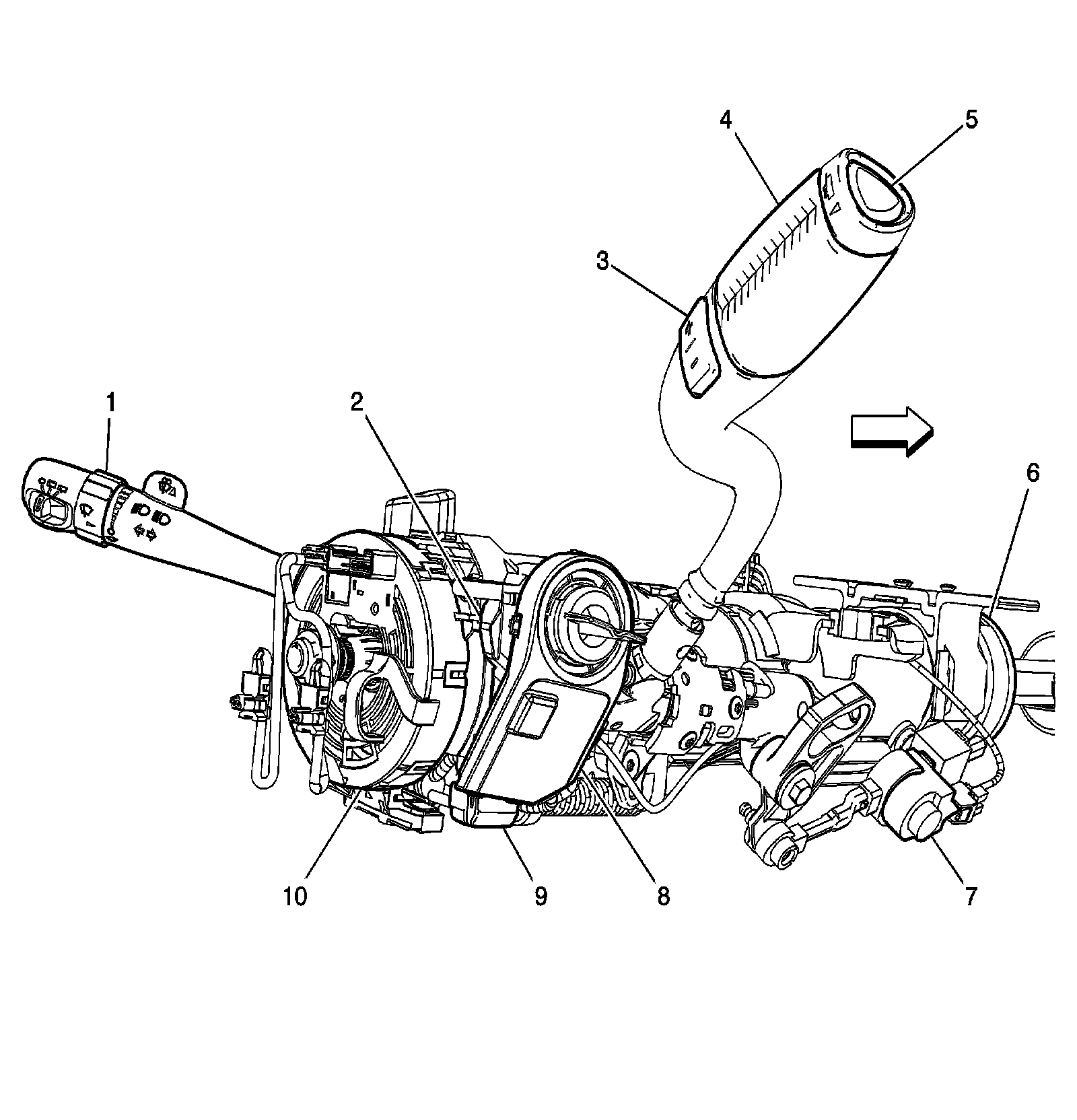

Steering Column Components




1 - Turn/Signal Multifunction Switch
2 - Ignition Lock Cylinder
3 - Driver Shift Request Switch (MYC/MYD/MW7)
4 - Automatic Transmission Shift Lever (M30/MYC/MYD/MW7)
5 - Tow/Haul Switch (M30/MYC/MYD/MW7)
6 - Steering Angle Sensor (JL4)
7 - Automatic Transmission Shift Lock Control Solenoid
8 - Theft Deterrent Module (TDM)
9 - Ignition Switch
10 - Inflatable Restraint Steering Wheel Module Coil

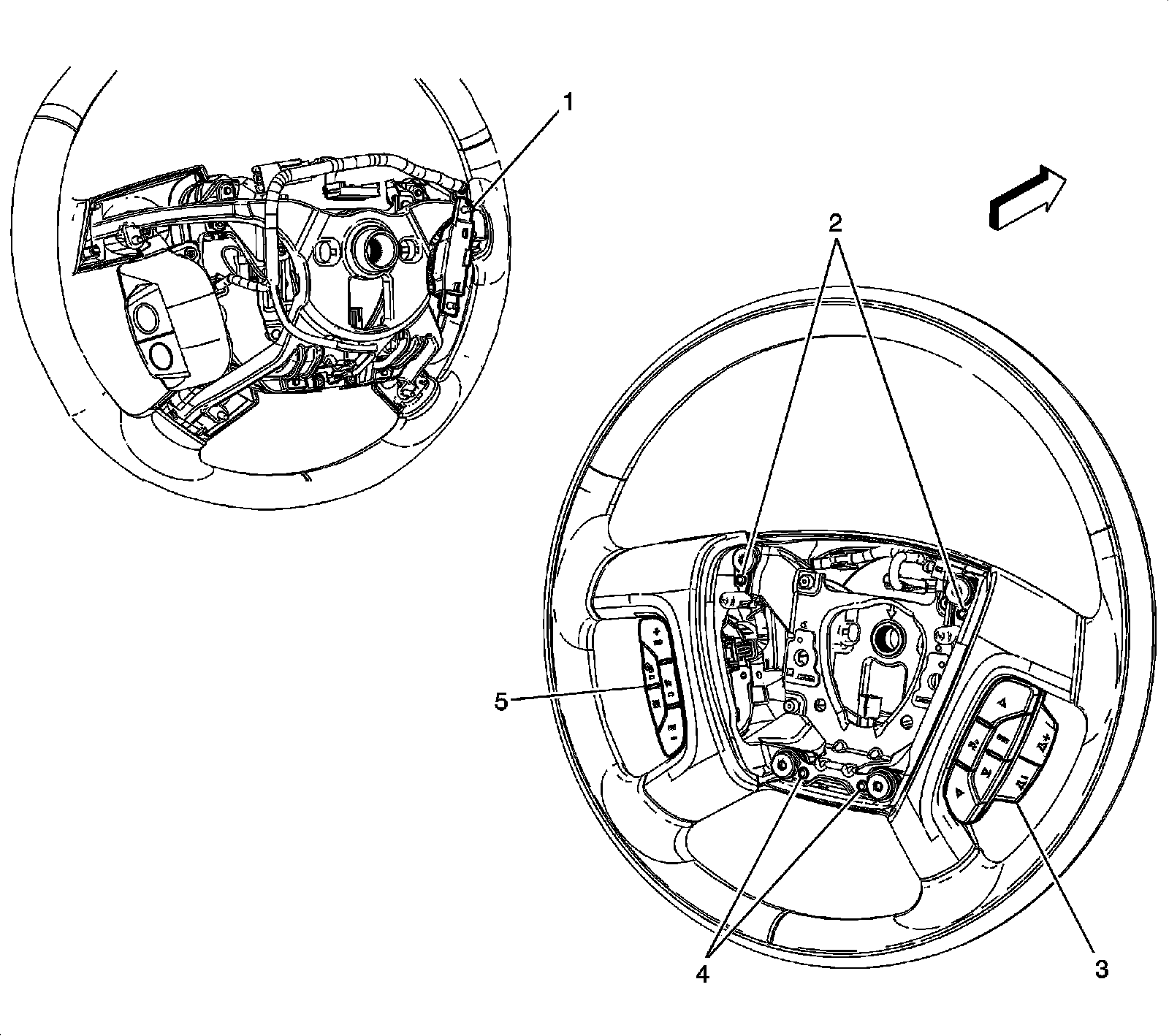

Steering Wheel Components

Steering Wheel Components:

1 - Heated Steering Wheel Control Module (KA9)
2 - Horn Switch
3 - Steering Wheel Control Switch - Right (UK3)
4 - Horn Switch
5 - Steering Wheel Control Switch - Left (K34/KA9)
6 - Heated Steering Wheel (KA9)
