Control Module: Diagrams



Component Connector End Views

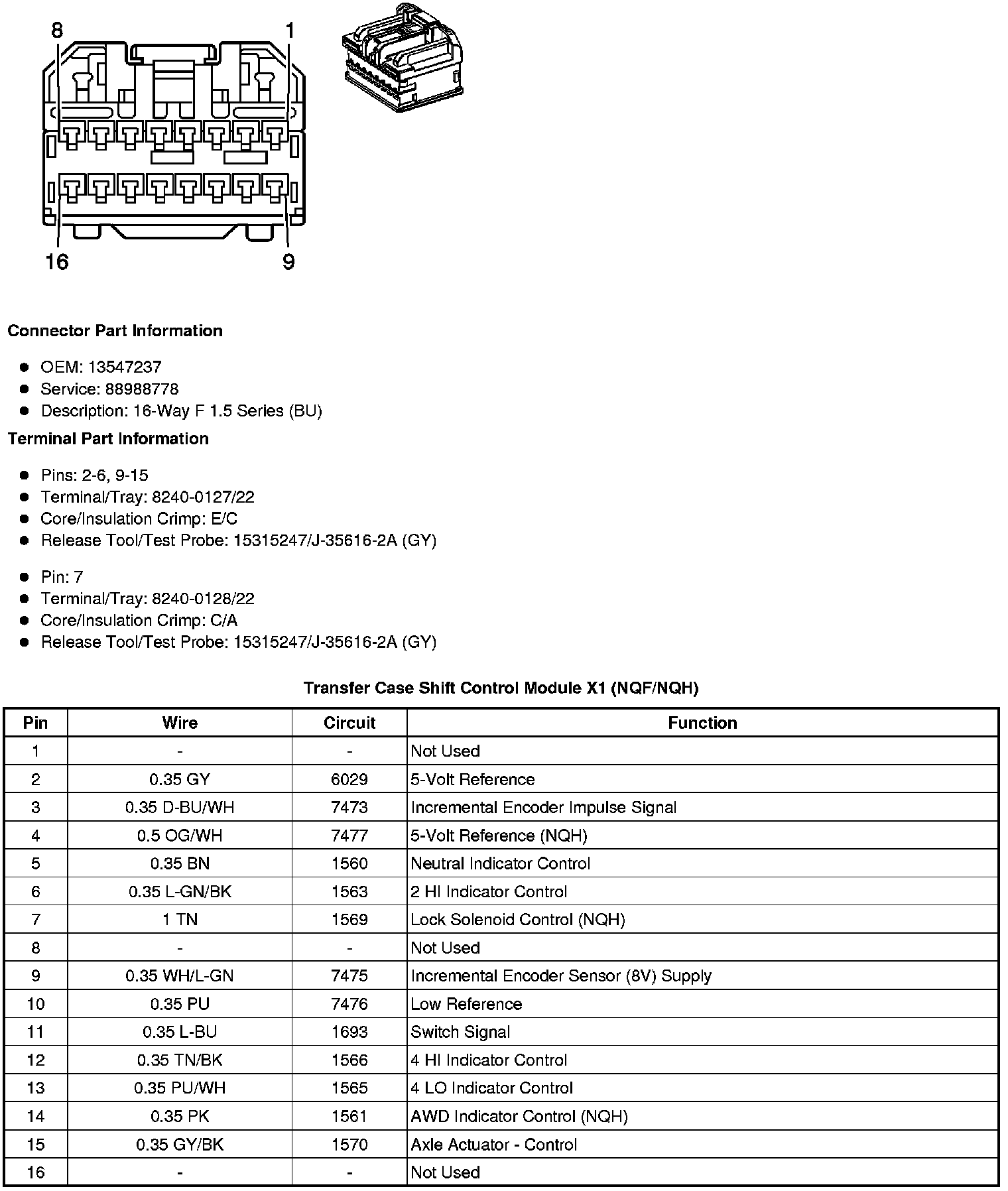

Transfer Case Shift Control Module X1 (NQF/NQH)

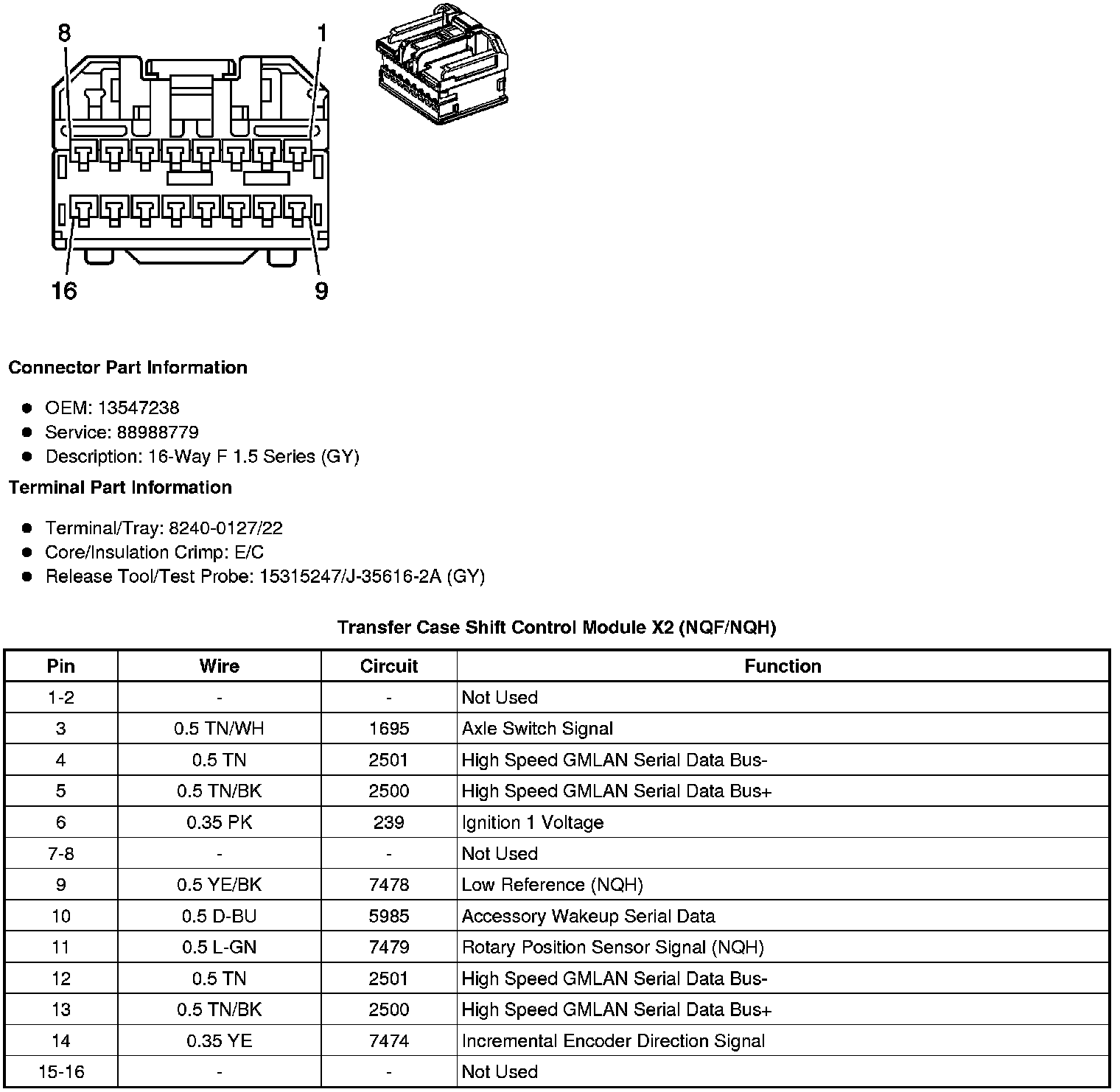

Transfer Case Shift Control Module X2 (NQF/NQH)

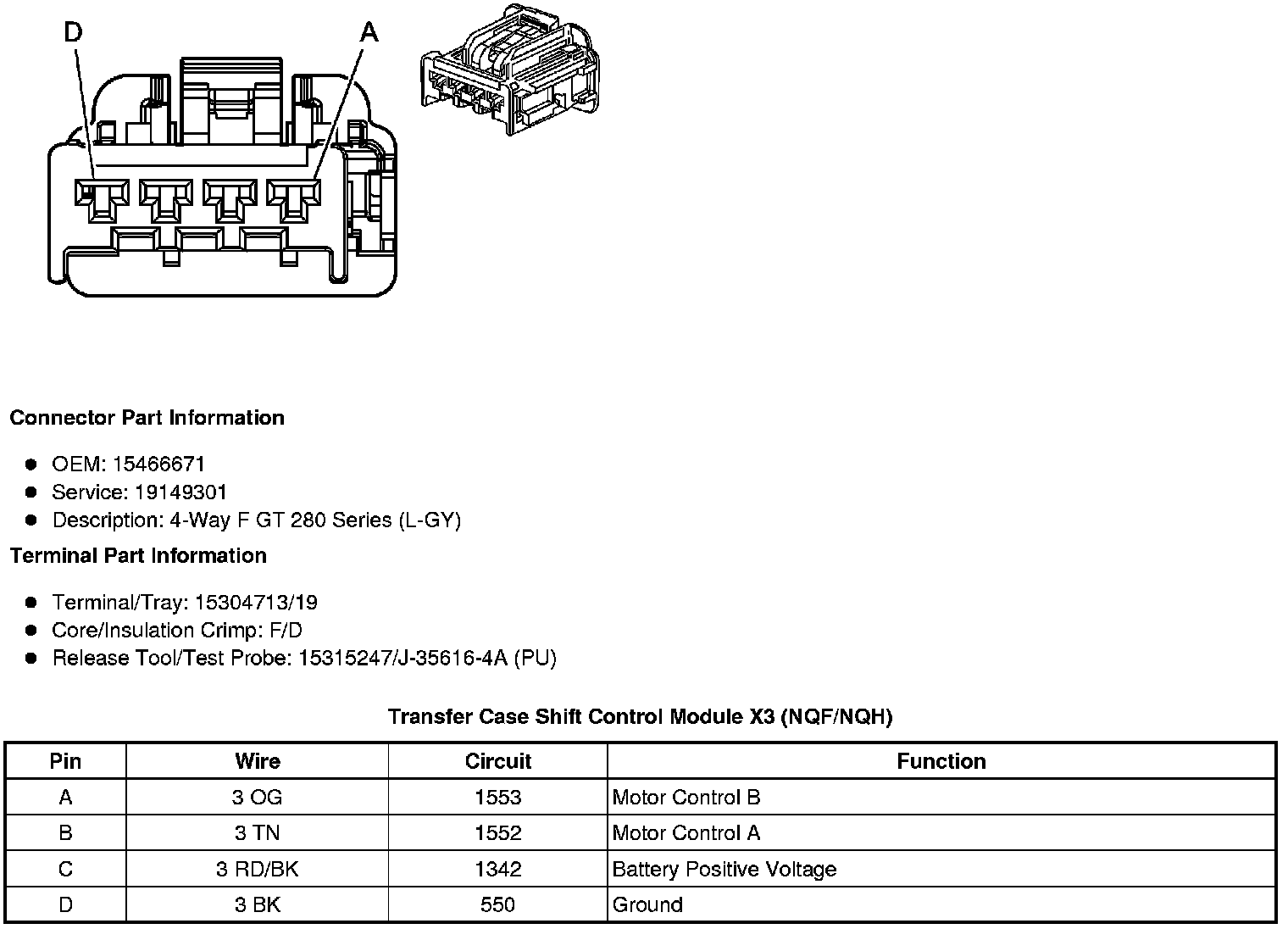

Transfer Case Shift Control Module X3 (NQF/NQH)
