Drive Motor Control Module: Diagrams




Component Connector End Views

Drive Motor Generator Battery Control Module X1 (HP2)

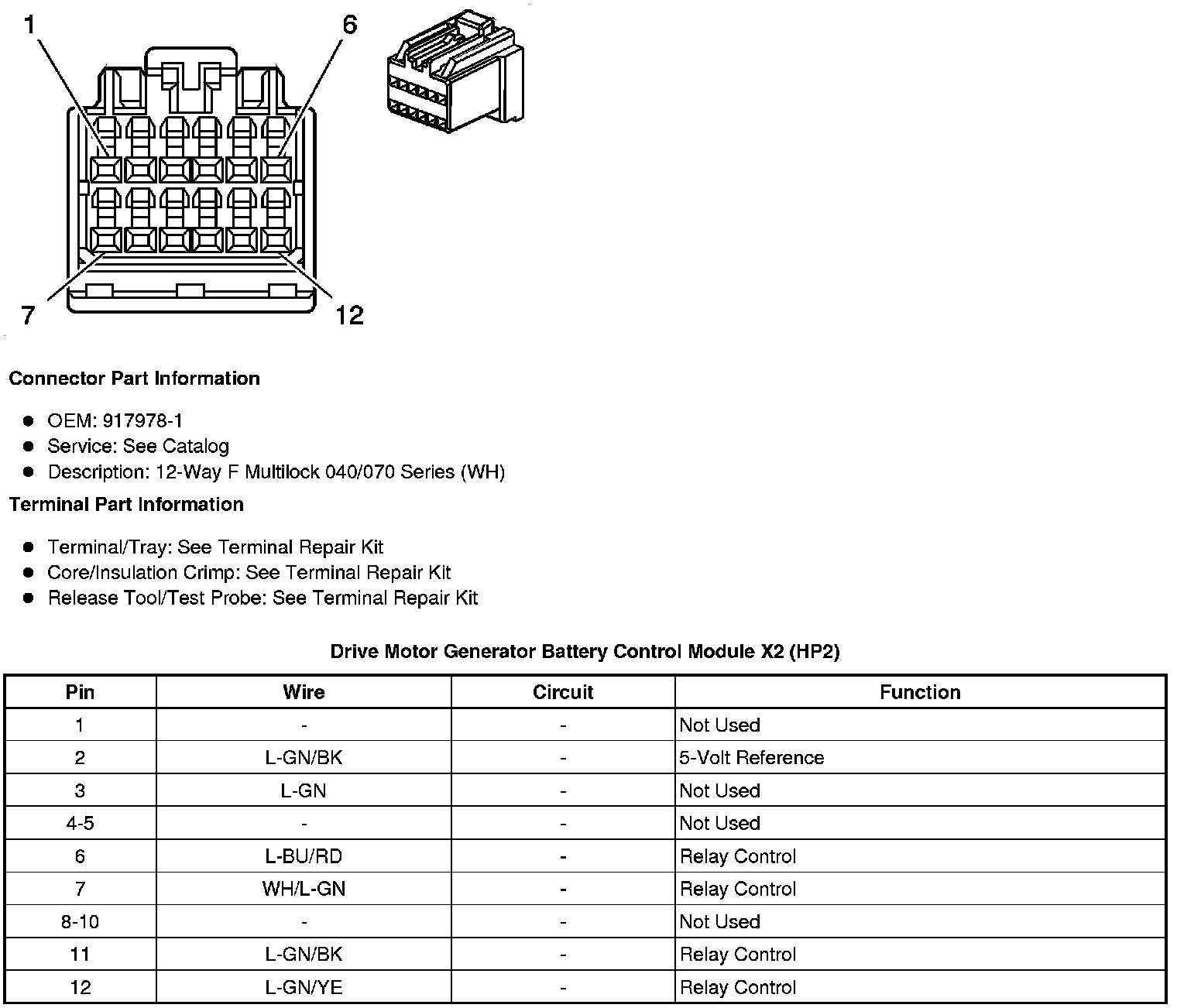

Drive Motor Generator Battery Control Module X2 (HP2)

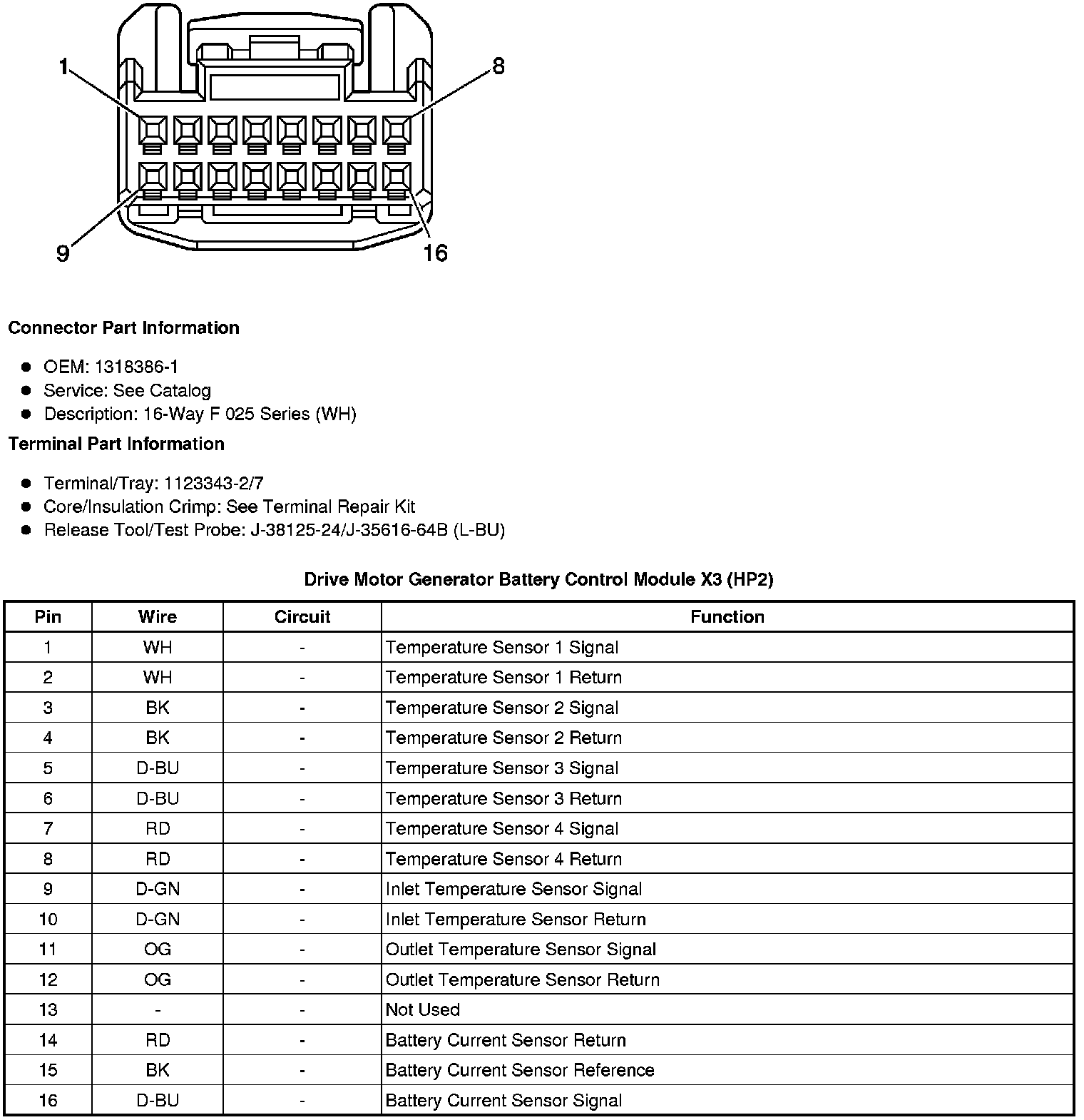

Drive Motor Generator Battery Control Module X3 (HP2)

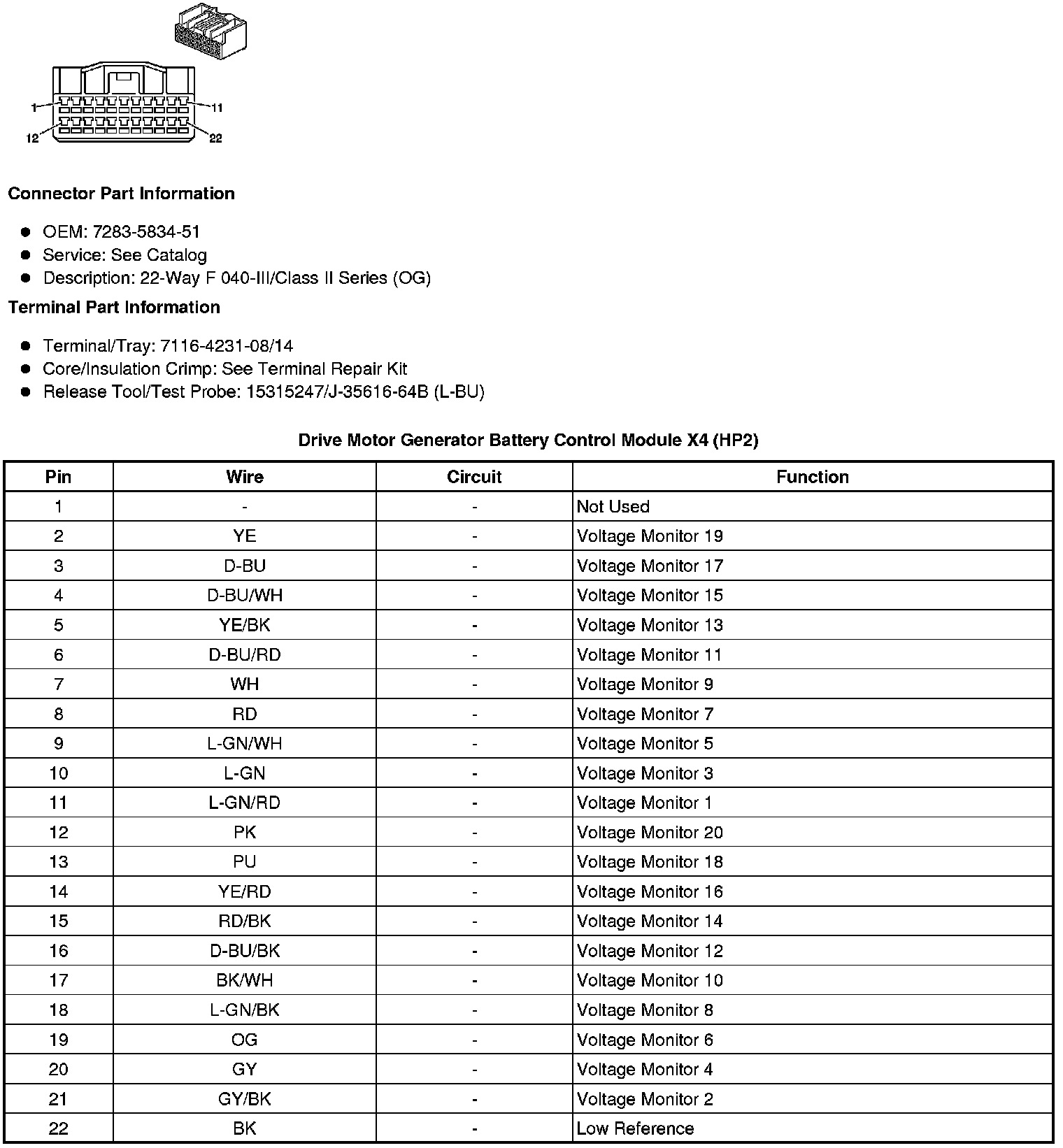

Drive Motor Generator Battery Control Module X4 (HP2)





Drive Motor Generator Battery Control Module X5 (HP2)
