Drive Motor Temperature Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

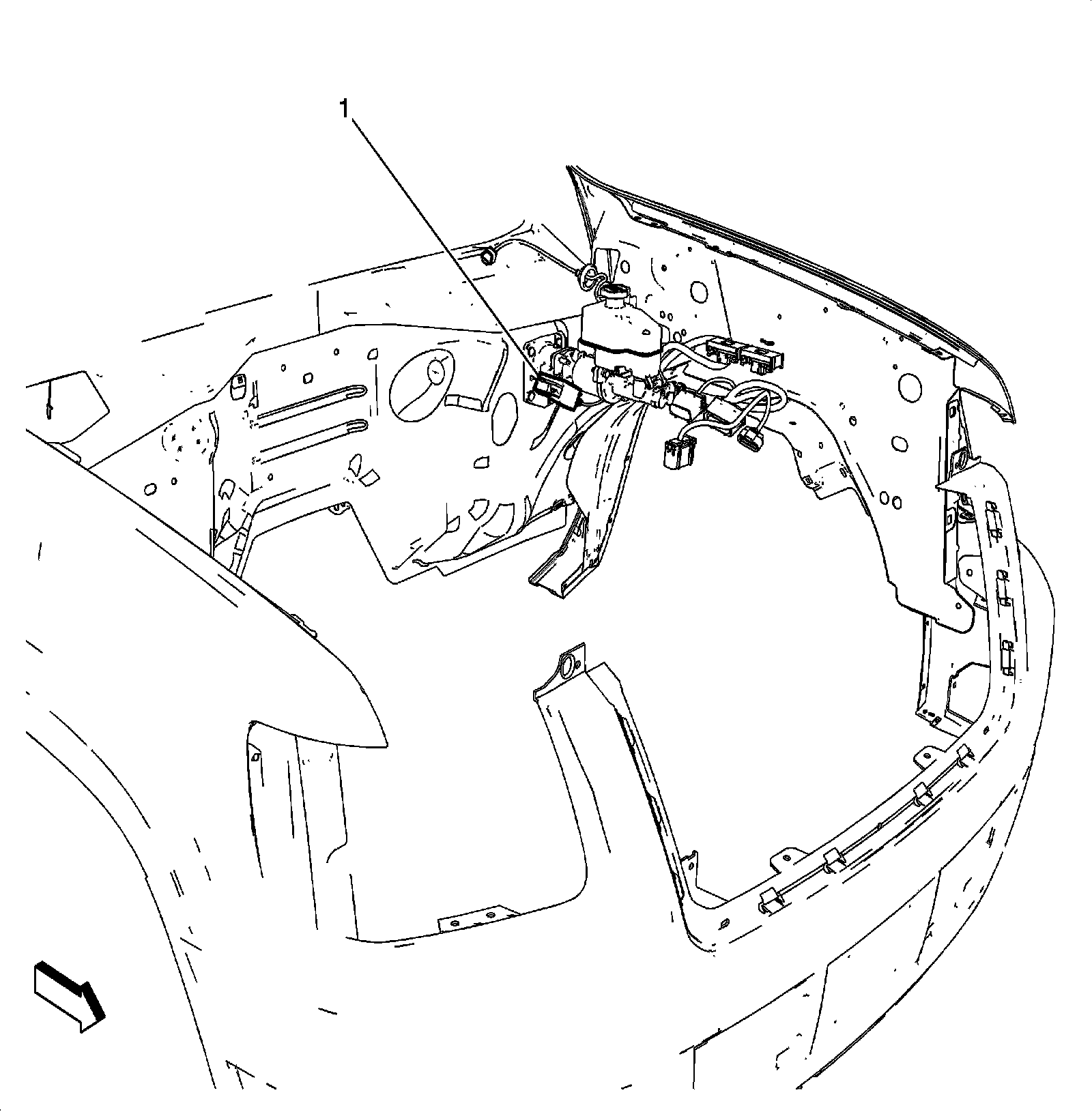

Brake Master Cylinder Piston Position Sensor (HP2)




1 - Brake Master Cylinder Piston Position Sensor

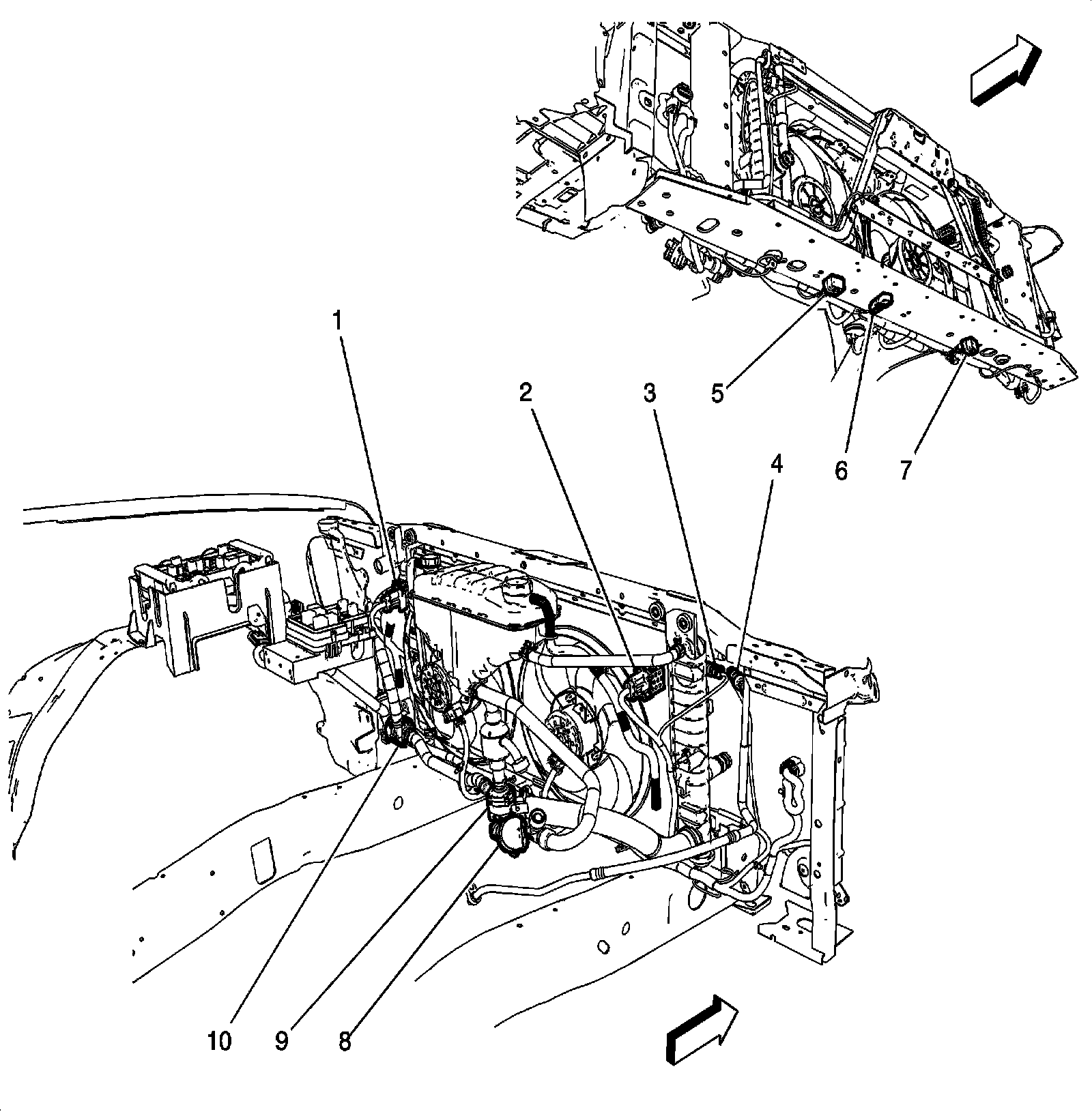

Front of Engine Compartment Components (HP2)




1 - Engine Cooling Fan Resistor -Left
2 - Engine Cooling Fan Resistor -Right
3 - Generator Control Module Temperature Sensor
4 - A/C Low Pressure Sensor
5 - Inflatable Restraint Front End Sensor -Right
6 - High Voltage Circuit Impact Detection Sensor
7 - Inflatable Restraint Front End Sensor -Left
8 - Heater Coolant Pump
9 - Generator Control Module Coolant Pump -Right
10 - Generator Control Module Coolant Pump -Left
