Disassembled Views

Disassembled Views

Camshaft Timing Components




1 - Primary Timing Chain Tensioner Bolt
2 - Left Secondary Timing Chain Shoe Bolt
3 - Right Secondary Timing Chain Tensioner
4 - Right Secondary Timing Chain Tensioner Gasket
5 - Right Secondary Timing Chain Shoe
6 - Secondary Timing Chain
7 - Camshaft Position Actuator Bolt
8 - Exhaust Camshaft Position Actuator
9 - Camshaft Position Actuator Thrust Washer
10 - Intake Camshaft Position Actuator
11 - Right Secondary Timing Chain Guide
12 - Left Camshaft Intermediate Drive Shaft Sprocket
13 - Camshaft Intermediate Drive Shaft Sprocket Bolt
14 - Left Secondary Timing Chain Shoe
15 - Left Secondary Timing Chain Tensioner Gasket
16 - Left Secondary Timing Chain Tensioner
17 - Left Secondary Timing Chain Guide
18 - Lower Primary Timing Chain Guide
19 - Lower Primary Timing Chain Guide Bolt
20 - Crankshaft Sprocket
21 - Primary Timing Chain
22 - Right Camshaft Intermediate Drive Shaft Sprocket
23 - Upper Primary Timing Chain Guide
24 - Primary Timing Chain Tensioner Gasket
25 - Primary Timing Chain Tensioner

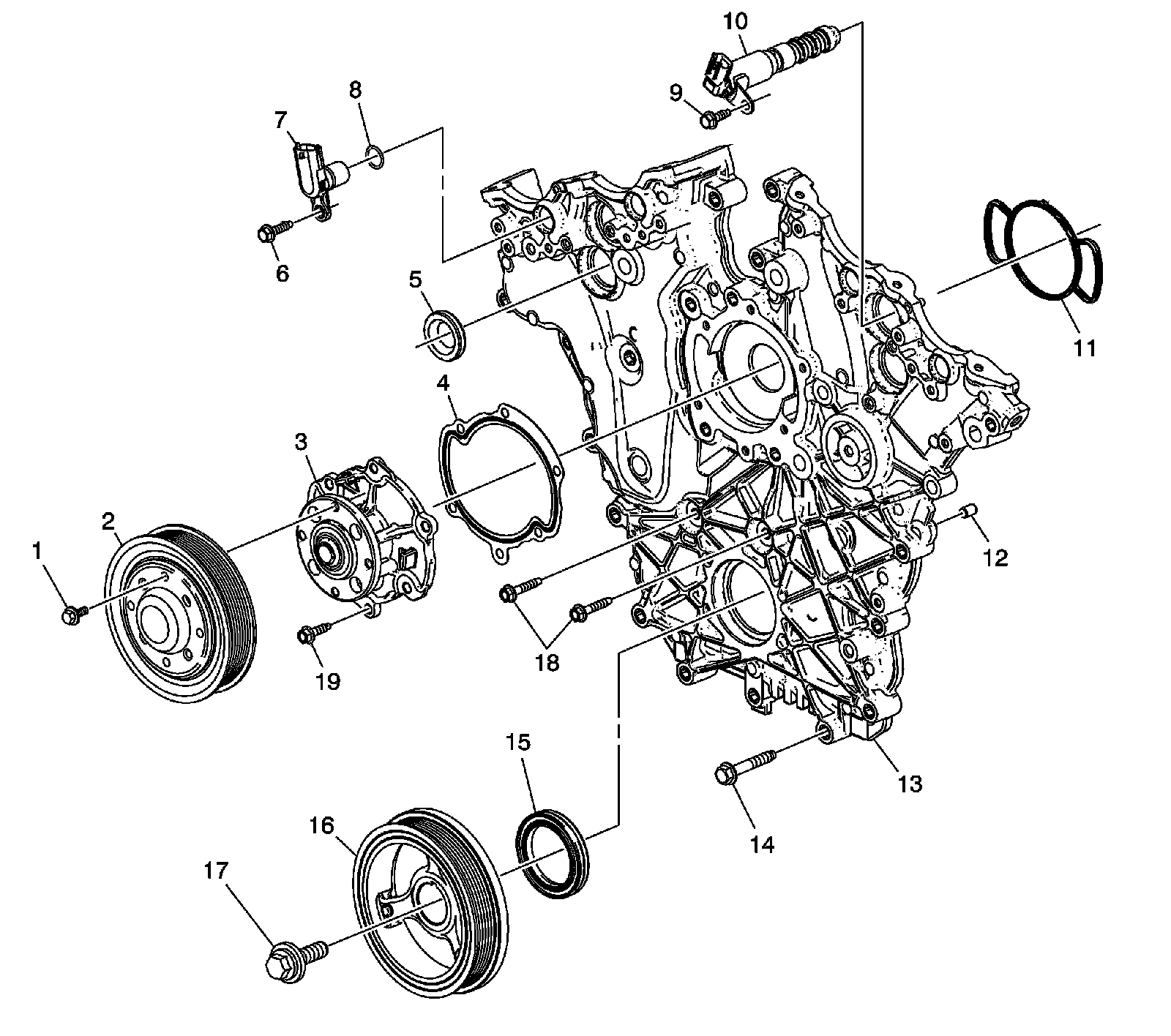

Engine Front Cover




1 - Water Pump Pulley Bolt
2 - Water Pump Pulley
3 - Water Pump Assembly
4 - Water Pump Pulley Gasket
5 - Camshaft Position Actuator Solenoid Valve Seal
6 - Camshaft Position Sensor Bolt
7 - Camshaft Position Sensor
8 - Camshaft Position Sensor O-ring Seal
9 - Camshaft Position Actuator Solenoid Valve Bolt
10 - Camshaft Position Actuator Solenoid Valve
11 - Engine Front Cover Gasket
12 - Engine Front Cover Locating Pin
13 - Engine Front Cover
14 - Engine Front Cover Bolt
15 - Engine Front Cover Seal
16 - Crankshaft Balancer
17 - Crankshaft Balancer Bolt
18 - Engine Front Cover Bolt
19 - Water Pump Bolt
