Disassembled Views

Disassembled Views

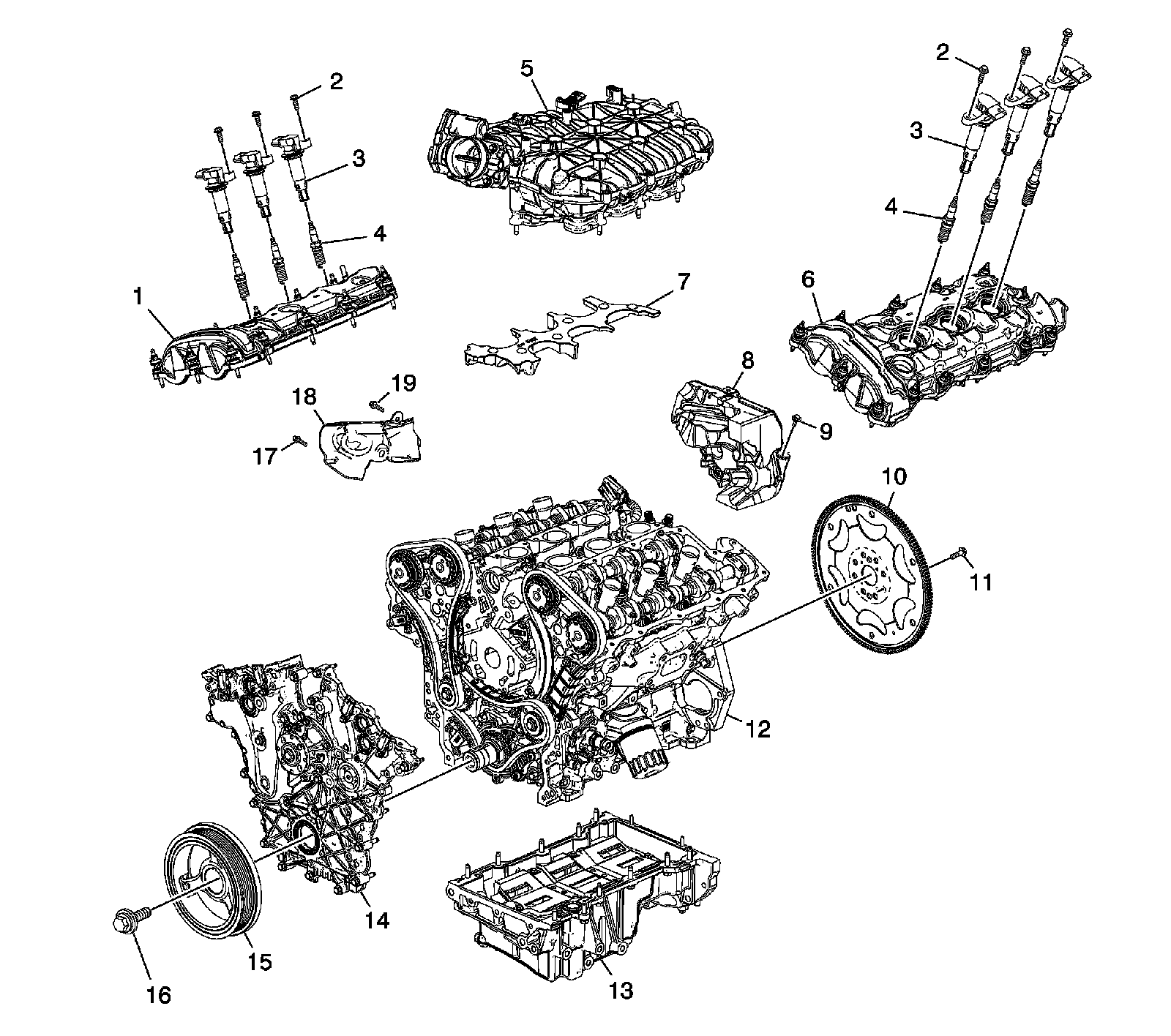

Engine Covers and Component Assemblies (1 of 2) (LF1)




1 - Right Camshaft Cover Assembly
2 - Ignition Coil Bolt
3 - Ignition Coil
4 - Spark Plug
5 - Intake Manifold Assembly
6 - Left Camshaft Cover Assembly
7 - Fuel Rail Noise Shield
8 - Fuel Pump Cover
9 - Fuel Pump Cover Bolt
10 - Engine Flywheel
11 - Engine Flywheel Bolt
12 - Engine Assembly
13 - Oil Pan Assembly
14 - Engine Front Cover Assembly
15 - Crankshaft Balancer
16 - Crankshaft Balancer Bolt
17 - Crankshaft Position Sensor Heat Shield Bolt - Large
18 - Crankshaft Position Sensor Heat Shield
19 - Crankshaft Position Sensor Heat Shield Bolt - Small

Engine Covers and Component Assemblies (2 of 2) (LF1)




1 - Water Outlet Bolt
2 - Water Outlet
3 - Water Outlet O-ring
4 - Water Outlet Seal
5 - Knock Sensor Bolt
6 - Knock Sensor
7 - Engine Coolant Heater Assembly
8 - Crankshaft Position Sensor Bolt
9 - Crankshaft Position Sensor
10 - Crankshaft Position Sensor O-ring
11 - Right Cylinder Head Assembly
12 - Right Cylinder Head Gasket
13 - Lower Fuel Rail Noise Shield
14 - Engine Cooling Thermostat Gasket
15 - Engine Cooling Thermostat
16 - Engine Cooling Thermostat Housing
17 - Engine Cooling Thermostat Bolt - Short
18 - Engine Cooling Thermostat Housing Bolt - Long
19 - Fuel Feed Pipe Assembly
20 - Fuel Feed Pipe Assembly Bolt
21 - Fuel Feed Intermediate Pipe Assembly
22 - Fuel Pump Gasket
23 - Fuel Pump O-ring Seal
24 - Fuel Pump
25 - Fuel Pump Bolt
26 - Left Cylinder Head Assembly
27 - Left Cylinder Head Gasket
28 - Oil Level Indicator
29 - Oil Level Indicator Handle O-ring
30 - Oil Level Indicator Tube Bolt
31 - Oil Level Indicator Tube
32 - Oil Level Indicator Tube O-ring
33 - Oil Filter Adapter Assembly
34 - Engine Short Block Assembly
35 - Oil Pump Assembly
36 - Timing Drive Assembly

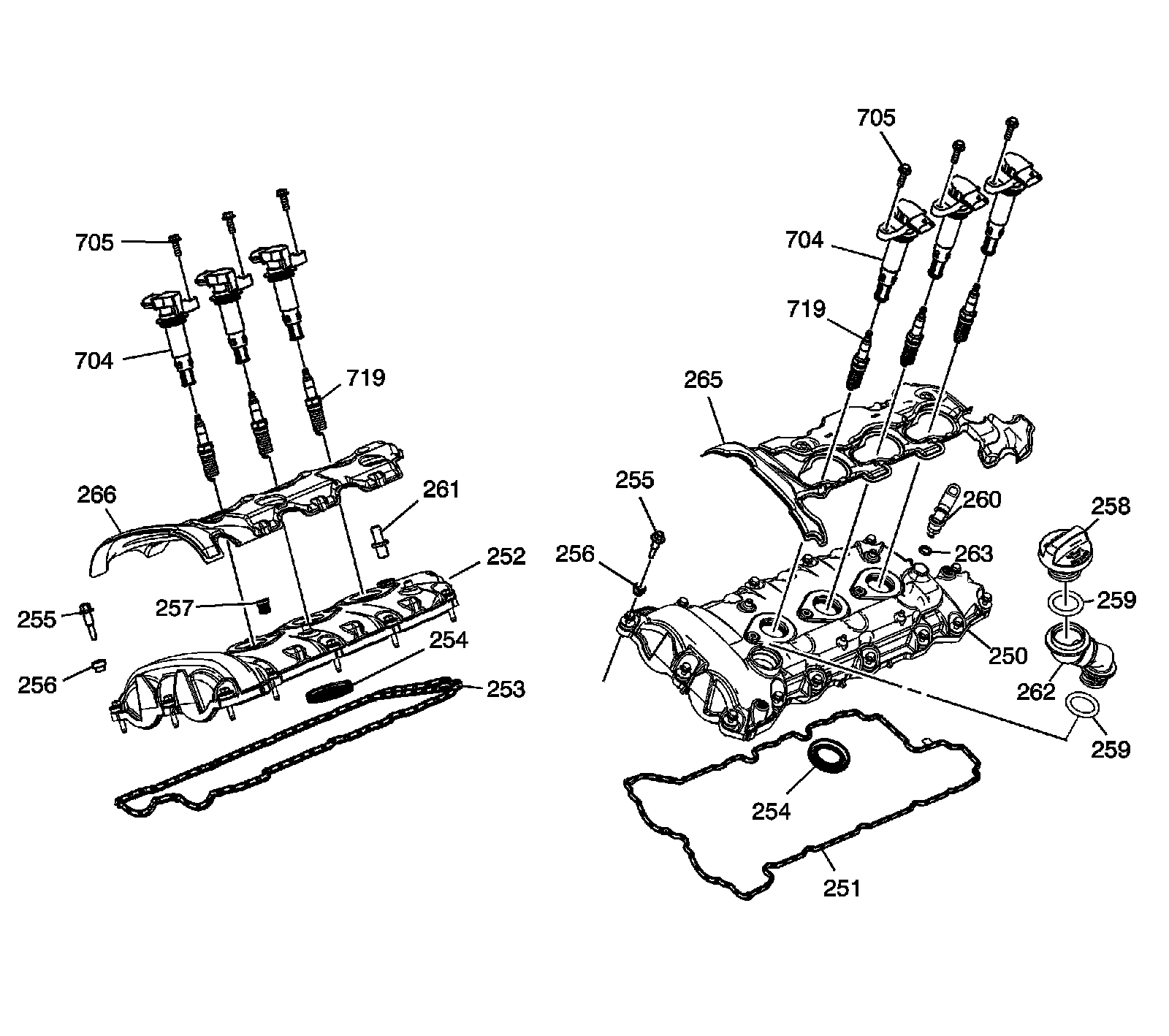

Camshaft Cover Assembly




250 - Left Camshaft Cover
251 - Left Camshaft Cover Gasket
252 - Right Camshaft Cover
253 - Right Camshaft Cover Gasket
254 - Camshaft Cover Spark Plug Port Seal
254 - Camshaft Cover Spark Plug Port Seal
255 - Camshaft Cover Bolt
255 - Camshaft Cover Bolt
256 - Camshaft Cover Bolt Insulator
256 - Camshaft Cover Bolt Insulator
257 - Ignition Coil Bolt Thread Insert
258 - Oil Fill Cap
259 - Oil Fill O-ring
259 - Oil Fill O-ring
260 - Left Camshaft Cover PCV Fitting
261 - Right Camshaft Cover PCV Fitting Orifice
262 - Oil Fill Tube
263 - Left Camshaft Cover PCV Fitting O-ring
265 - Left Camshaft Housing Cover Insulator
266 - Right Camshaft Housing Cover Insulator
704 - Ignition Coil
704 - Ignition Coil
705 - Ignition Coil Bolt
705 - Ignition Coil Bolt
719 - Spark Plug
719 - Spark Plug

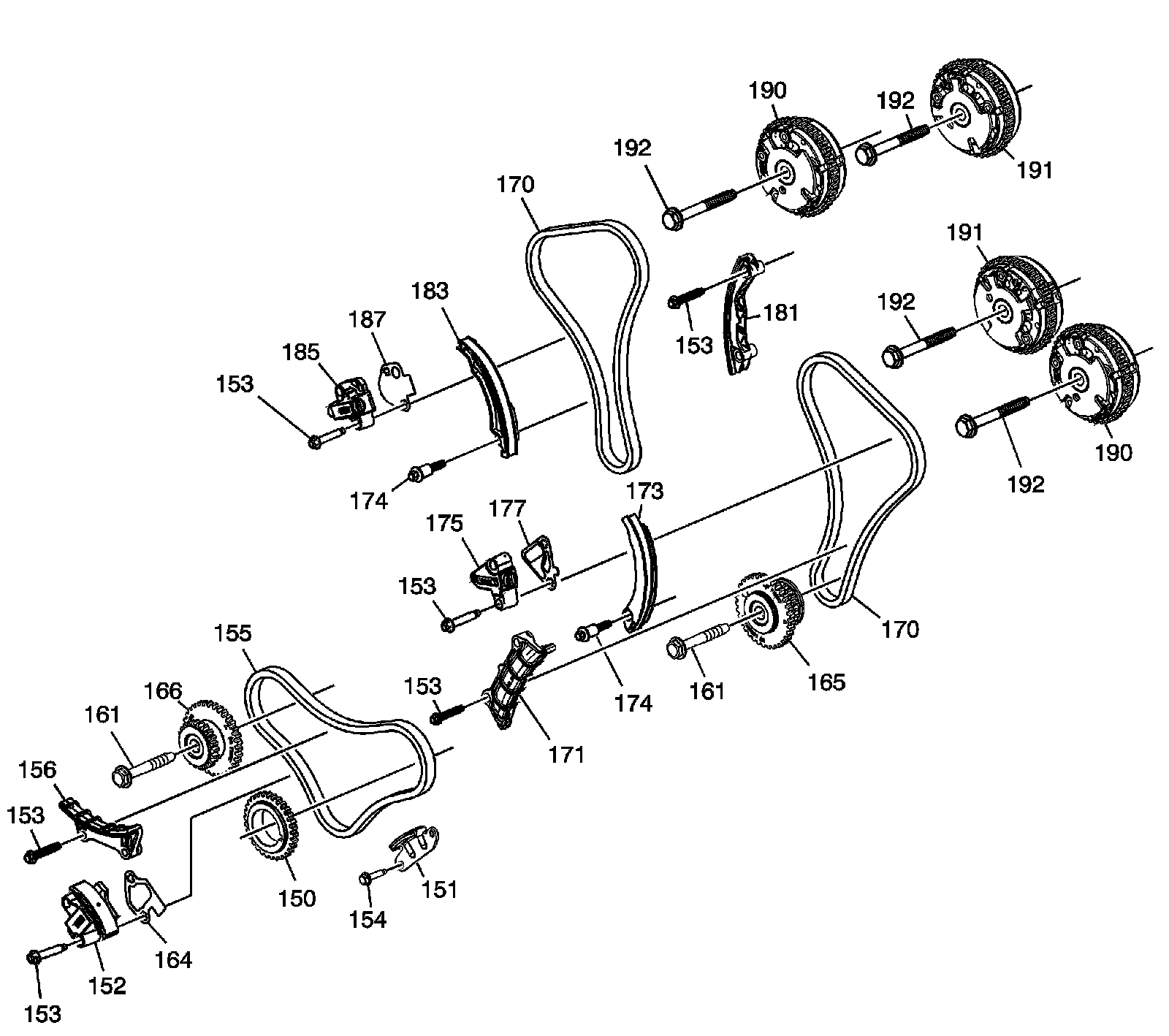

Camshaft Timing Components




1 - Primary Timing Chain Tensioner Bolt
2 - Left Secondary Timing Chain Shoe Bolt
3 - Right Secondary Timing Chain Tensioner
4 - Right Secondary Timing Chain Tensioner Gasket
5 - Right Secondary Timing Chain Shoe
6 - Secondary Timing Chain
7 - Camshaft Position Actuator Bolt
8 - Exhaust Camshaft Position Actuator
9 - Camshaft Position Actuator Thrust Washer
10 - Intake Camshaft Position Actuator
11 - Right Secondary Timing Chain Guide
12 - Left Camshaft Intermediate Drive Shaft Sprocket
13 - Camshaft Intermediate Drive Shaft Sprocket Bolt
14 - Left Secondary Timing Chain Shoe
15 - Left Secondary Timing Chain Tensioner Gasket
16 - Left Secondary Timing Chain Tensioner
17 - Left Secondary Timing Chain Guide
18 - Lower Primary Timing Chain Guide
19 - Lower Primary Timing Chain Guide Bolt
20 - Crankshaft Sprocket
21 - Primary Timing Chain
22 - Right Camshaft Intermediate Drive Shaft Sprocket
23 - Upper Primary Timing Chain Guide
24 - Primary Timing Chain Tensioner Gasket
25 - Primary Timing Chain Tensioner
