Disassembled Views




Disassembled Views

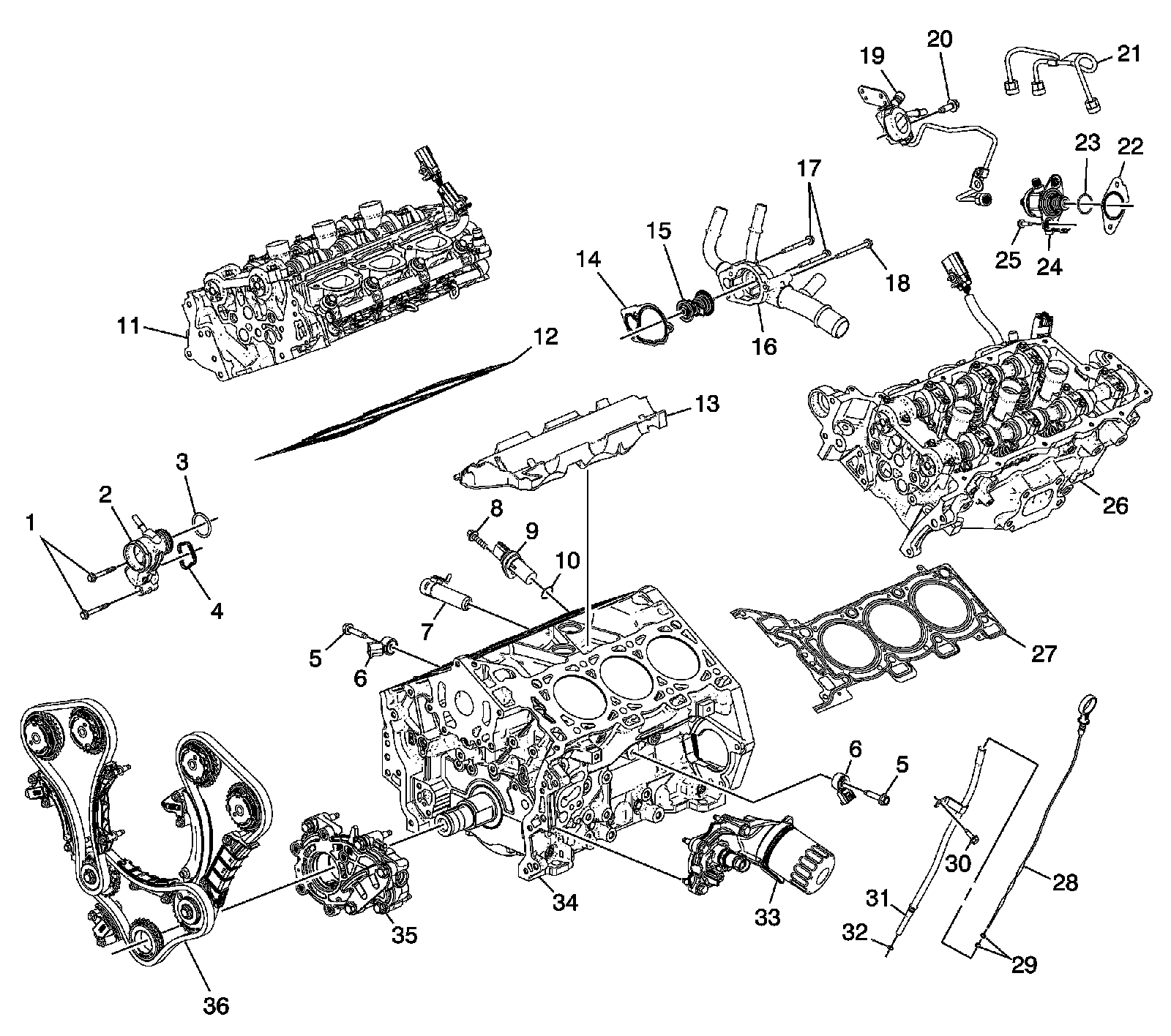

Engine Covers and Component Assemblies (2 of 2) (LF1)




1 - Water Outlet Bolt
2 - Water Outlet
3 - Water Outlet O-ring
4 - Water Outlet Seal
5 - Knock Sensor Bolt
6 - Knock Sensor
7 - Engine Coolant Heater Assembly
8 - Crankshaft Position Sensor Bolt
9 - Crankshaft Position Sensor
10 - Crankshaft Position Sensor O-ring
11 - Right Cylinder Head Assembly
12 - Right Cylinder Head Gasket
13 - Lower Fuel Rail Noise Shield
14 - Engine Cooling Thermostat Gasket
15 - Engine Cooling Thermostat
16 - Engine Cooling Thermostat Housing
17 - Engine Cooling Thermostat Bolt - Short
18 - Engine Cooling Thermostat Housing Bolt - Long
19 - Fuel Feed Pipe Assembly
20 - Fuel Feed Pipe Assembly Bolt
21 - Fuel Feed Intermediate Pipe Assembly
22 - Fuel Pump Gasket
23 - Fuel Pump O-ring Seal
24 - Fuel Pump
25 - Fuel Pump Bolt
26 - Left Cylinder Head Assembly
27 - Left Cylinder Head Gasket
28 - Oil Level Indicator
29 - Oil Level Indicator Handle O-ring
30 - Oil Level Indicator Tube Bolt
31 - Oil Level Indicator Tube
32 - Oil Level Indicator Tube O-ring
33 - Oil Filter Adapter Assembly
34 - Engine Short Block Assembly
35 - Oil Pump Assembly
36 - Timing Drive Assembly
