Driver Door Components

Door Component Views

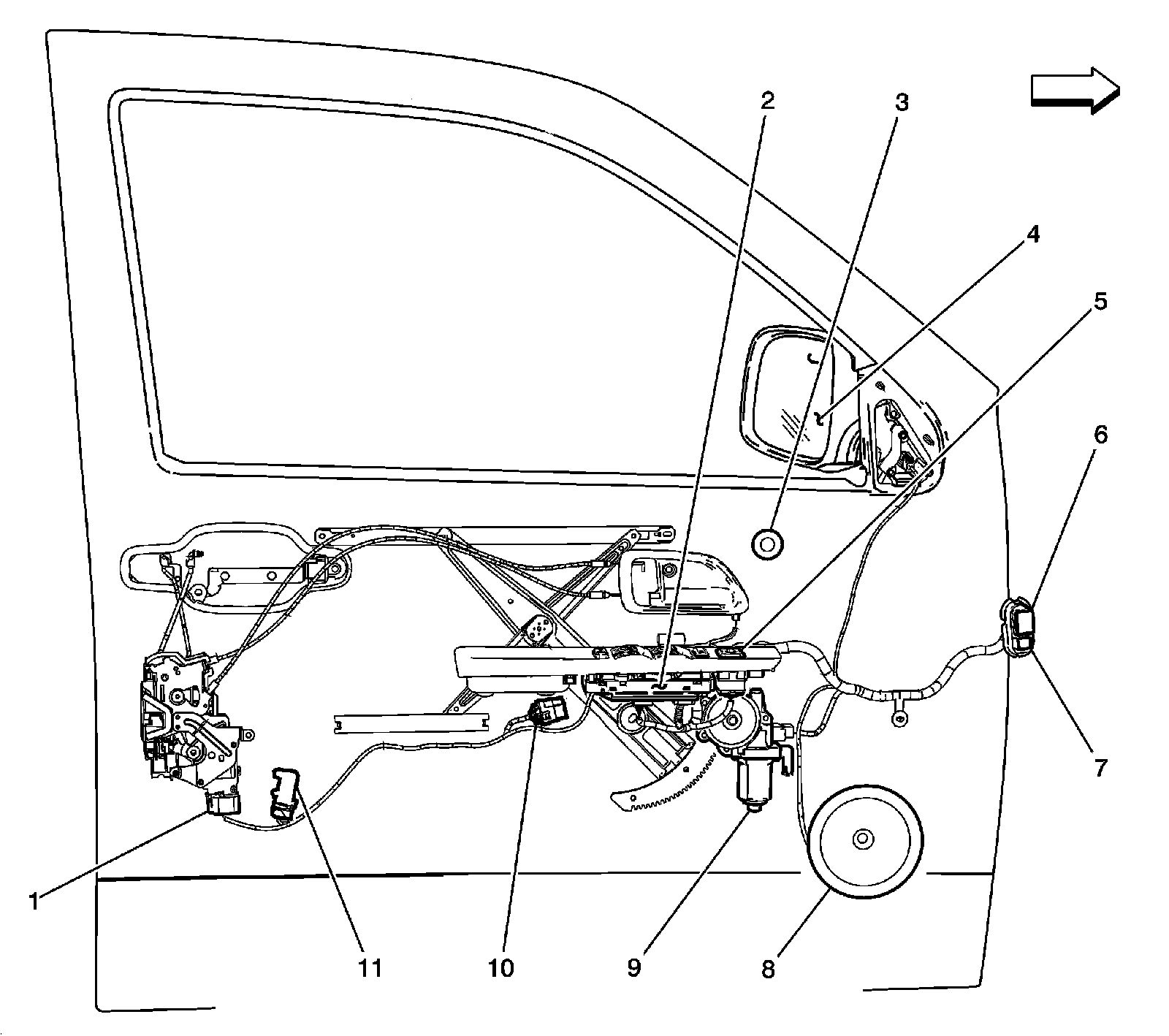

Driver Door Components




1 - Door Lock Actuator - Driver (ZQ6 or UE1 without ZQ6)
2 - Door Lock/Window Switch - Driver (ZQ6)
3 - Speaker - Left Front Tweeter
4 - Outside Rearview Mirror - Driver
5 - Outside Rearview Mirror Switch (ZQ6)
6 - X500
7 - X501 (ZQ6 or UE1 without ZQ6)
8 - Speaker - Left Front
9 - Window Motor - Driver (ZQ6)
10 - Door Unlock Relay (UE1without ZQ6)
11 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
