Data Communication Wiring Schematics

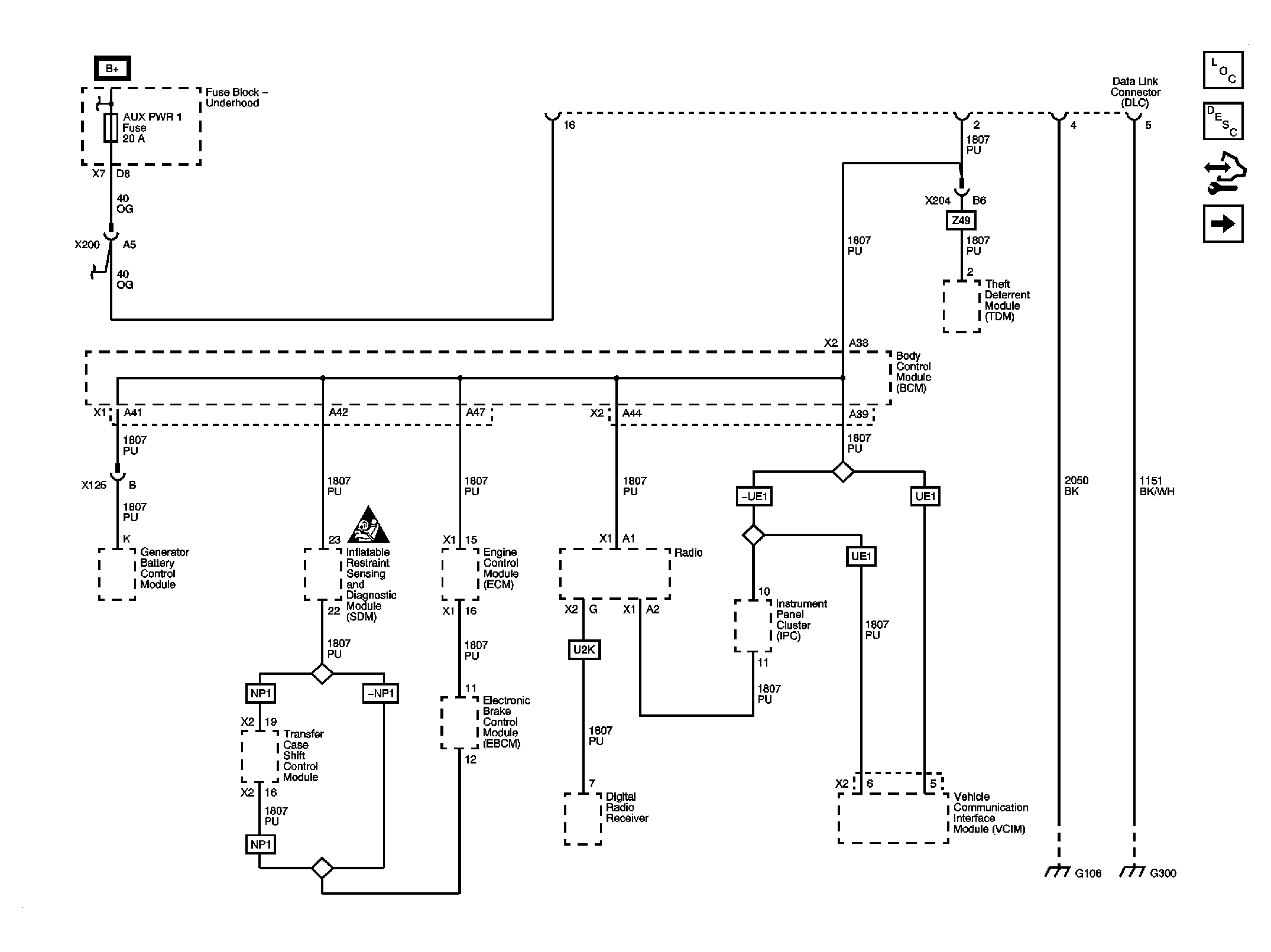

Fig 1: Class 2 Serial Data Wiring Schematic
GM2396626Courtesy of GENERAL MOTORS CORP.
Fig 2: High Speed GMLAN Serial Data Wiring Schematic
GM2396630Courtesy of GENERAL MOTORS CORP.
