Camshaft Position Sensor: Diagrams




Component Connector End Views

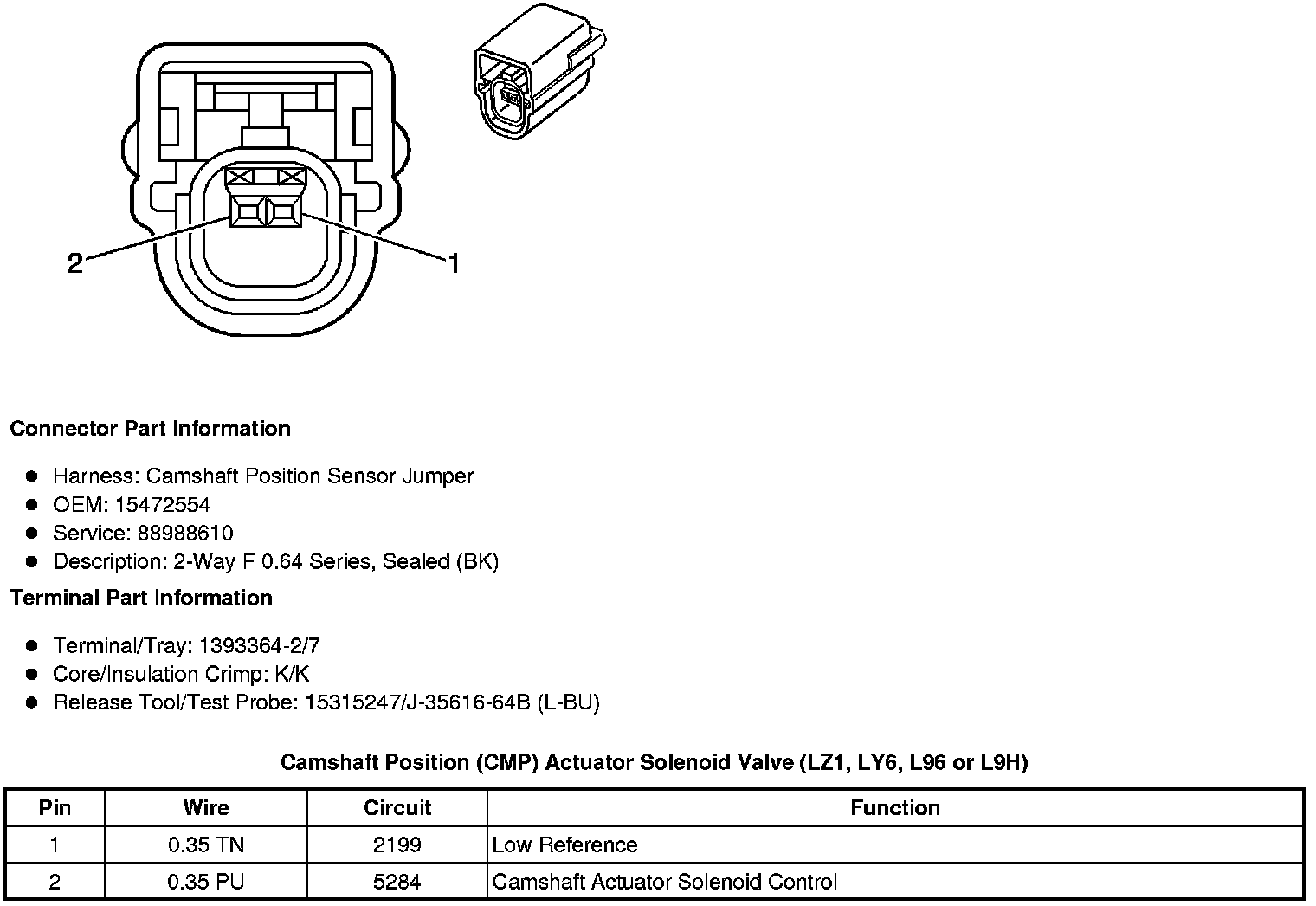

Camshaft Position (CMP) Actuator Solenoid Valve (LZ1, LY6, L96 or L9H)

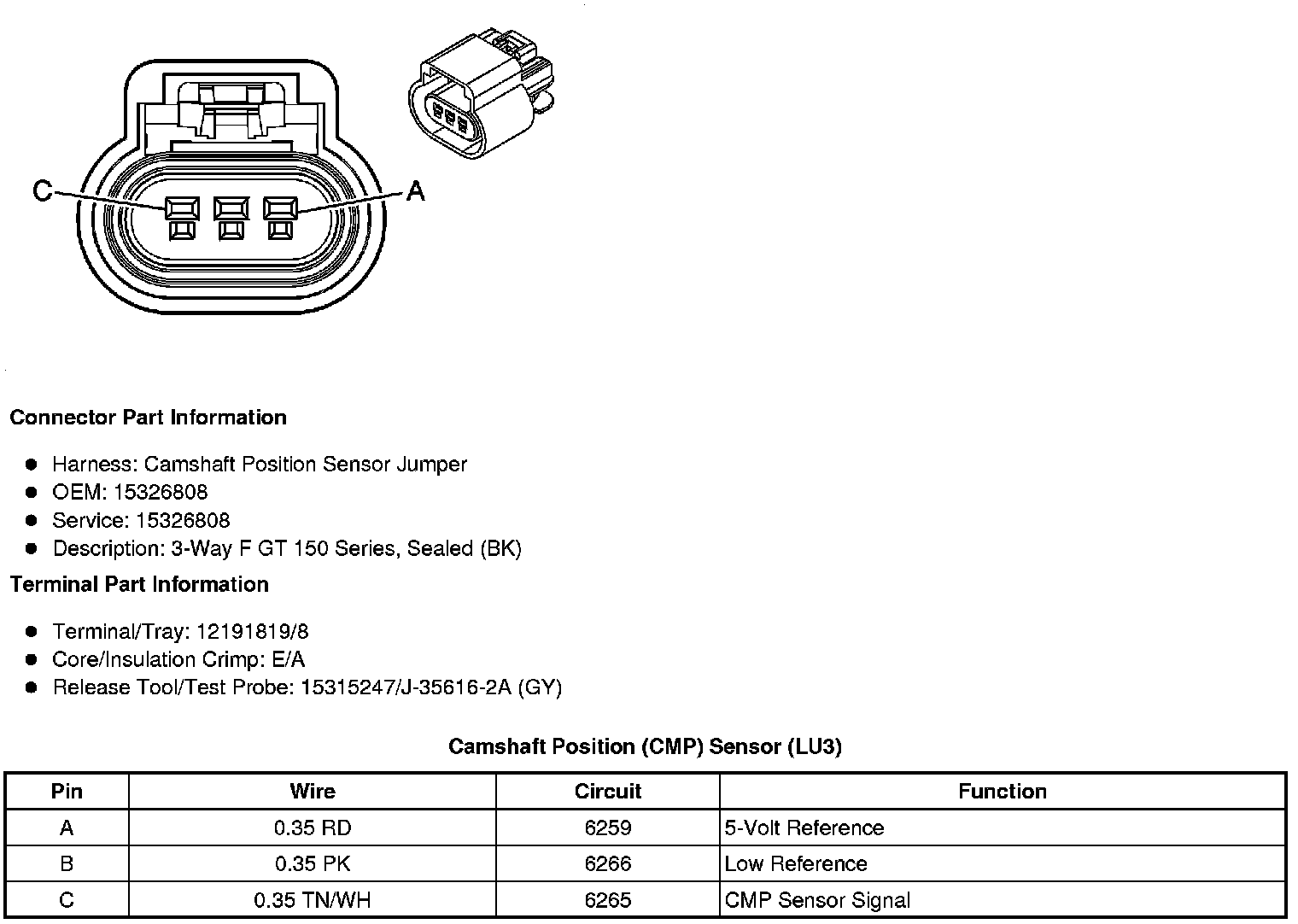

Camshaft Position (CMP) Sensor (LU3)

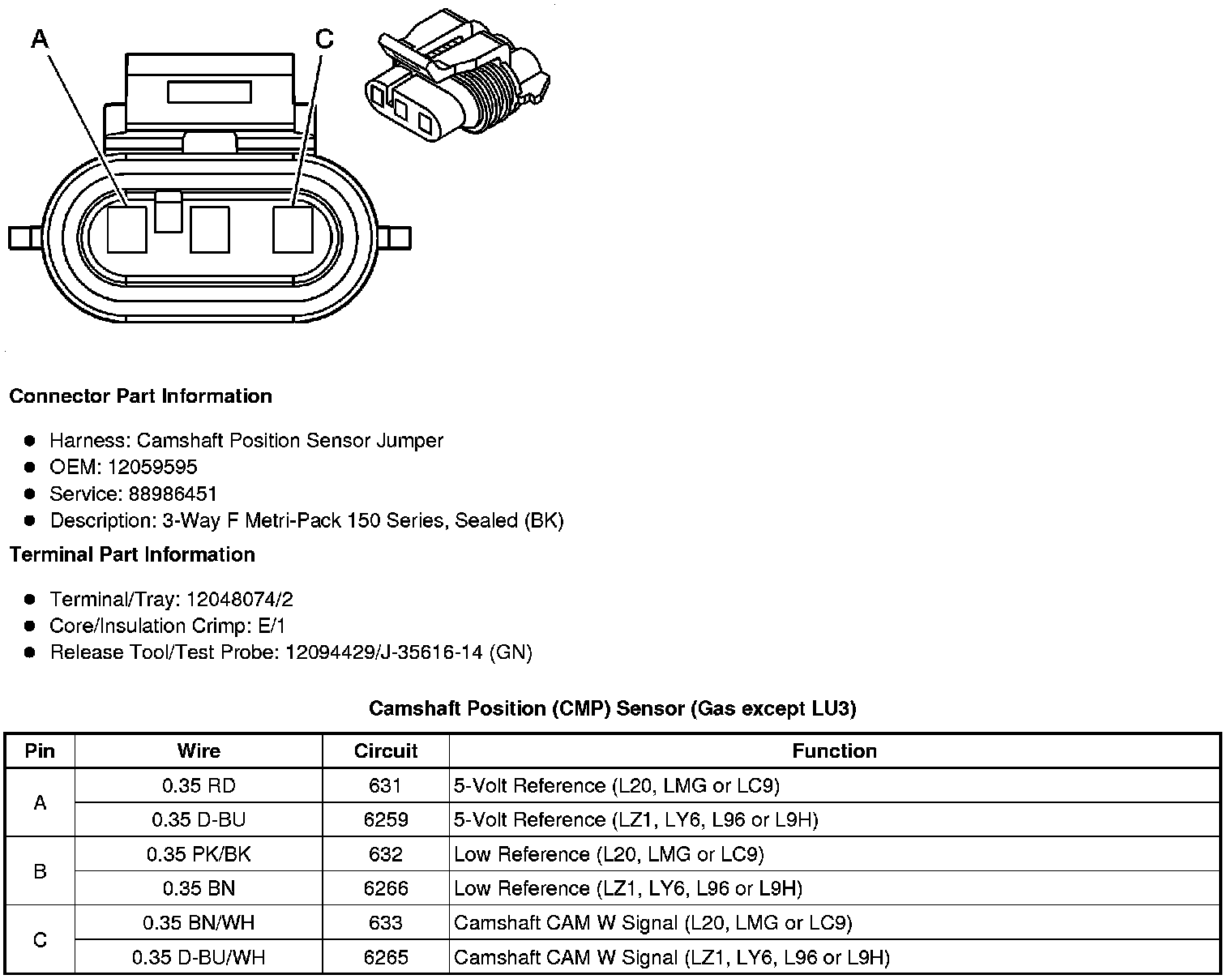

Camshaft Position (CMP) Sensor (Gas except LU3)

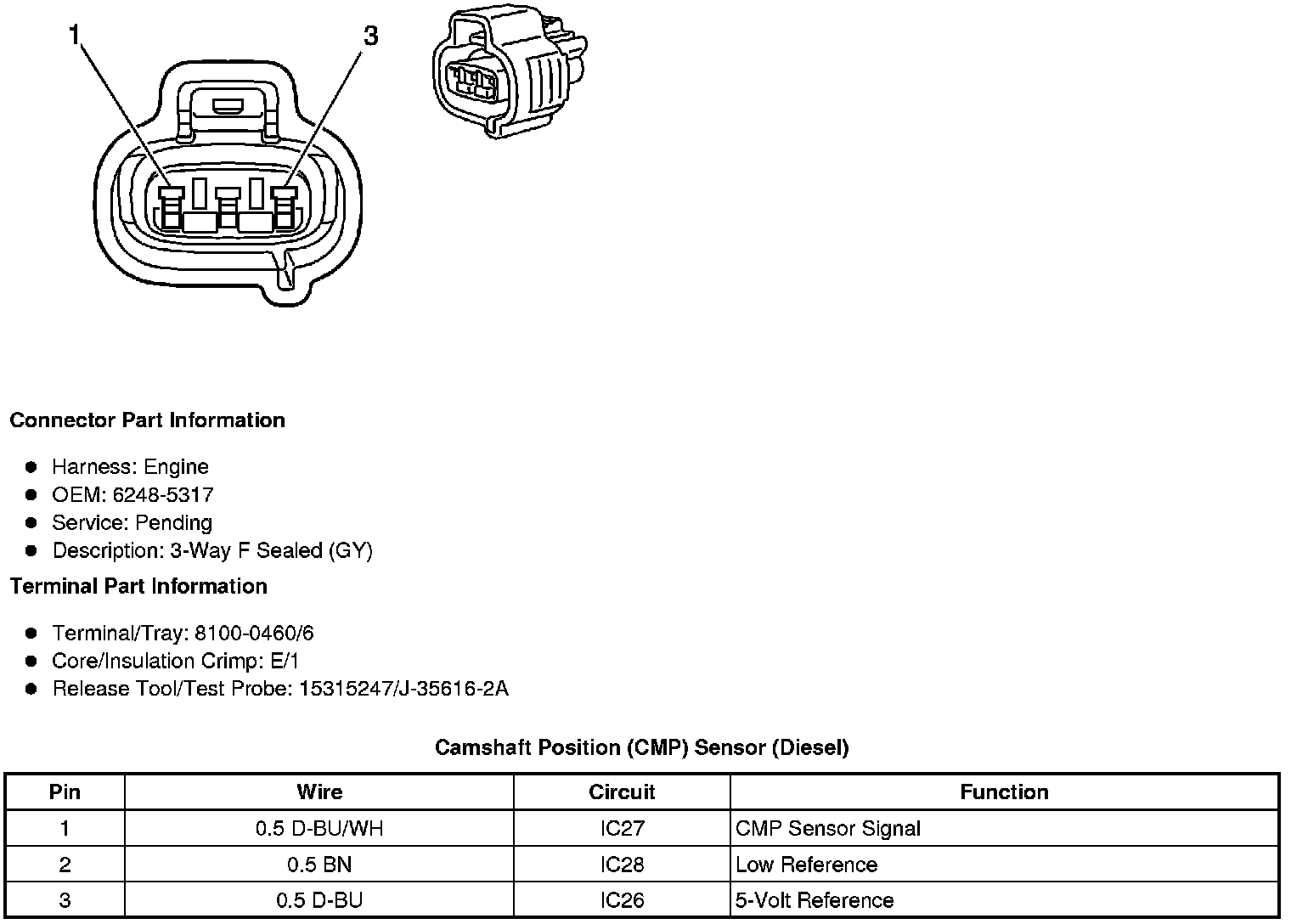

Camshaft Position (CMP) Sensor (Diesel)
