Camshaft Position Sensor: Locations




Harness Routing Views

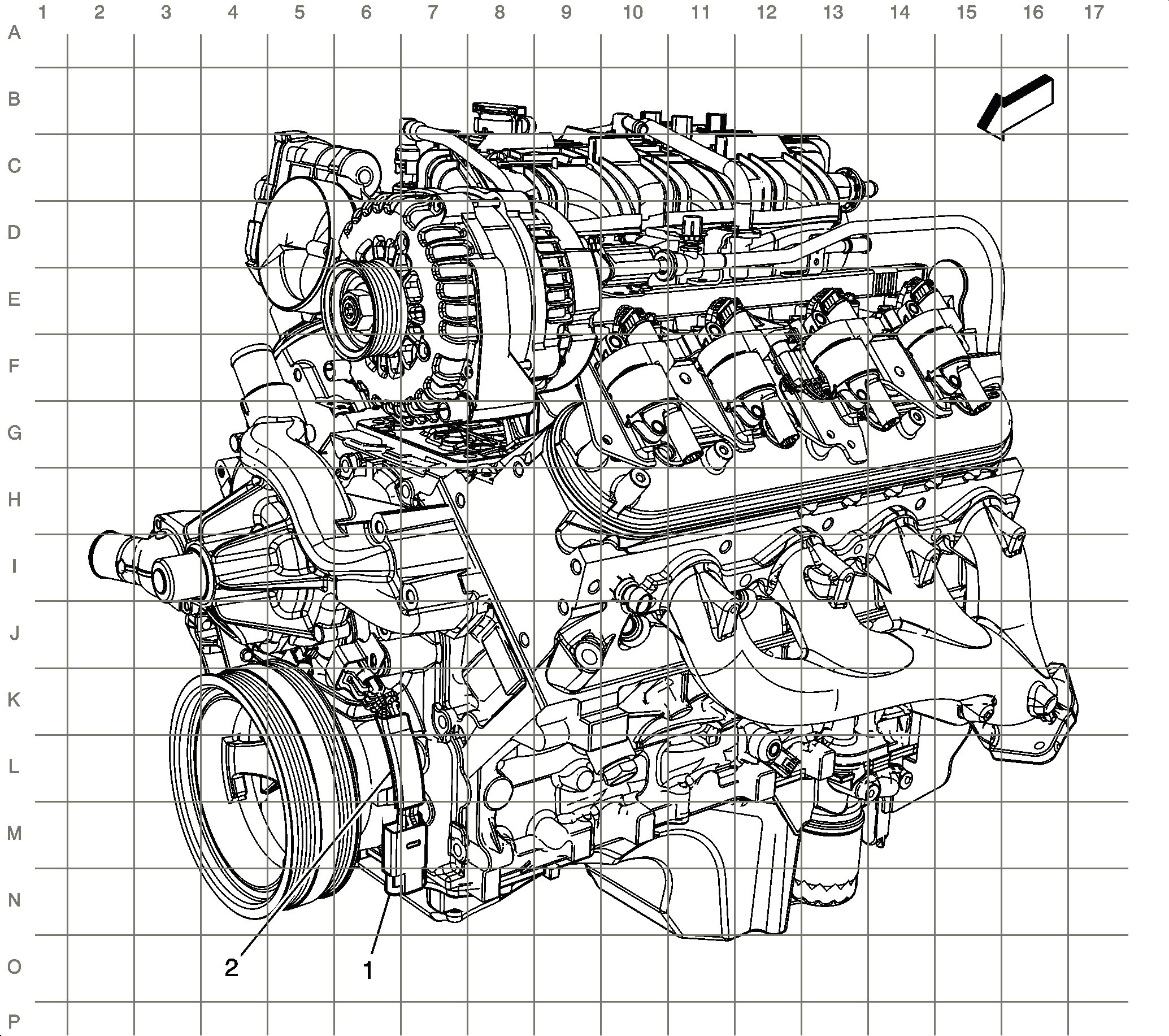

Camshaft Position Sensor Jumper Harness Routing (4.8L/5.3L/6.0L/6.2L)




1 - X112
2 - Camshaft Position Sensor Jumper Harness
