Oxygen Sensor: Diagrams




Component Connector End Views

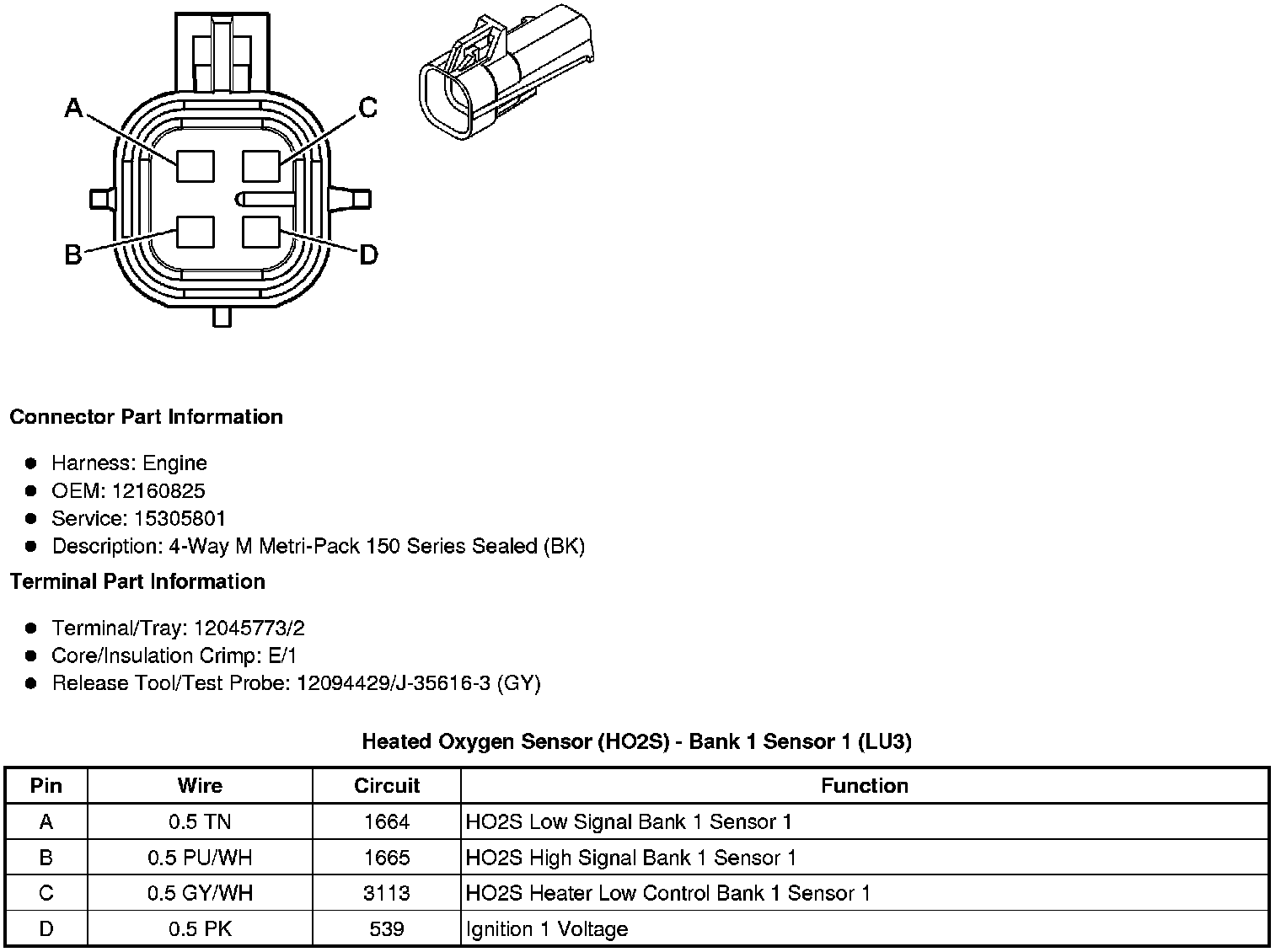

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LU3)

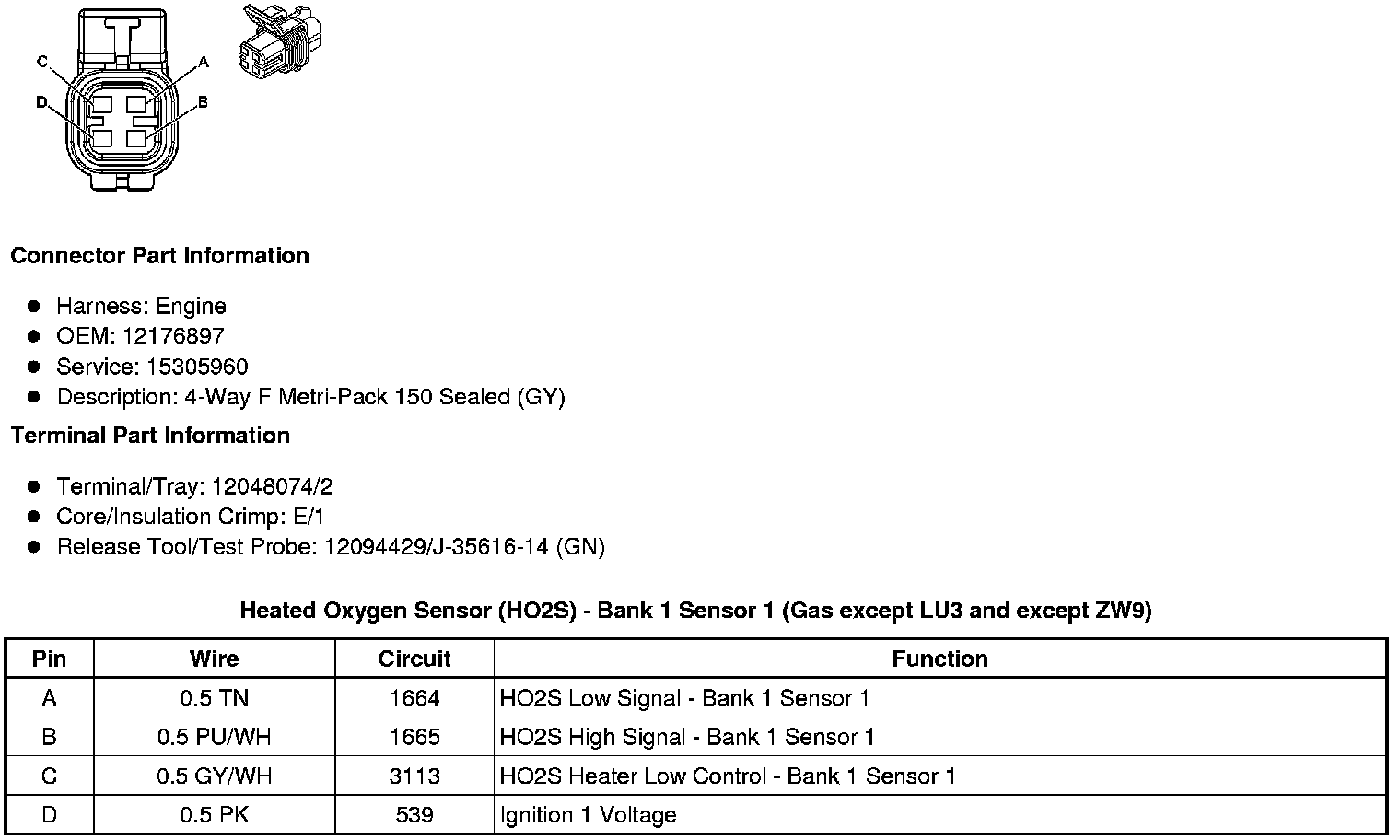

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (Gas except LU3 and except ZW9)





Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LY6 or L96 with ZW9)

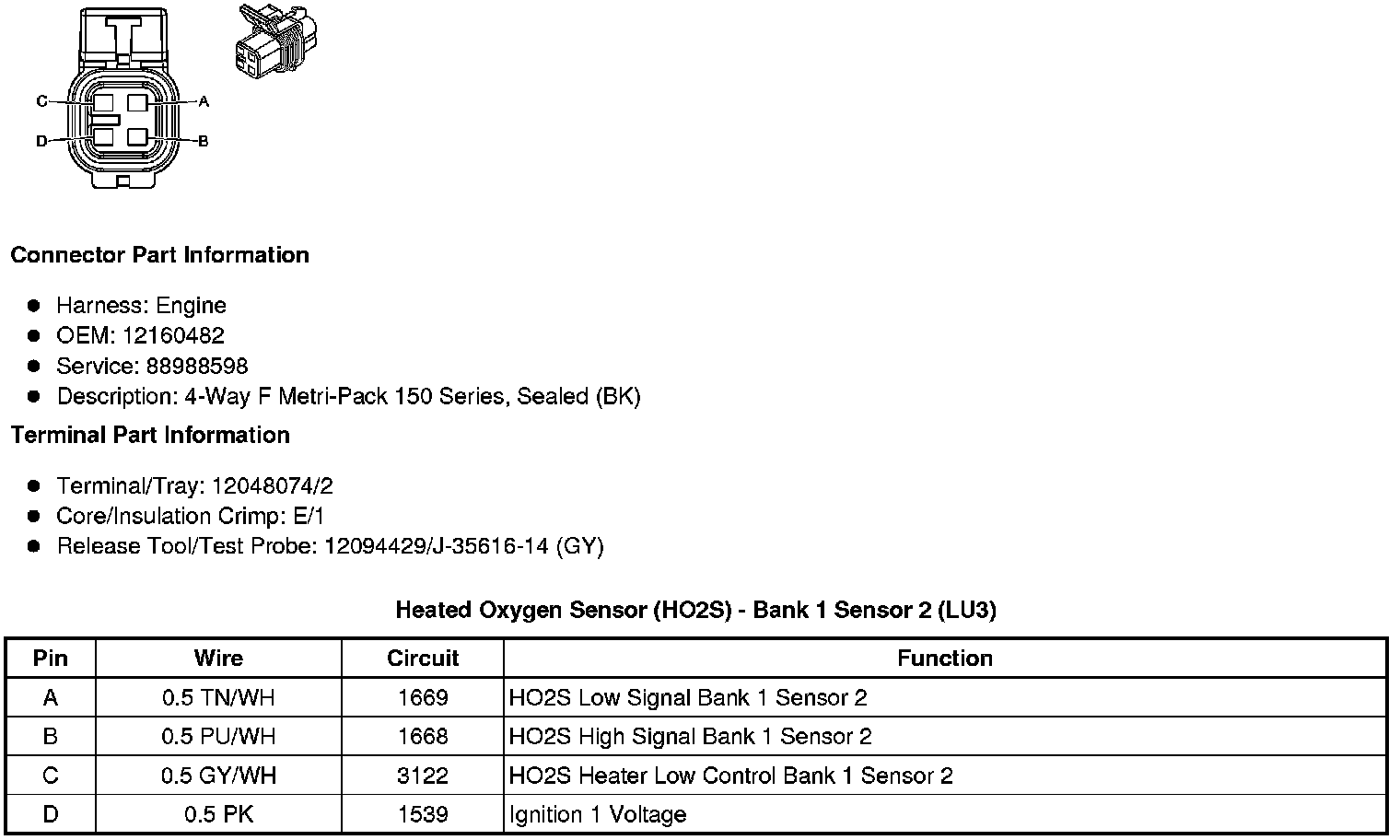

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LU3)

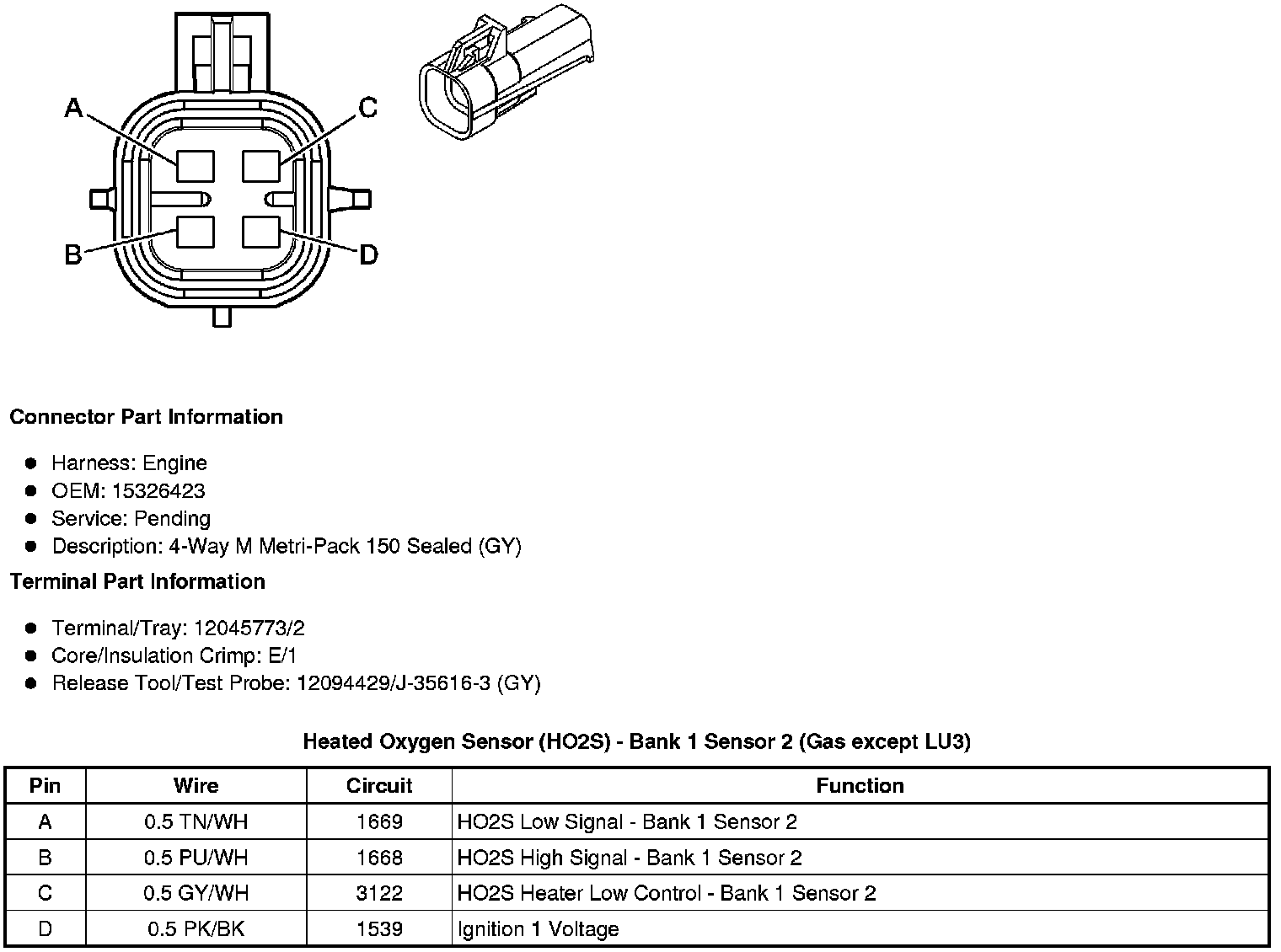

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (Gas except LU3)

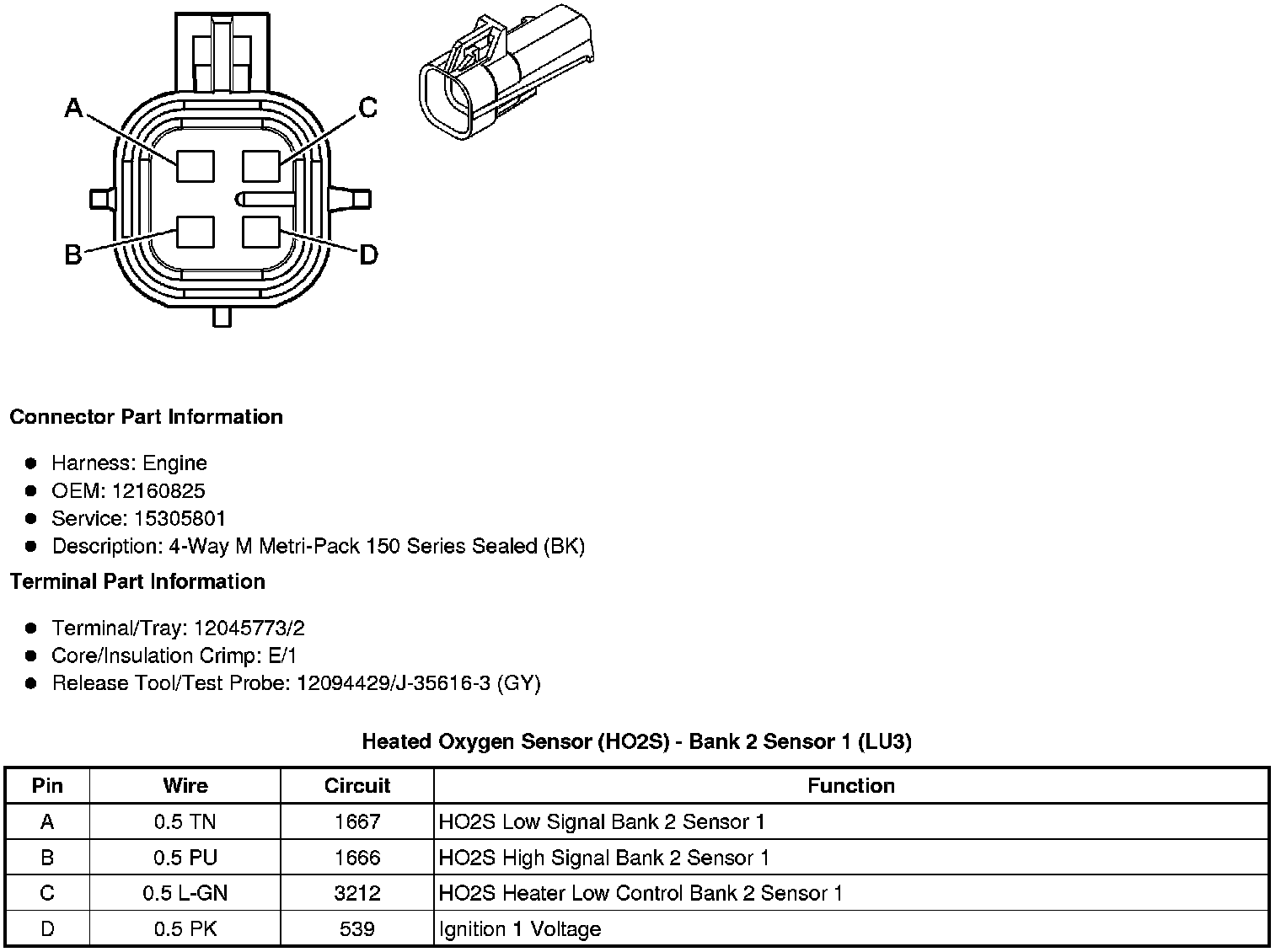

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LU3)

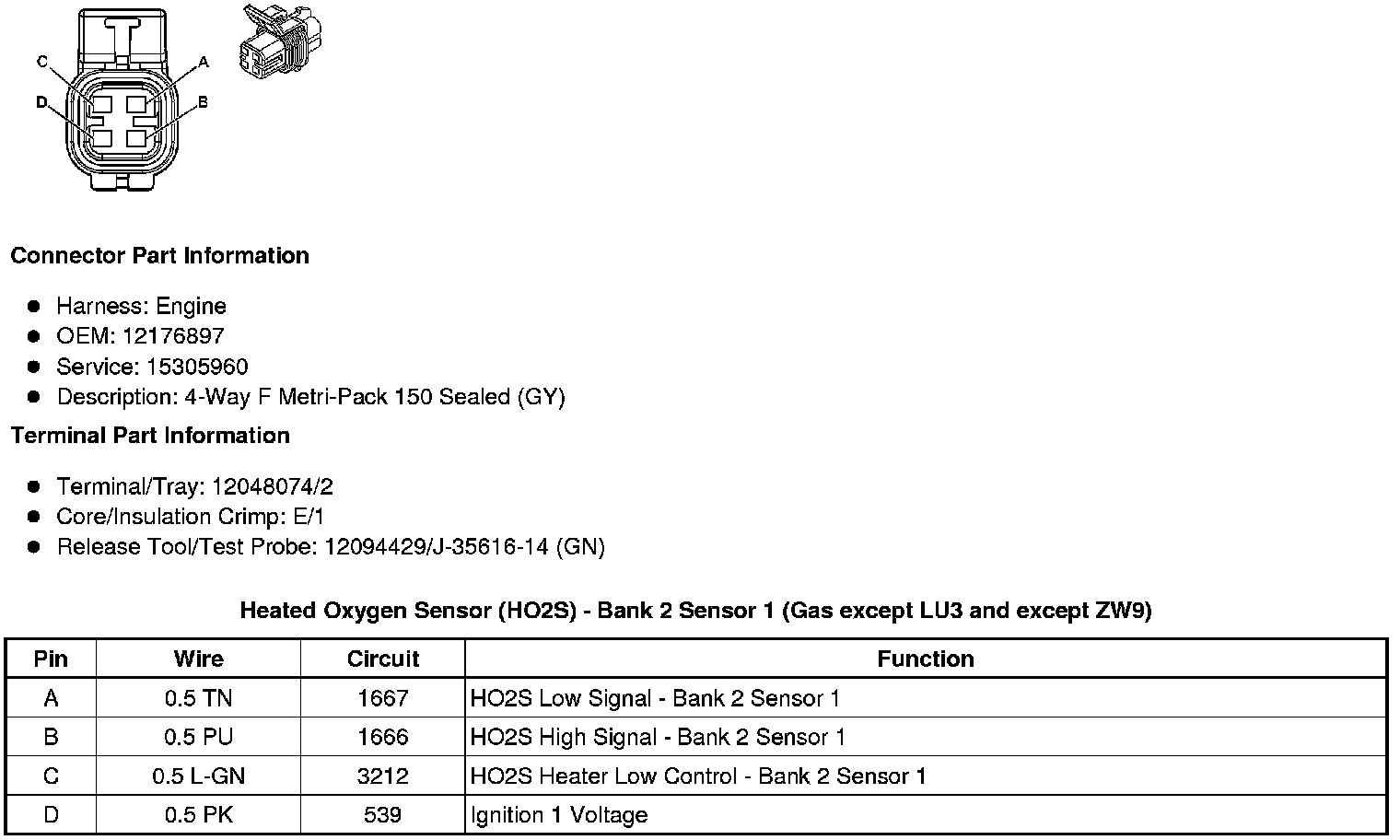

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (Gas except LU3 and except ZW9)

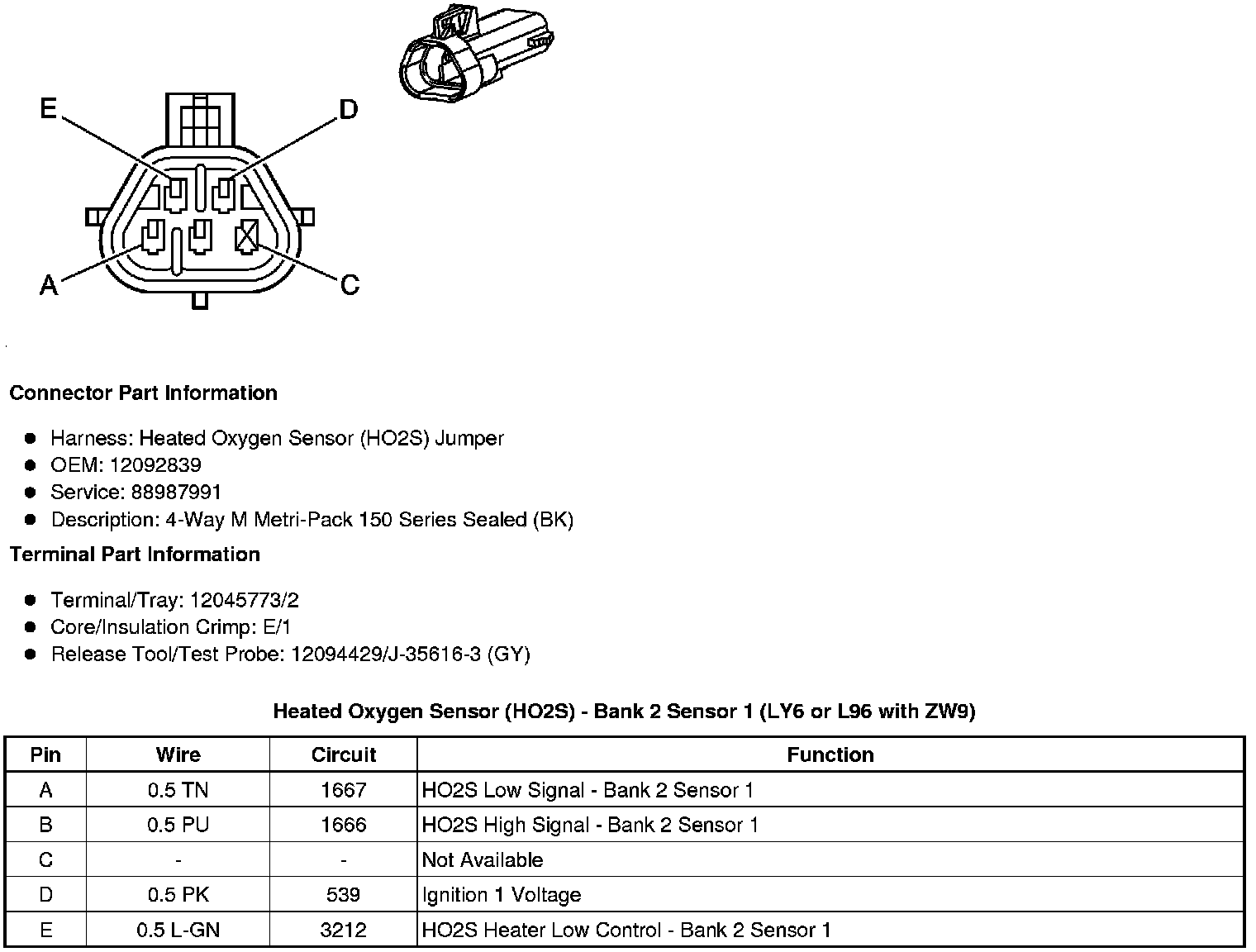

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LY6 or L96 with ZW9)

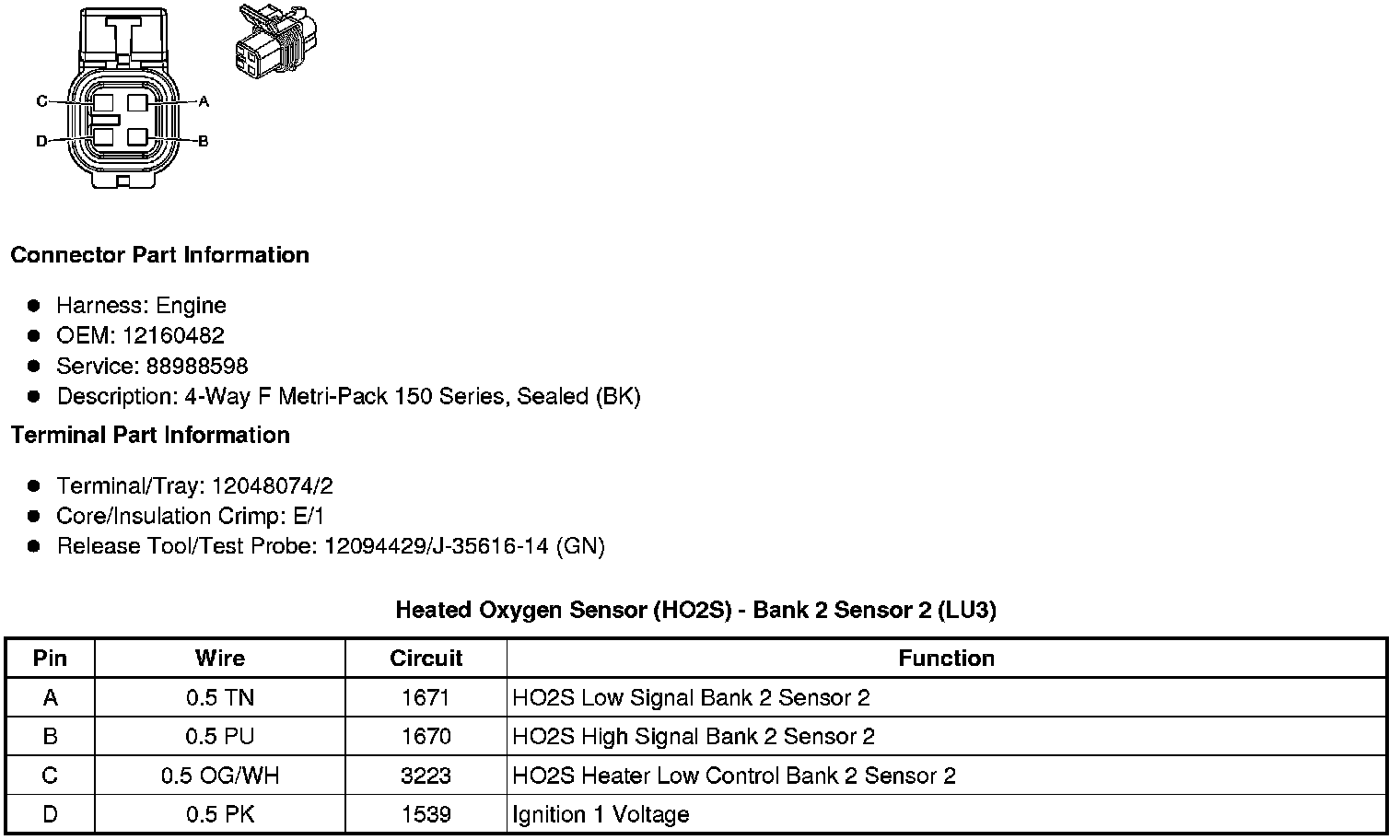

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LU3)

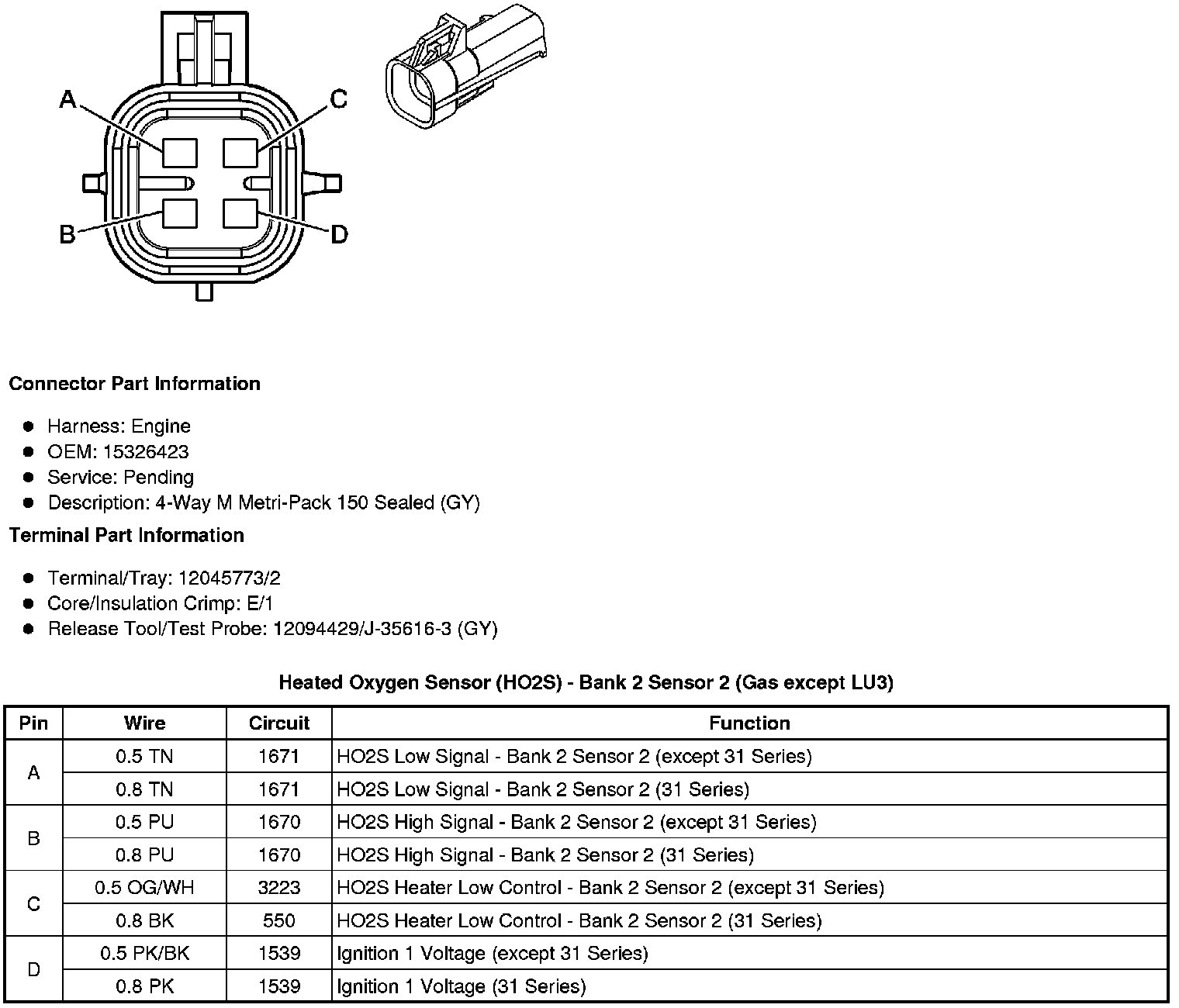

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (Gas except LU3)
