Trailer Brake Control Module: Diagrams

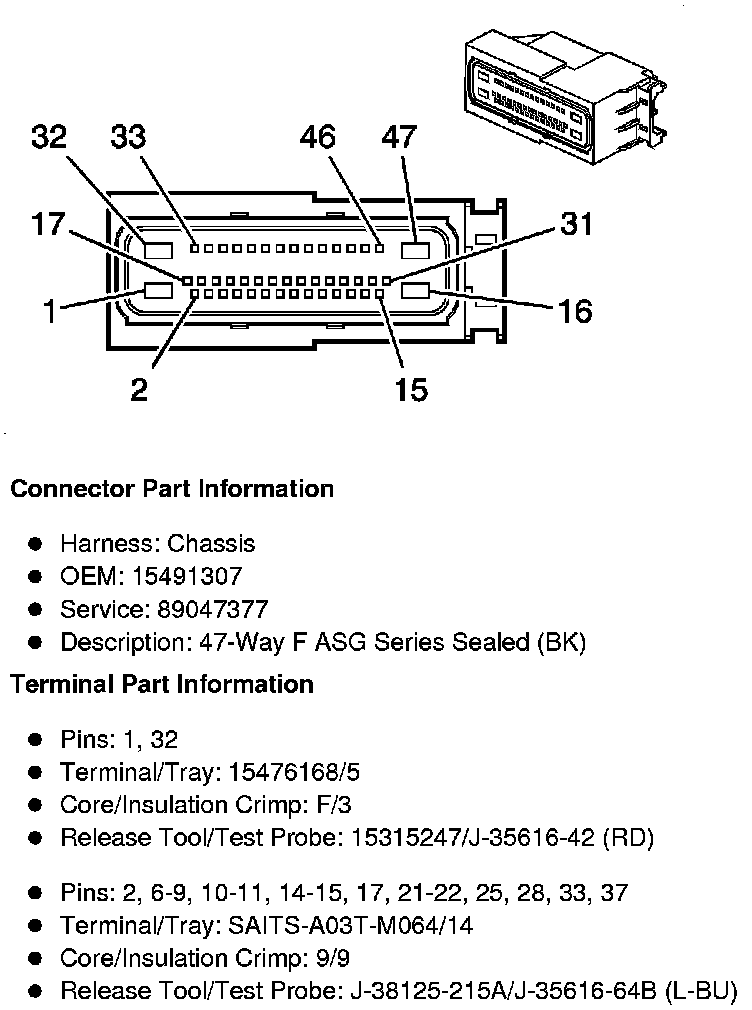

Component Connector End Views

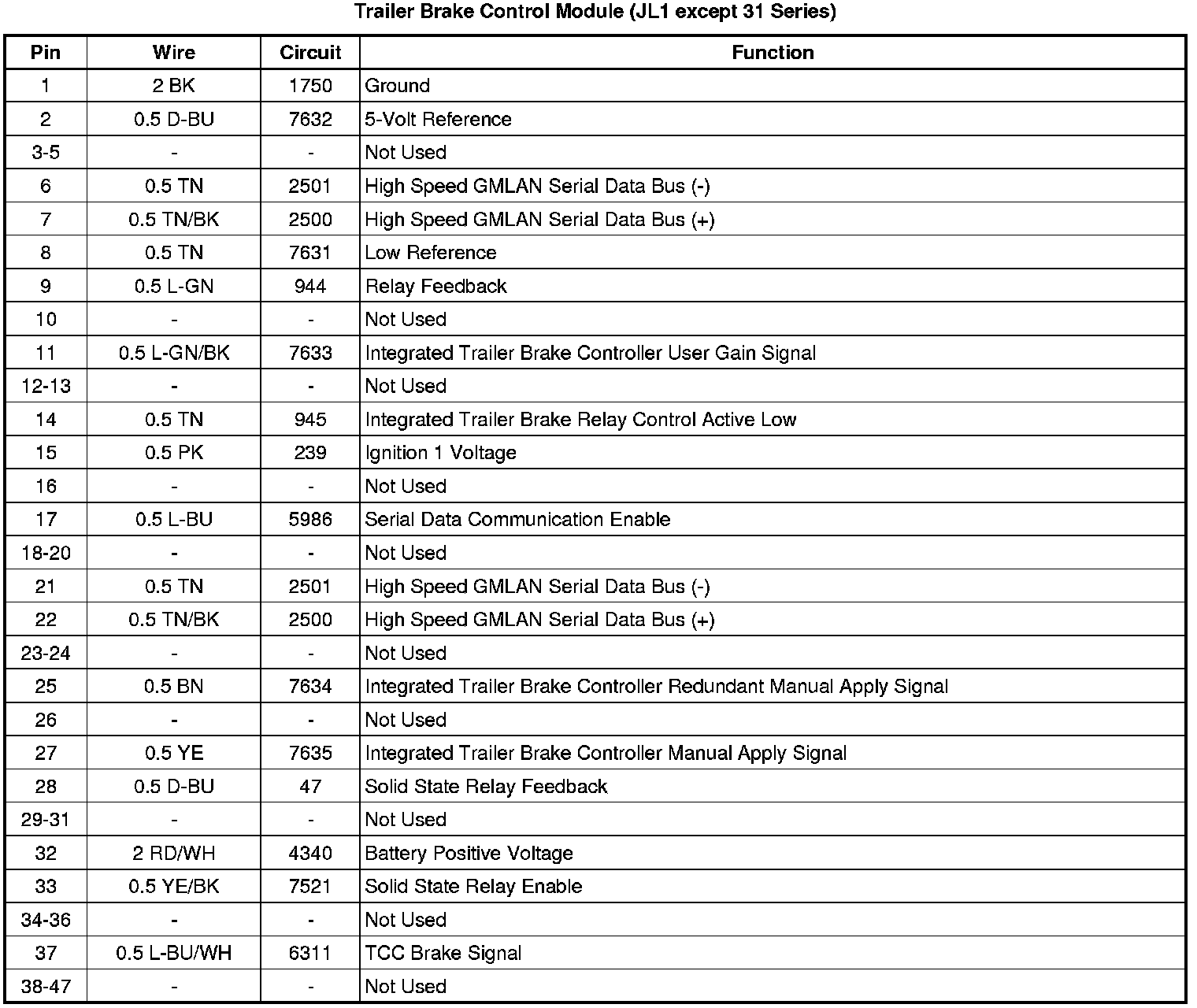

Trailer Brake Control Module (JL1 except 31 Series)









Trailer Brake Control Module (JL1 with 31 Series)

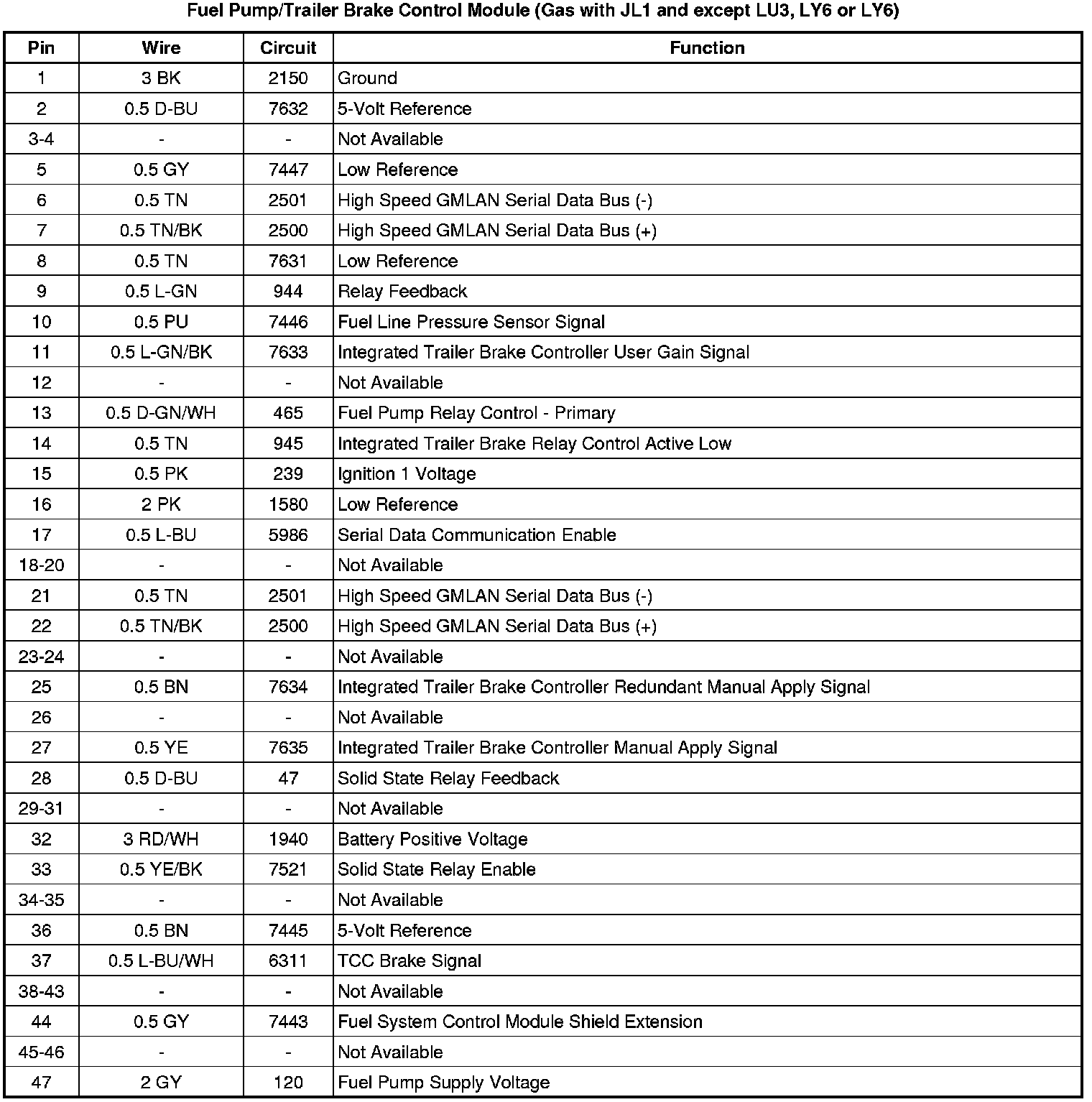

Fuel Pump/Trailer Brake Control Module (Gas with JL1 and except LU3, LY6 or LY6)
