Discharge Air Temperature Sensor / Switch: Diagrams




Component Connector End Views

B7E Air Temperature Sensor - Duct Right Lower (C68)

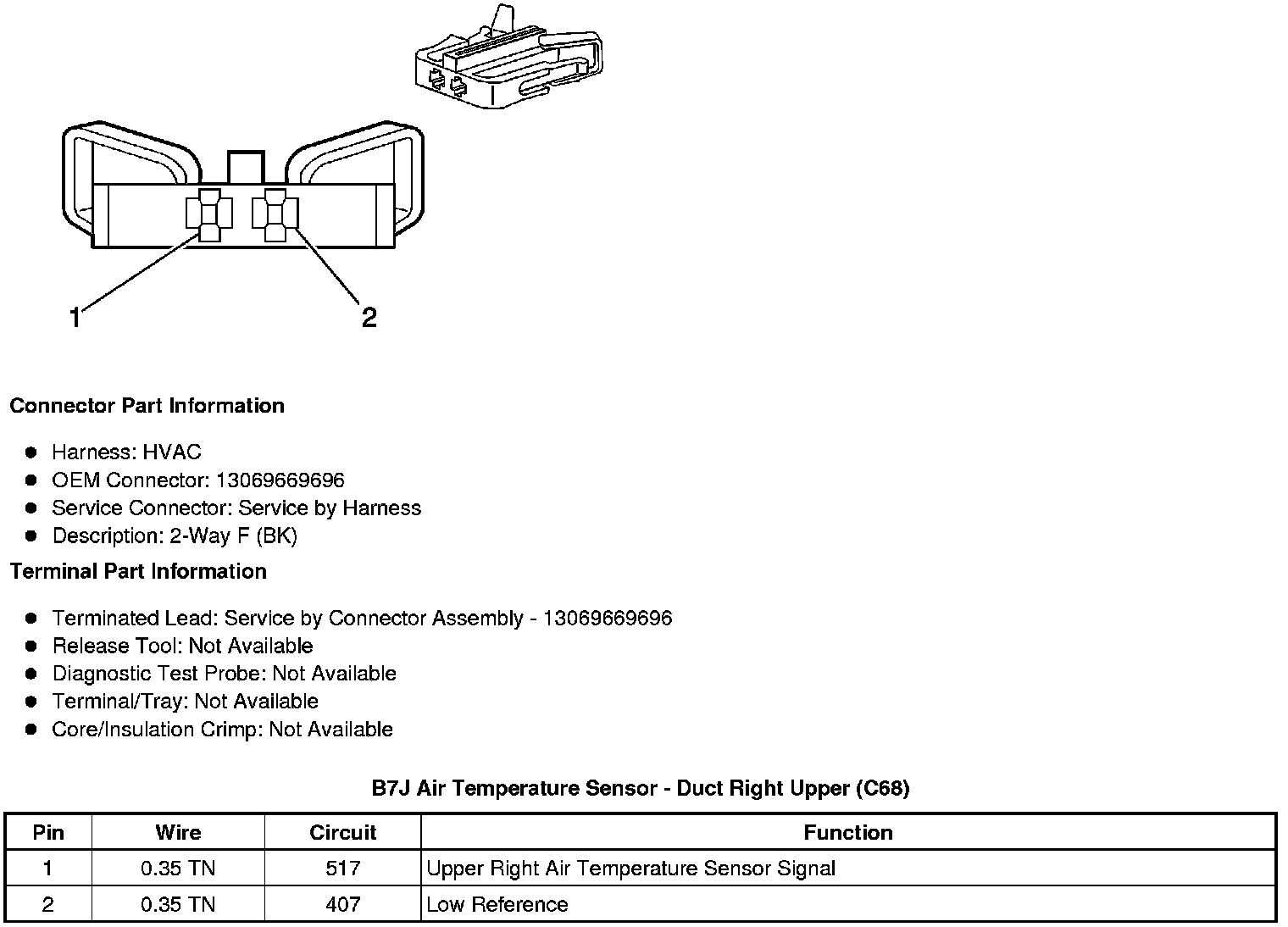

B7J Air Temperature Sensor - Duct Right Upper (C68)
