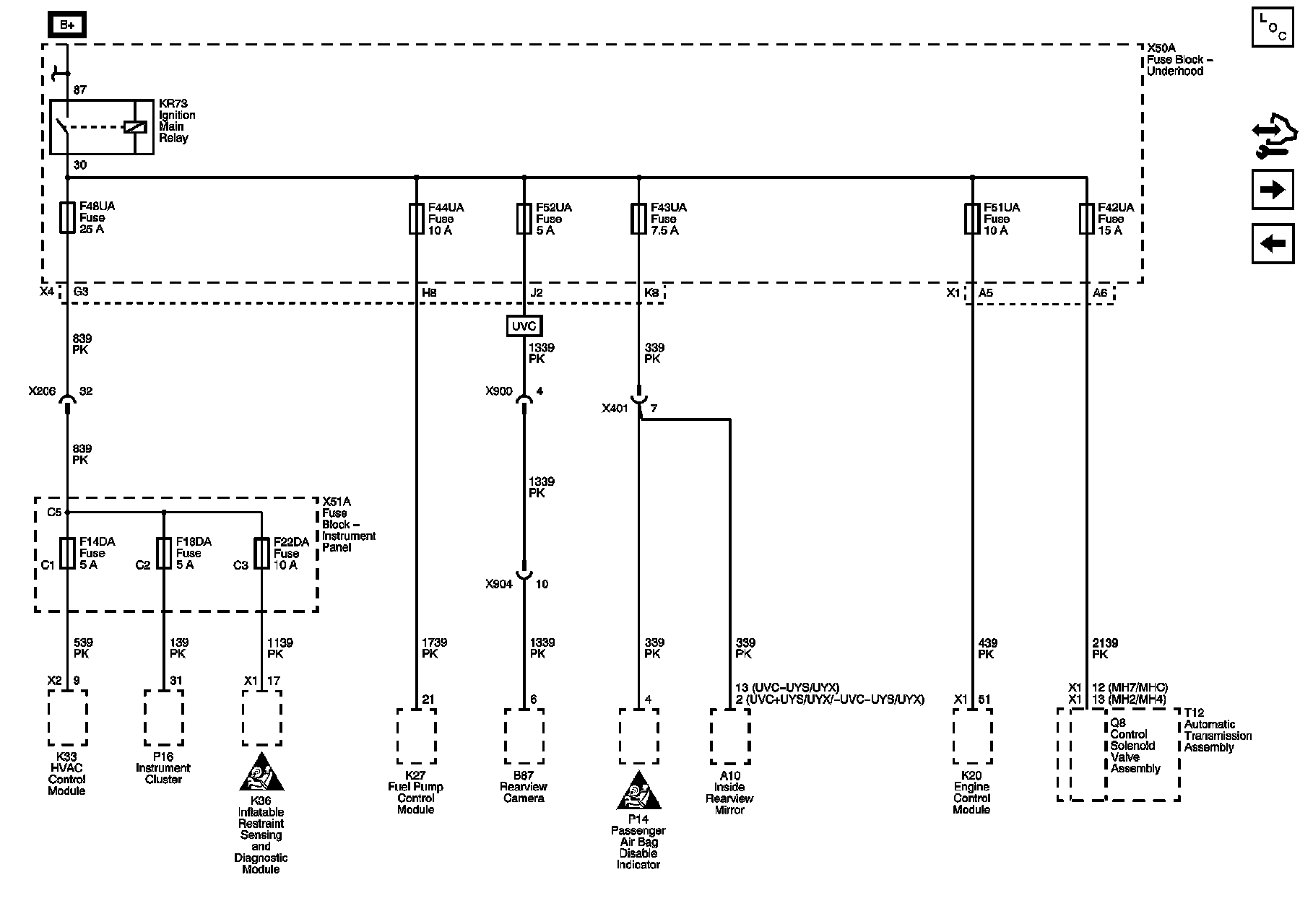

Power Distribution Schematic 11




Power Distribution Schematics

F42UA, F43UA, F44UA, F48UA, F51UA, and F52UA Fuses
