Variable Valve Timing Solenoid: Diagrams




Component Connector End Views

Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LFW)

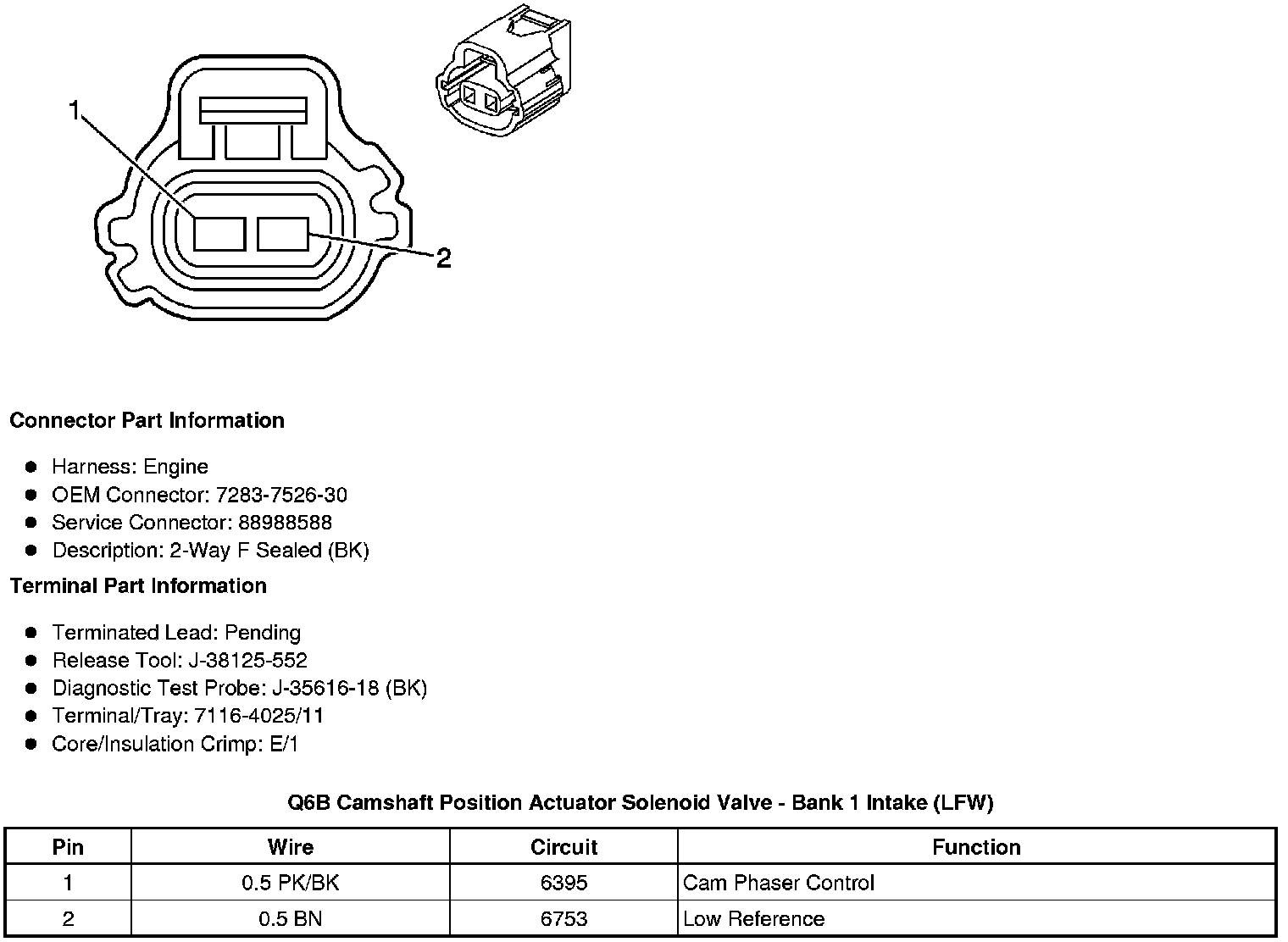

Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LFW)

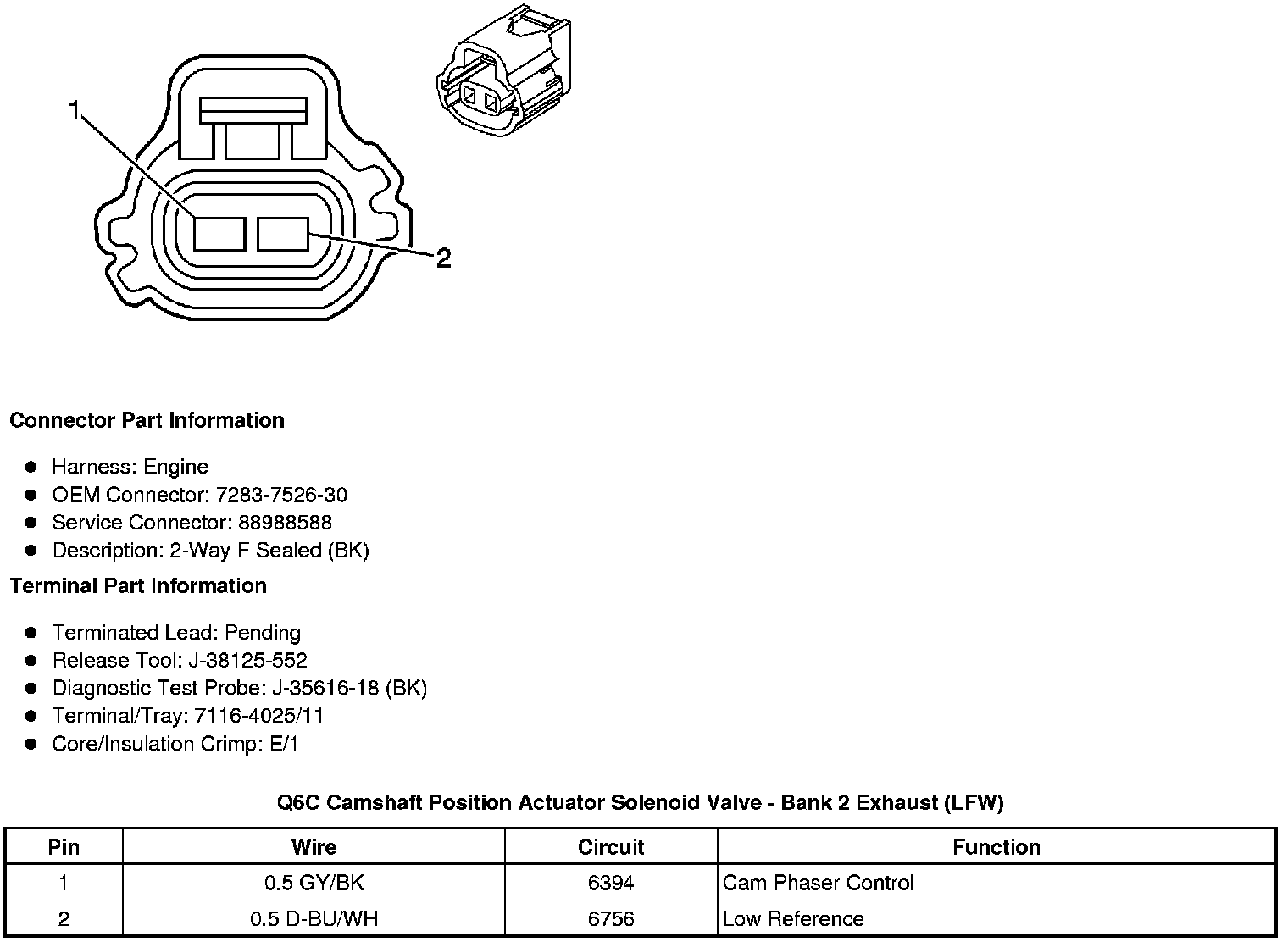

Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LFW)

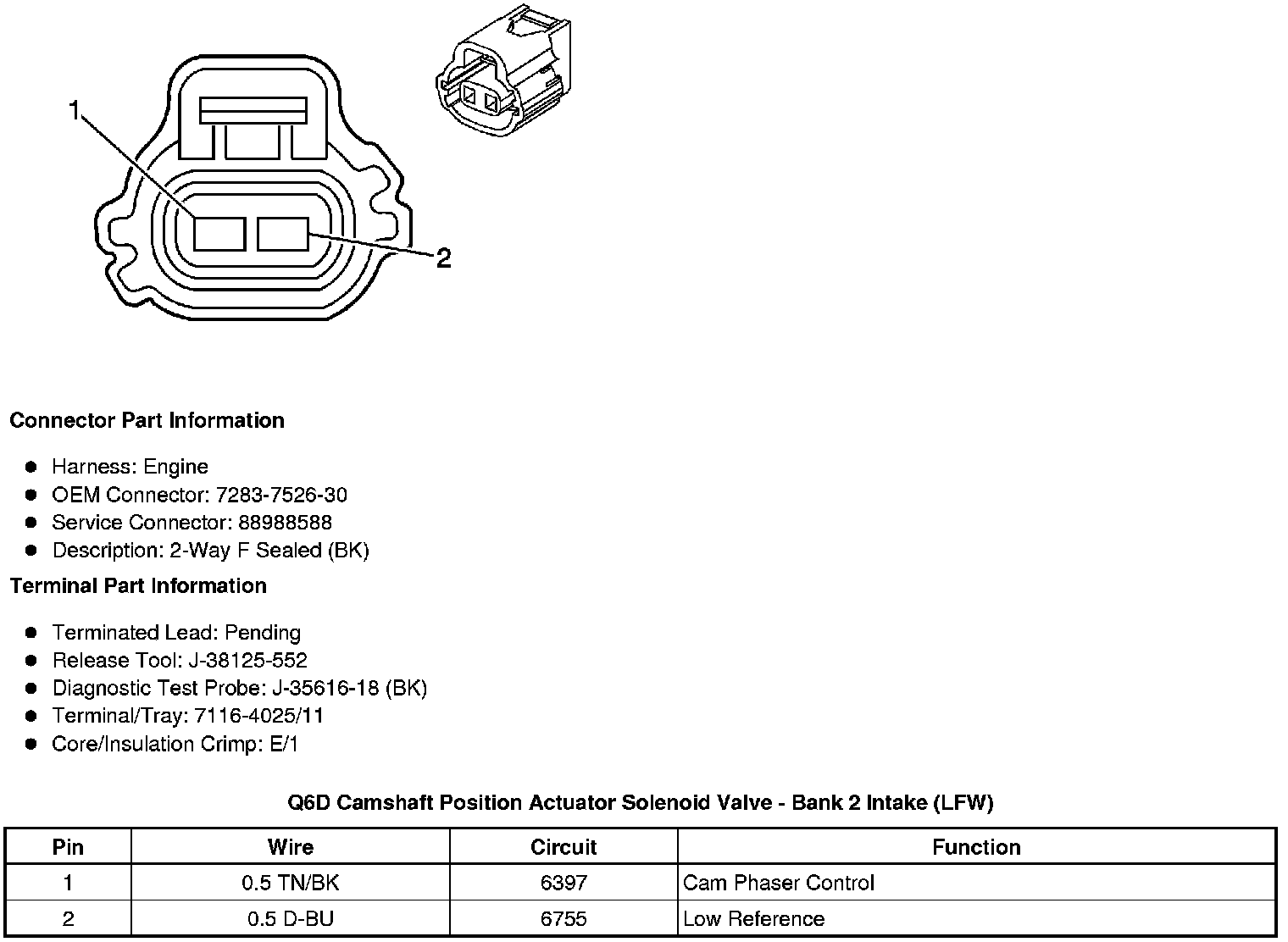

Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LFW)

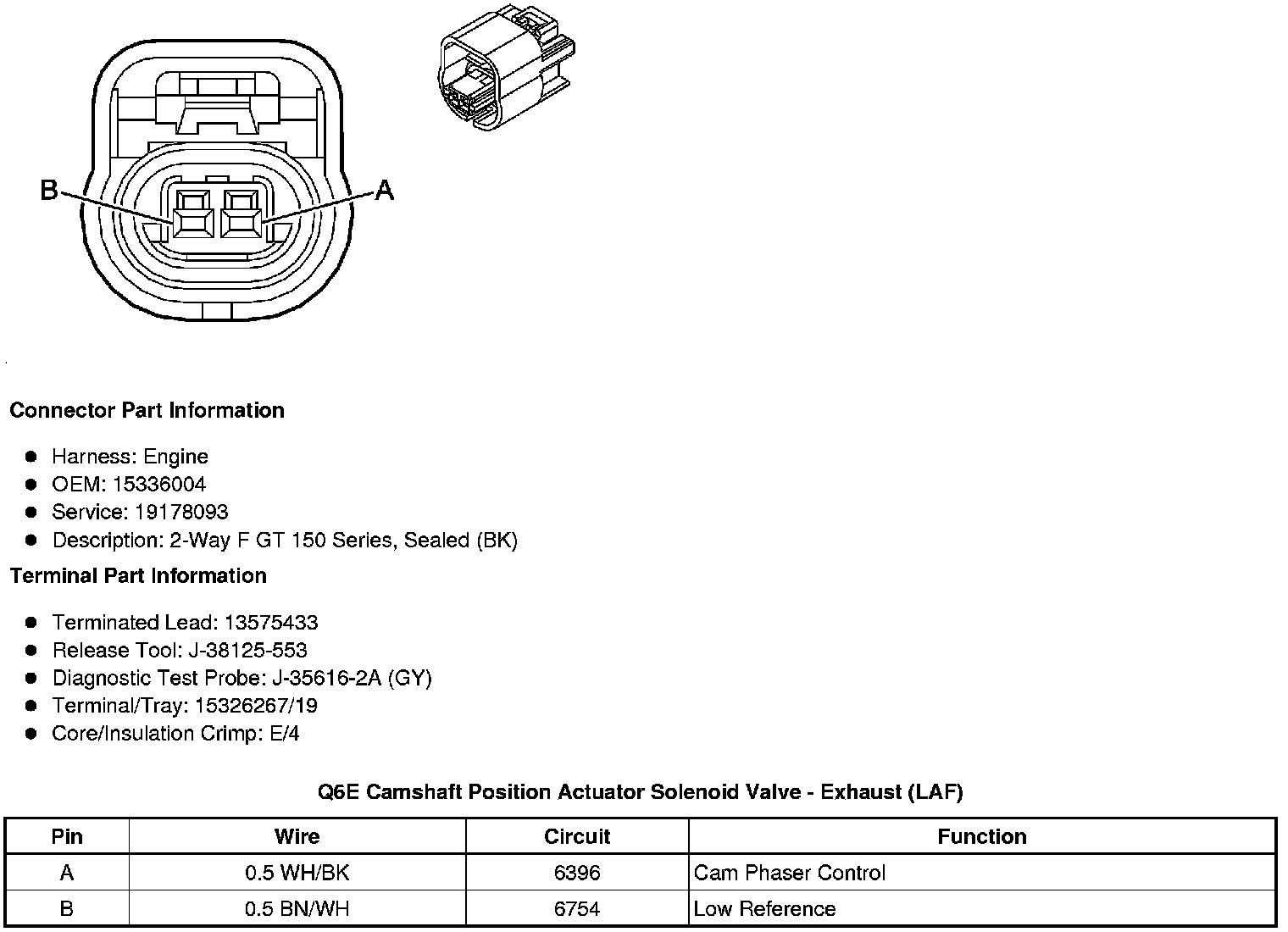

Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LAF)

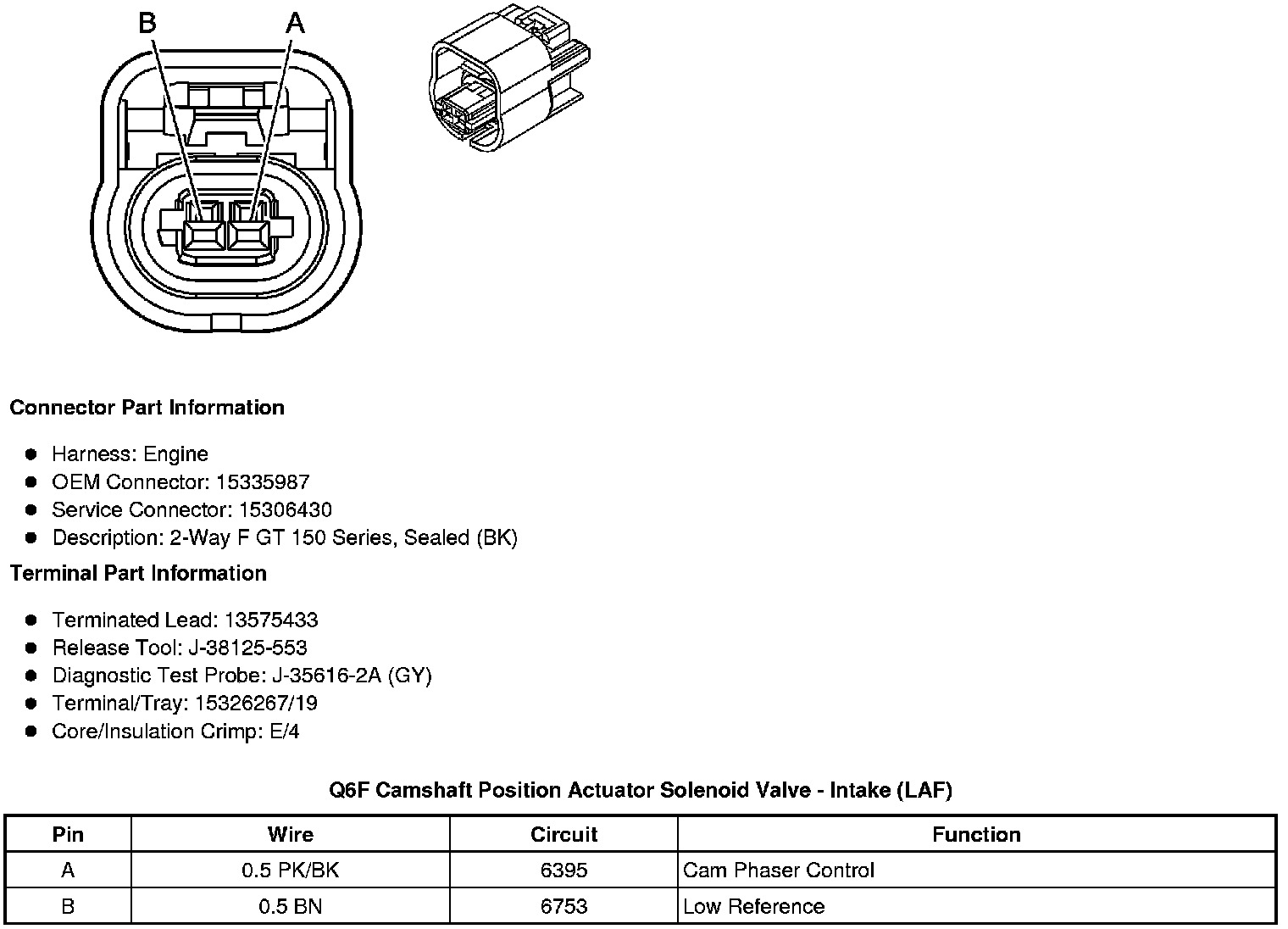

Q6F Camshaft Position Actuator Solenoid Valve - Intake (LAF)
