Oxygen Sensor: Locations




Powertrain Component Views

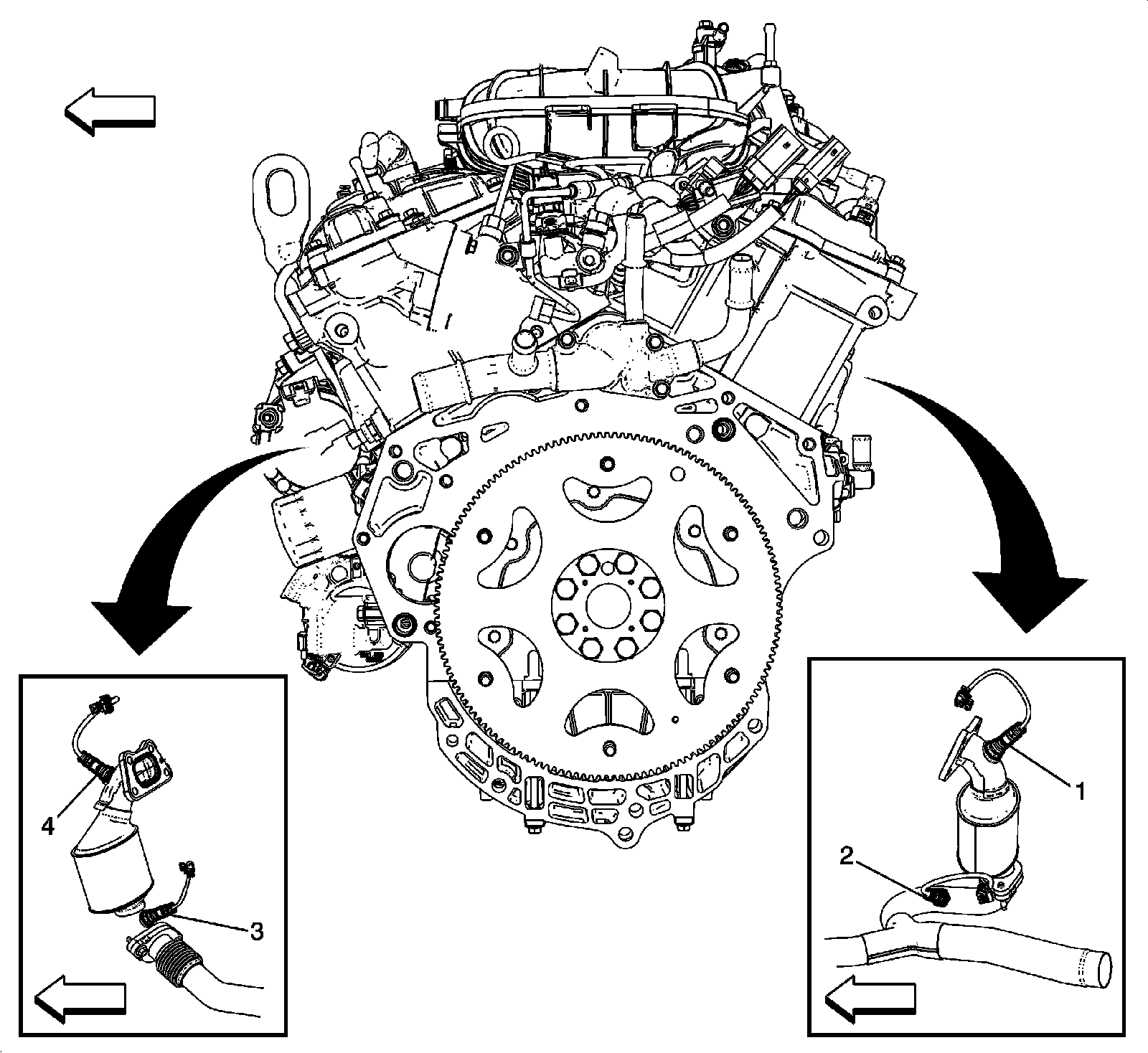

Front of the Exhaust System Components (LFW)




1 - B52C Heated Oxygen Sensor - Bank 1 Sensor 1
2 - B52D Heated Oxygen Sensor - Bank 1 Sensor 2
3 - B52F Heated Oxygen Sensor - Bank 2 Sensor 2
4 - B52E Heated Oxygen Sensor - Bank 2 Sensor 1
