Fuel Pressure Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

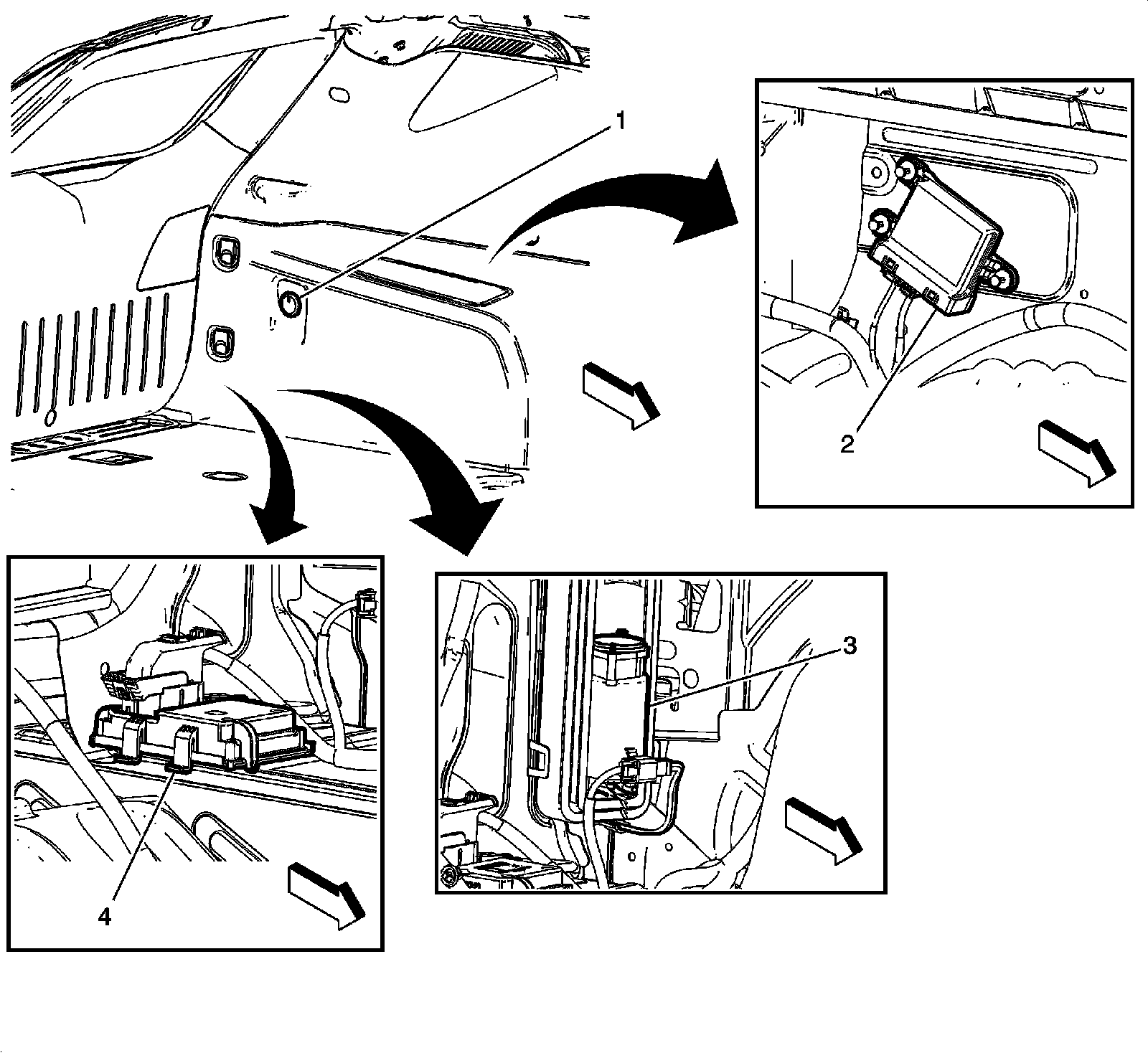

Left Side of the Luggage Compartment Components




1 - X80R Accessory Power Receptacle - Rear Compartment
2 - K41 Parking Assist Module (UD7)
3 - M17 Liftgate Motor Assembly (TB5)
4 - K27 Fuel Pump Control Module
