Manifold Absolute Pressure Sensor Replacement

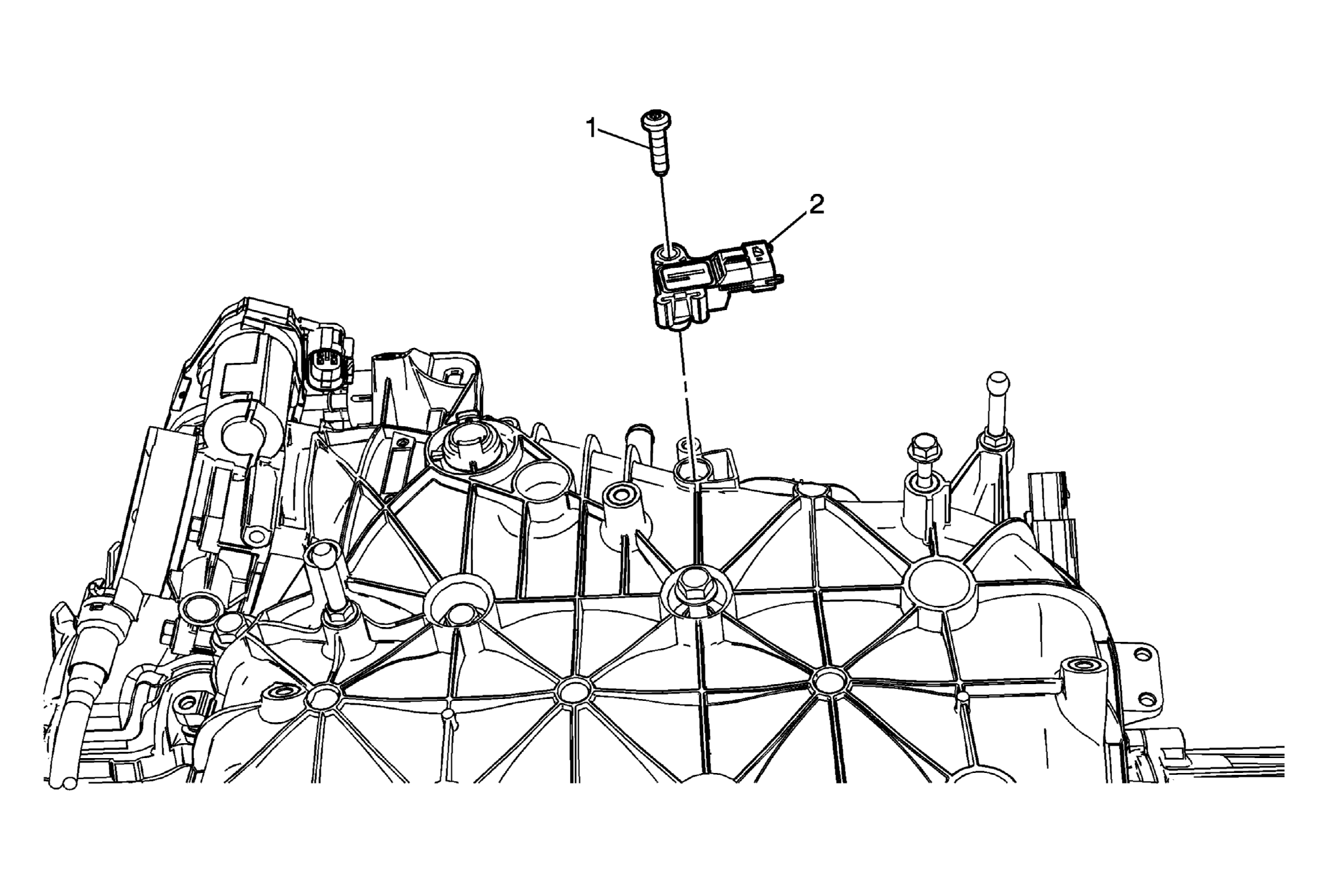

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten: 4 N.m(35 lb in)
2	Manifold Absolute Pressure Sensor Procedure: Disconnect the electrical connector.
