Neutral Safety Switch: Locations

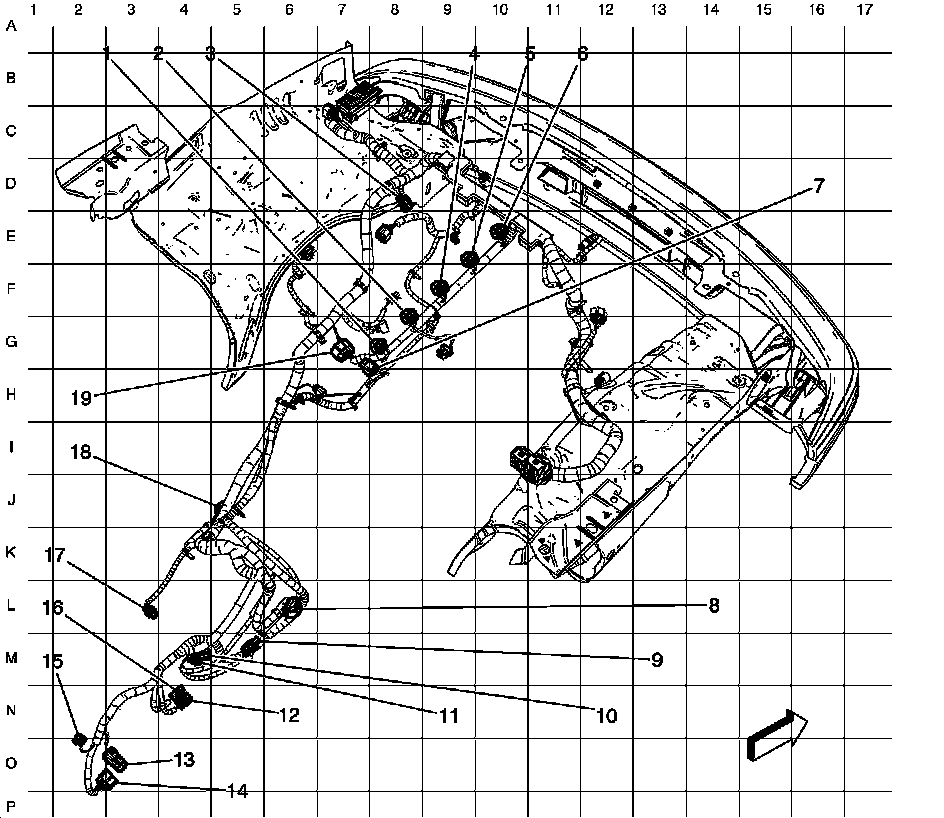

Harness Routing Views

Engine Harness Routing 2 of 2 (LLR)




1 - Ignition Coil 5 Connector
2 - Ignition Coil 4 Connector
3 - X109 (Engine Harness to Battery Harness) (K18)
4 - Ignition Coil 3 Connector
5 - Ignition Coil 2 Connector
6 - Ignition Coil 1 Connector
7 - Engine Coolant Temperature (ECT) Sensor Connector
8 - X175 (M30) (Engine Harness to Transmission)
9 - Backup Lamp Switch (MA5) Connector
10 - Heated Oxygen Sensor (HO2S) 2 (M30) Connector
11 - Vehicle Speed Sensor (VSS) (M30) Connector
12 - Transfer Case Encoder Motor X1 (4WD)
13 - Heated Oxygen Sensor (HO2S) 2 (MA5) Connector
14 - Transfer Case Encoder Motor X3 (4WD)
15 - Transfer Case Encoder Motor X4 (4WD)
16 - Transfer Case Encoder Motor X2 (4WD)
17 - Vehicle Speed Sensor (VSS) (MA5) Connector
18 - Park/Neutral Position Switch (M30) Connector
19 - X101 (Engine Harness to Fuel Rail Harness)
