Camshaft Position Sensor: Locations

Powertrain Component Views

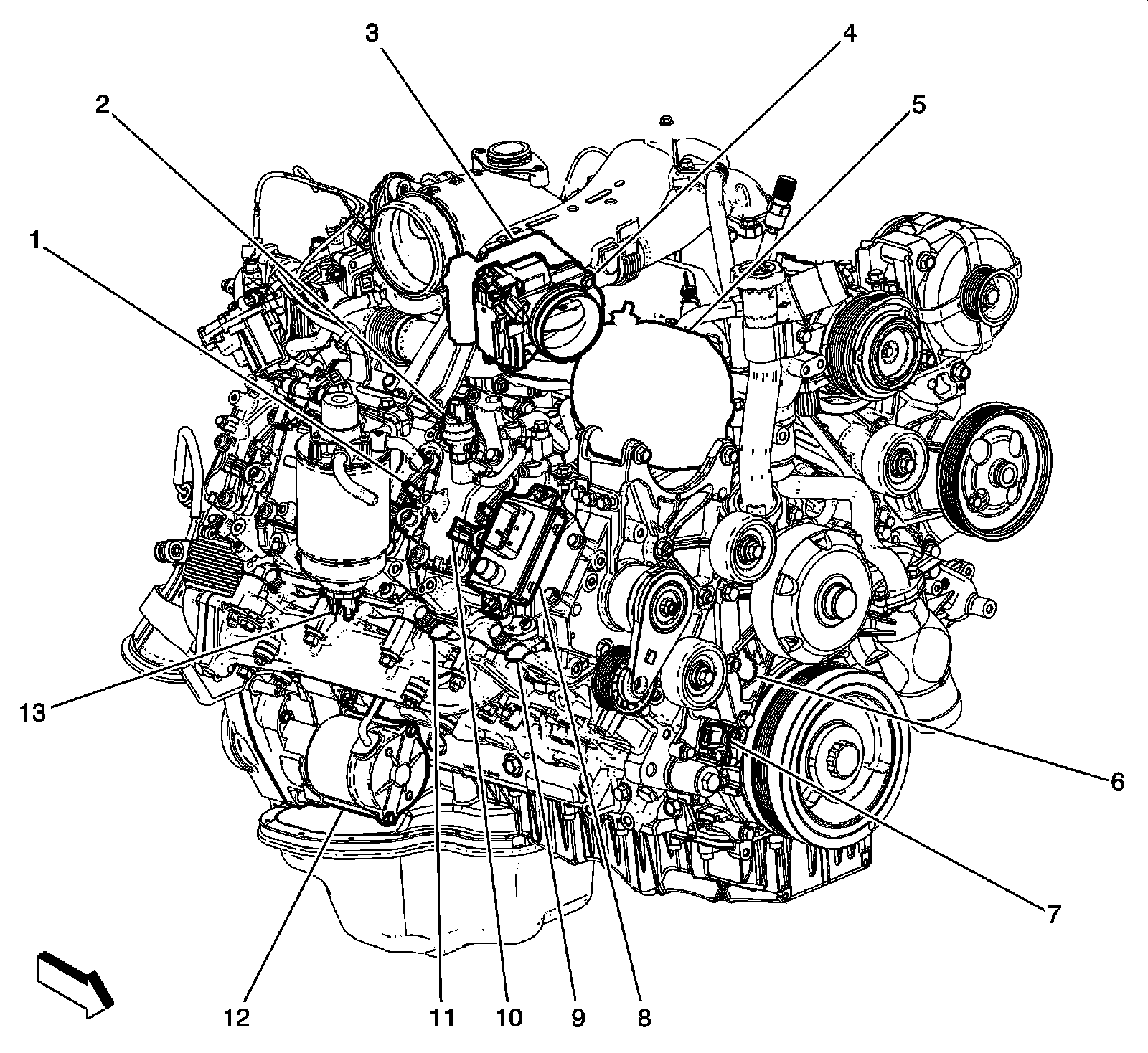

Right Front Side of the Engine Components (Diesel)




1 - Fuel Injector 3
2 - Fuel Filter Pressure Switch
3 - Intake Air Heater
4 - Intake Air Valve
5 - Generator - Auxiliary
6 - Camshaft Position (CMP) Sensor
7 - Crankshaft Position (CKP) Sensor
8 - Glow Plug Control Module
9 - Glow Plug 1
10 - Fuel Injector 1
11 - Glow Plug 3
12 - Starter Motor
13 - Water in Fuel Sensor
