Power Mirror Switch

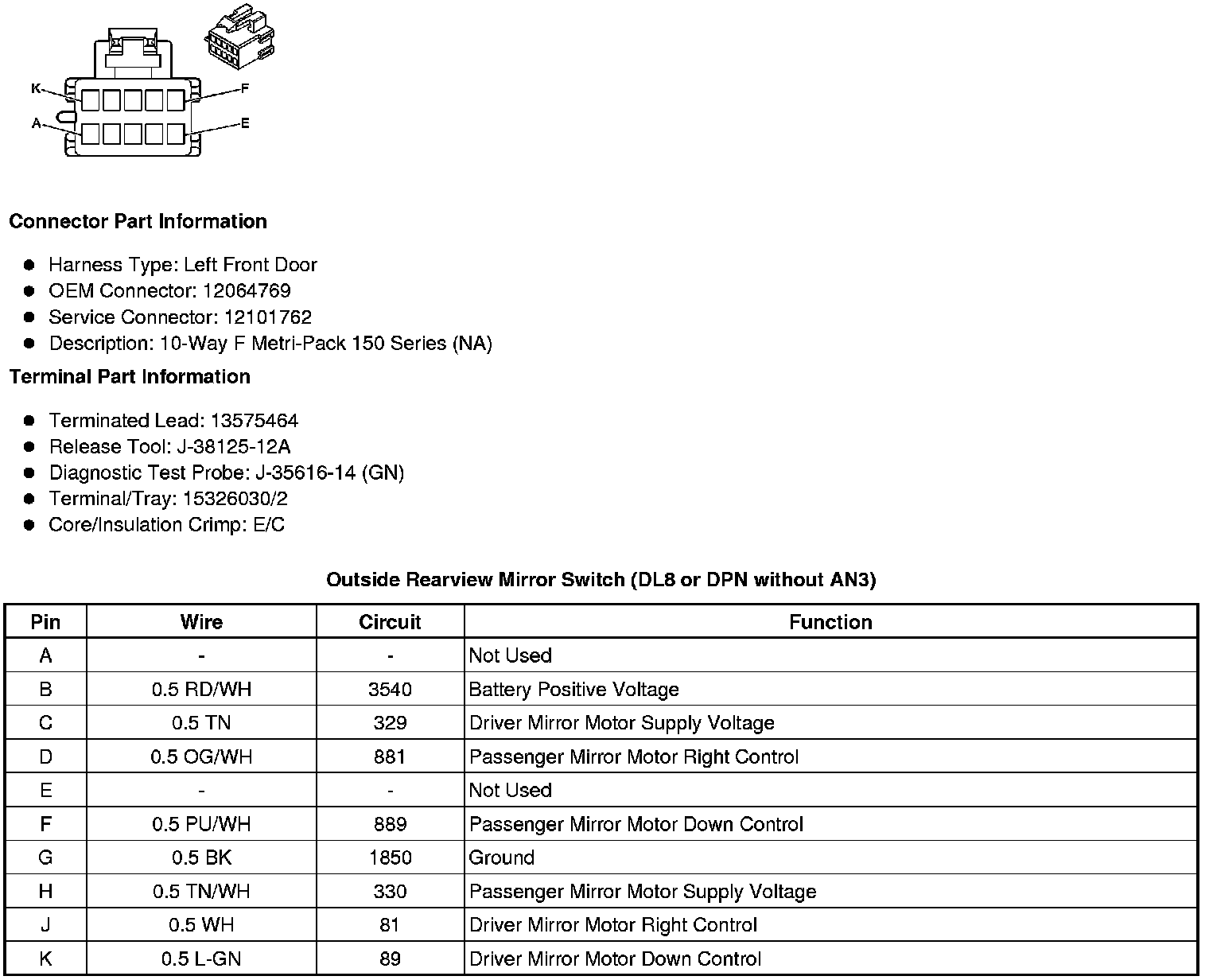

Component Connector End Views

Outside Rearview Mirror Switch (DL8 or DPN without AN3)
