Left Rear Frame and Underbody Components




Wheels/Vehicle Underbody Component Views

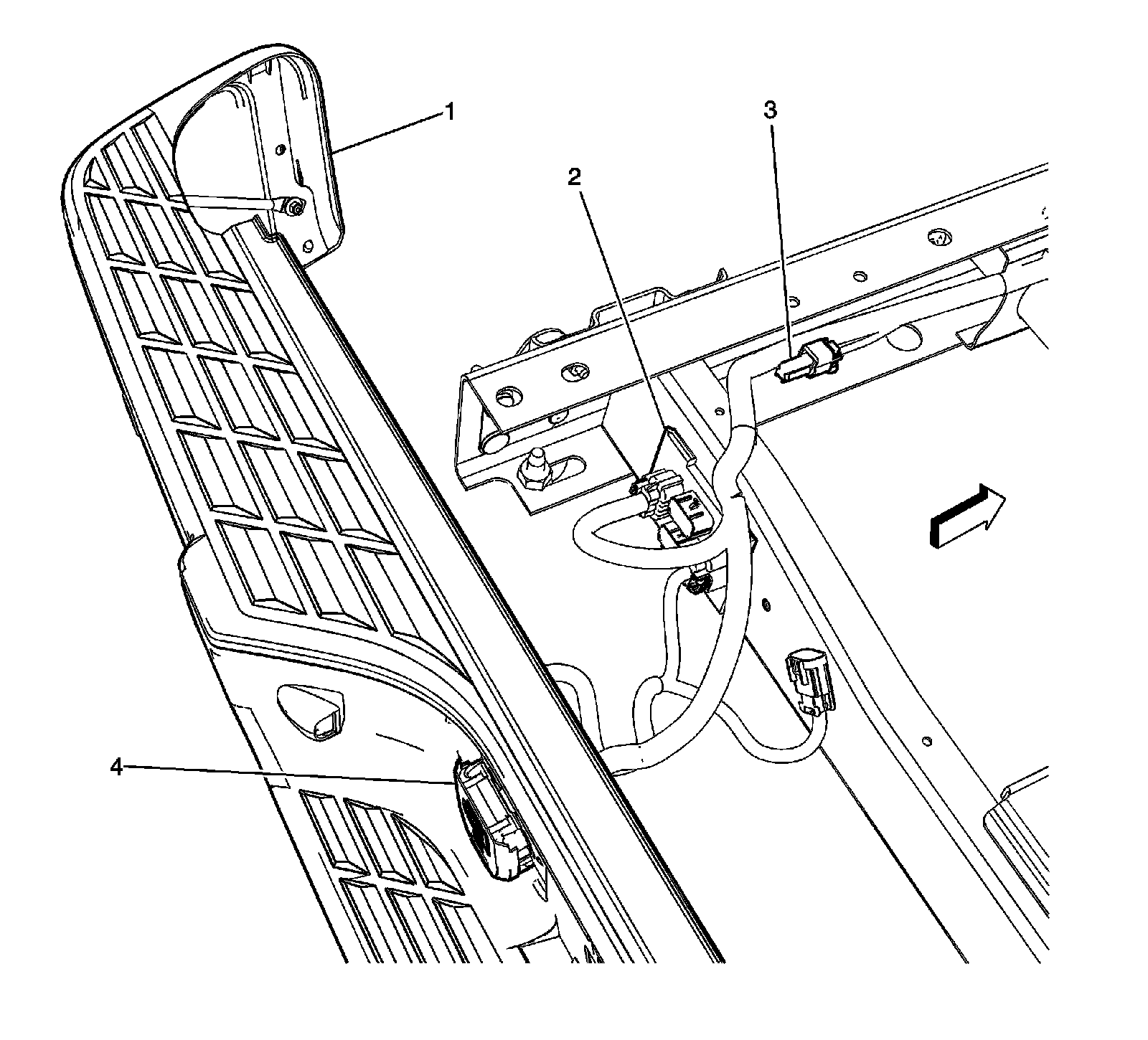

Left Rear Frame and Underbody Components - 2 of 2




1 - Rear Bumper
2 - Junction Block - Rear Lamps
3 - Data Link Resistor
4 - Trailer Connector (except MEX/EXP)
