Alternator: Locations

Powertrain Component Views

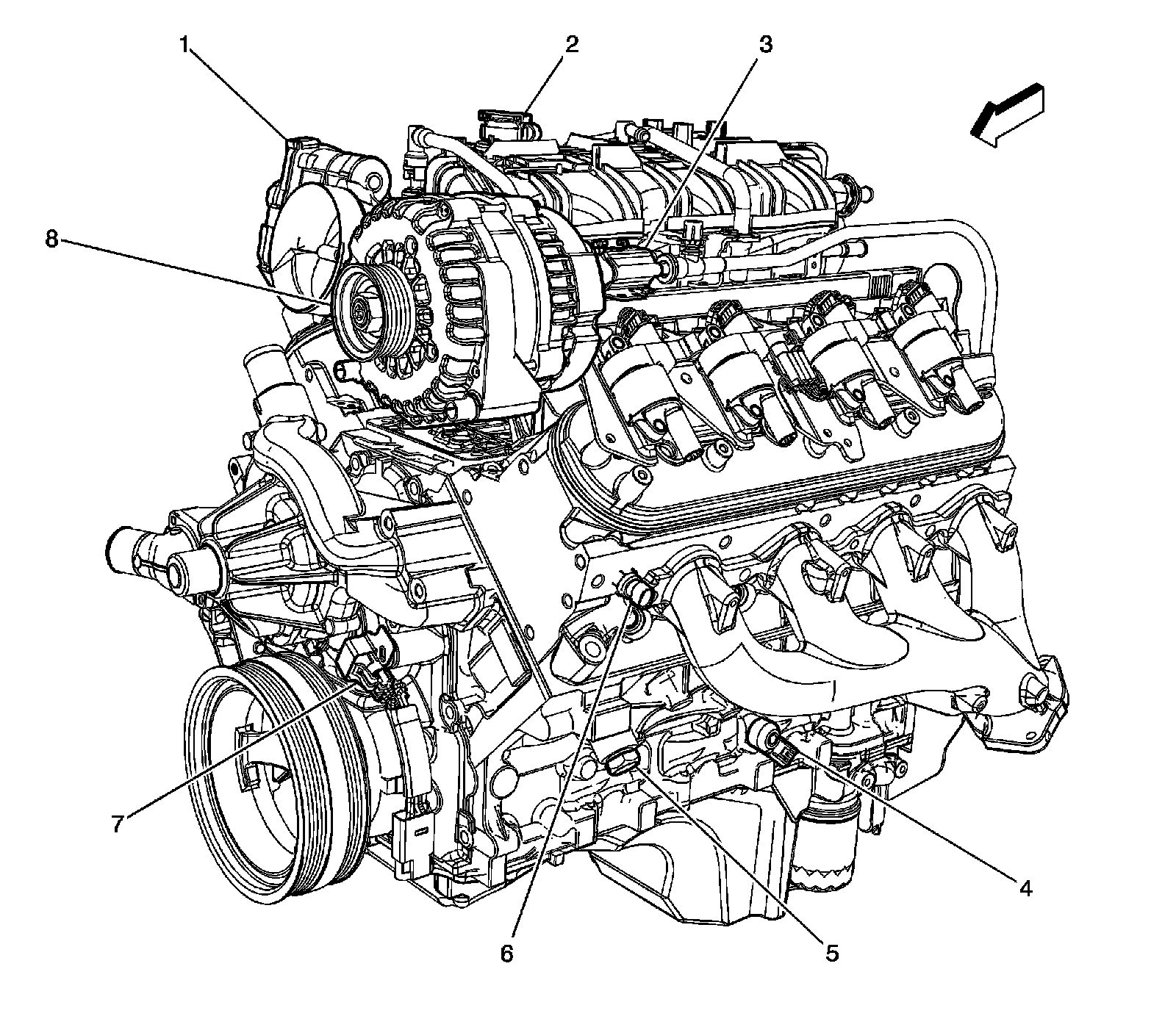

Front of the Engine Components (L20, L96, L9H, LC9 or LMG)




1 - Throttle Body
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Knock Sensor (KS) 1
5 - Engine Block Heater
6 - Engine Coolant Temperature (ECT) Sensor
7 - Camshaft Position (CMP) Sensor
8 - Generator
