Crankshaft Position Sensor: Locations

Powertrain Component Views

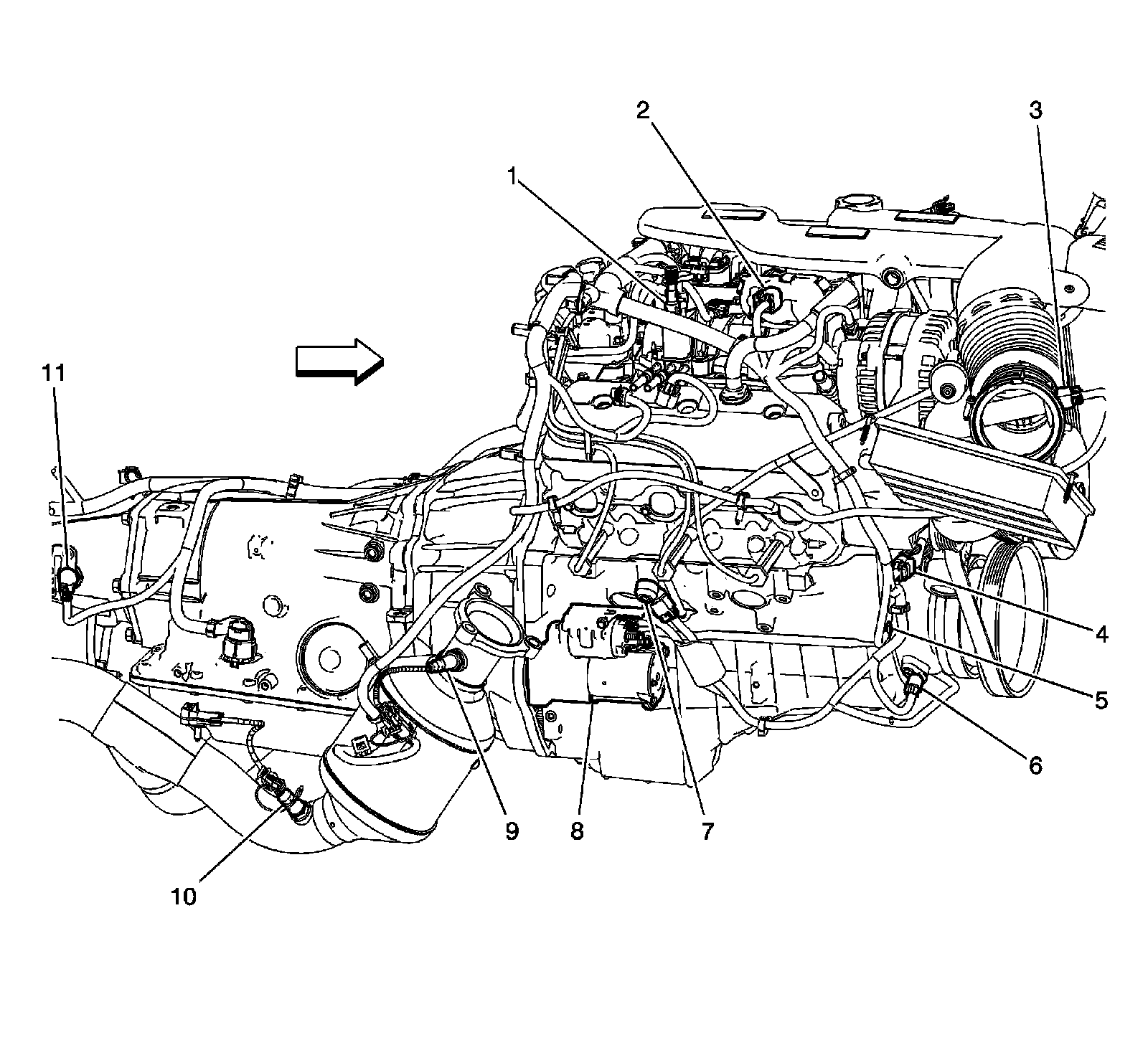

Right Side of the Engine Components (4.3L)





1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

2 - Throttle Body

3 - Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor

4 - X112

5 - G103

6 - Crankshaft Position (CKP) Sensor

7 - Knock Sensor (KS) 2

8 - Starter Motor

9 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

10 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

11 - Vehicle Speed Sensor (VSS) (M30/TZ0)
