Fuse Block - I/P Label
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Fuse Block - I/P Label

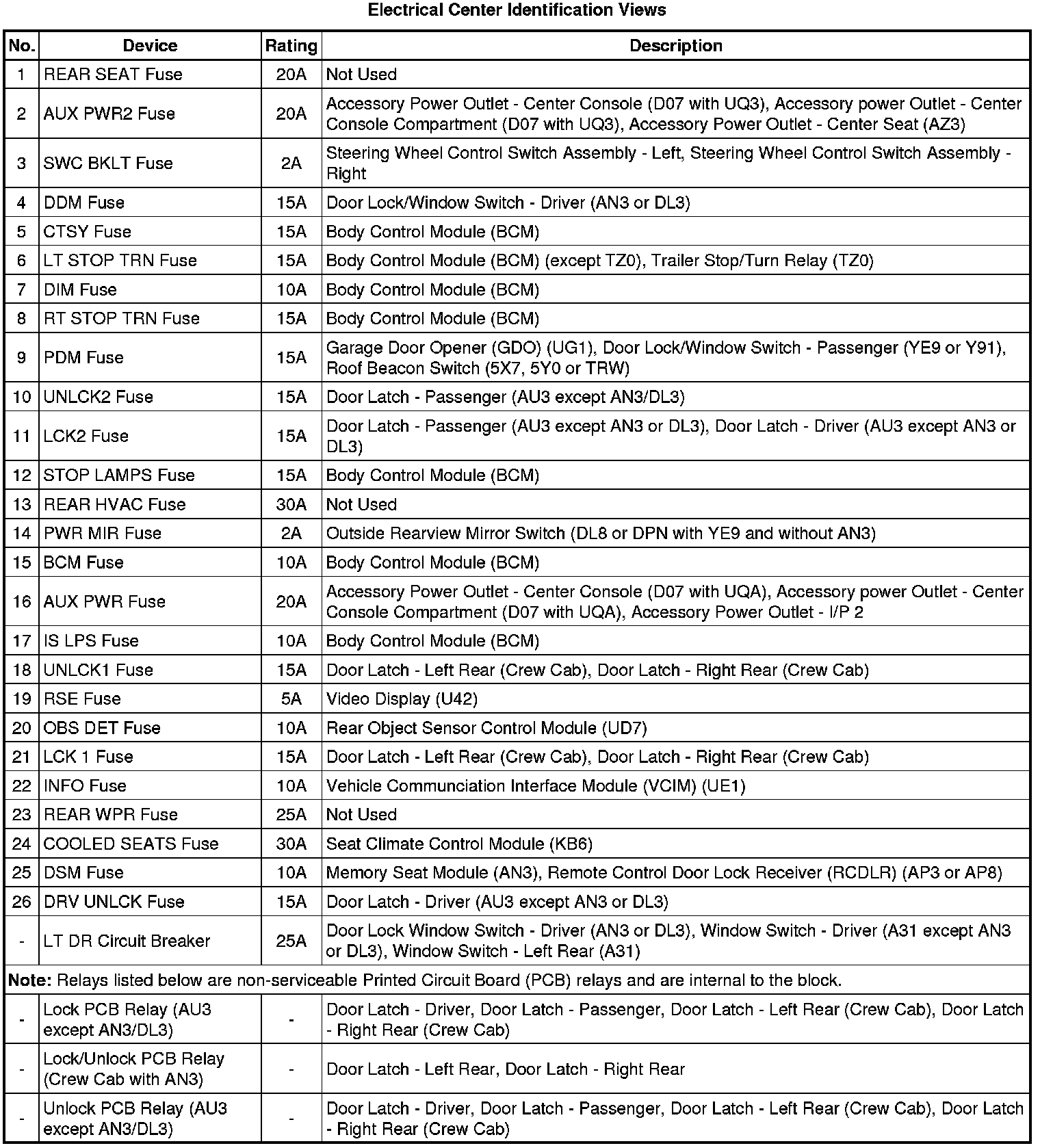

Electrical Center Identification Views
Fuse Block
- I/P Label
