Shift Lock Control Wiring Schematics

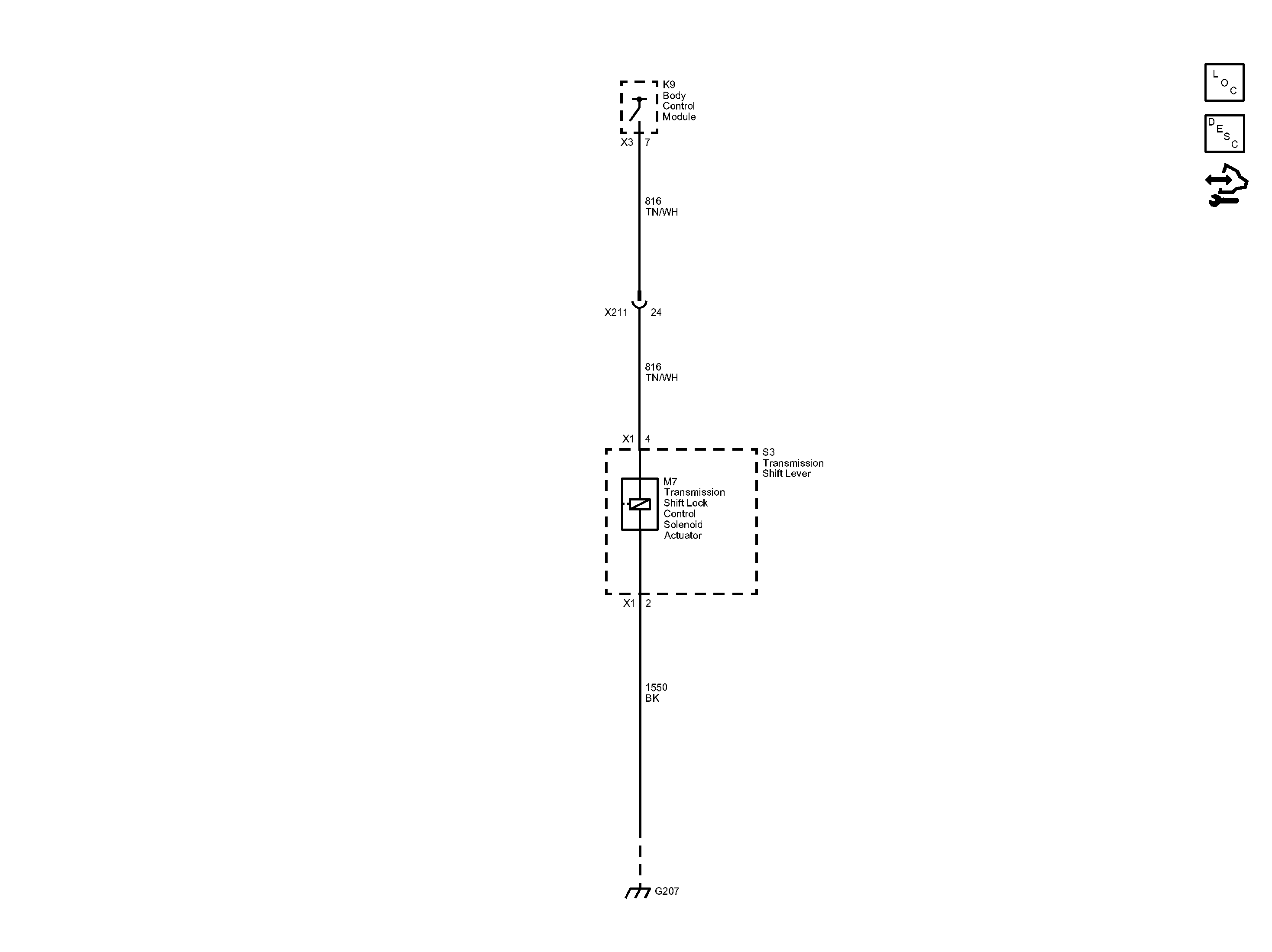

Fig 1: Shift Lock Control Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
