Theft Deterrent Module Replacement

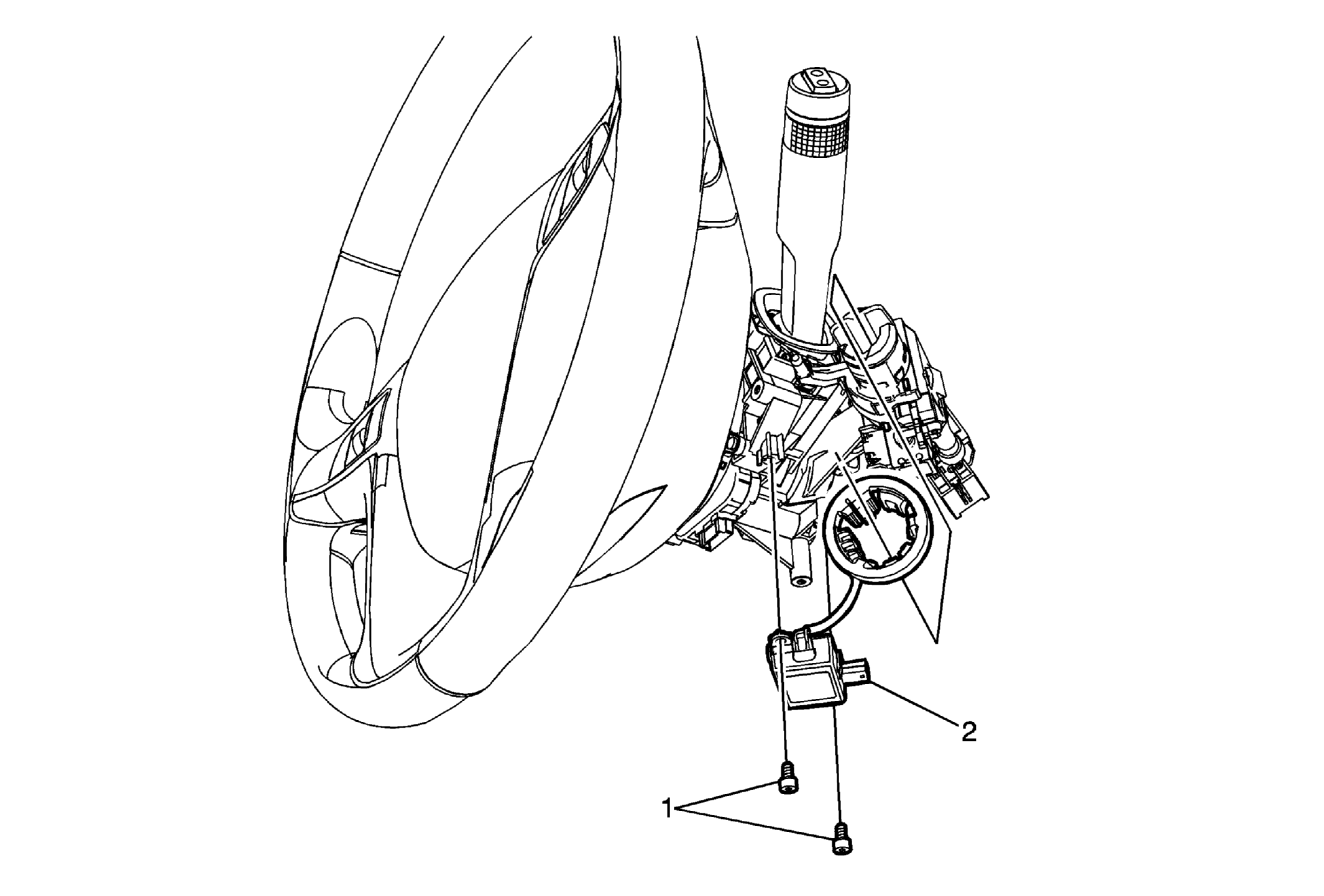

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column shrouds. Refer to Steering Column Shroud Replacement .
1	Theft Deterrent Module Bolt/Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the steering column shrouds. Refer to Steering Column Shroud Replacement .

Theft Deterrent Module Bolt/Screw (Qty: 2)

CAUTION:

Tighten
2 N.m (18 lb in)

Theft Deterrent Module

Procedure
