Low Speed GMLAN (1 of 2) Wiring Schematics

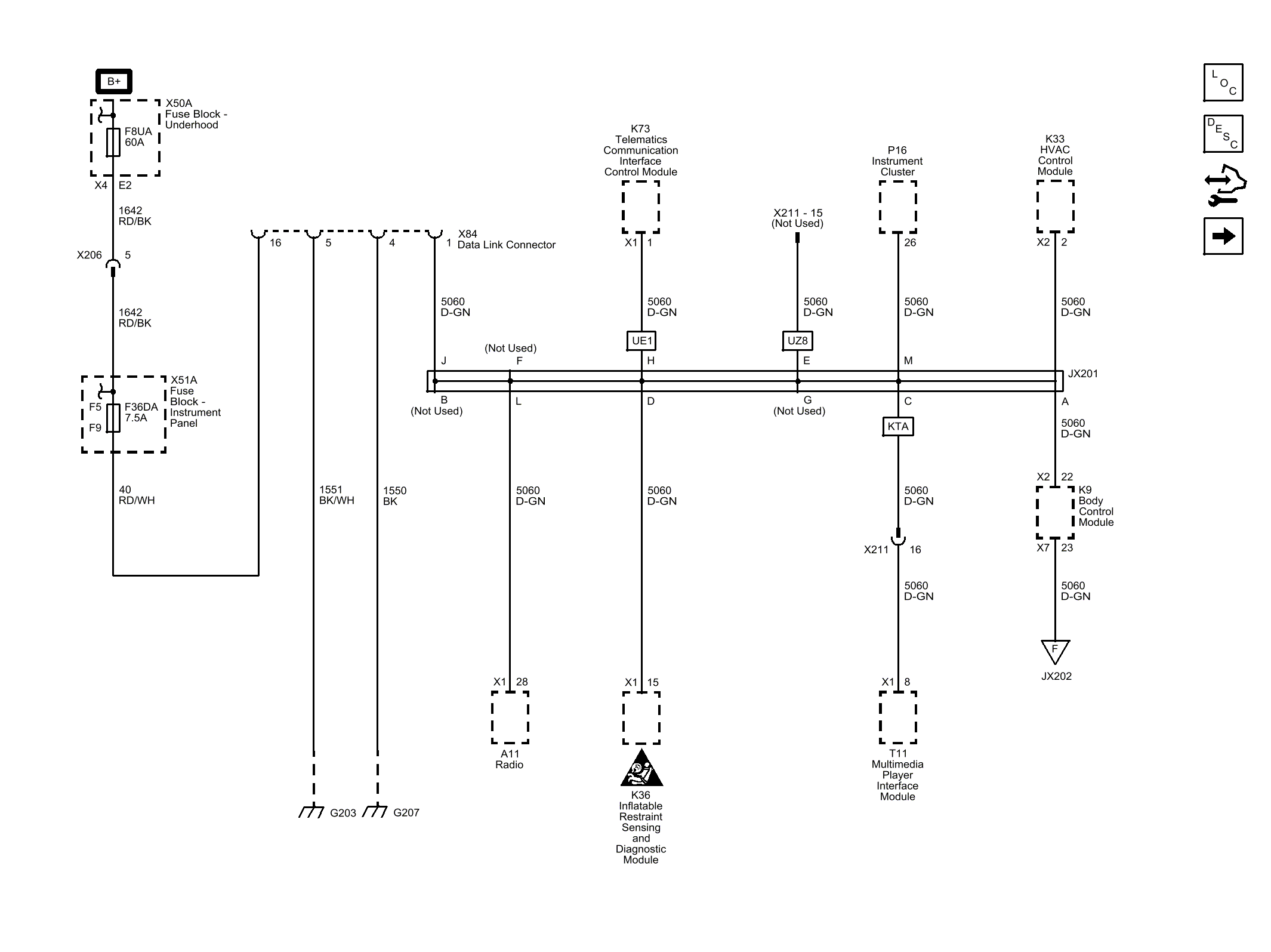

Fig 1: Low Speed GMLAN (1 of 2) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
