Radio Antenna Base Replacement

WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

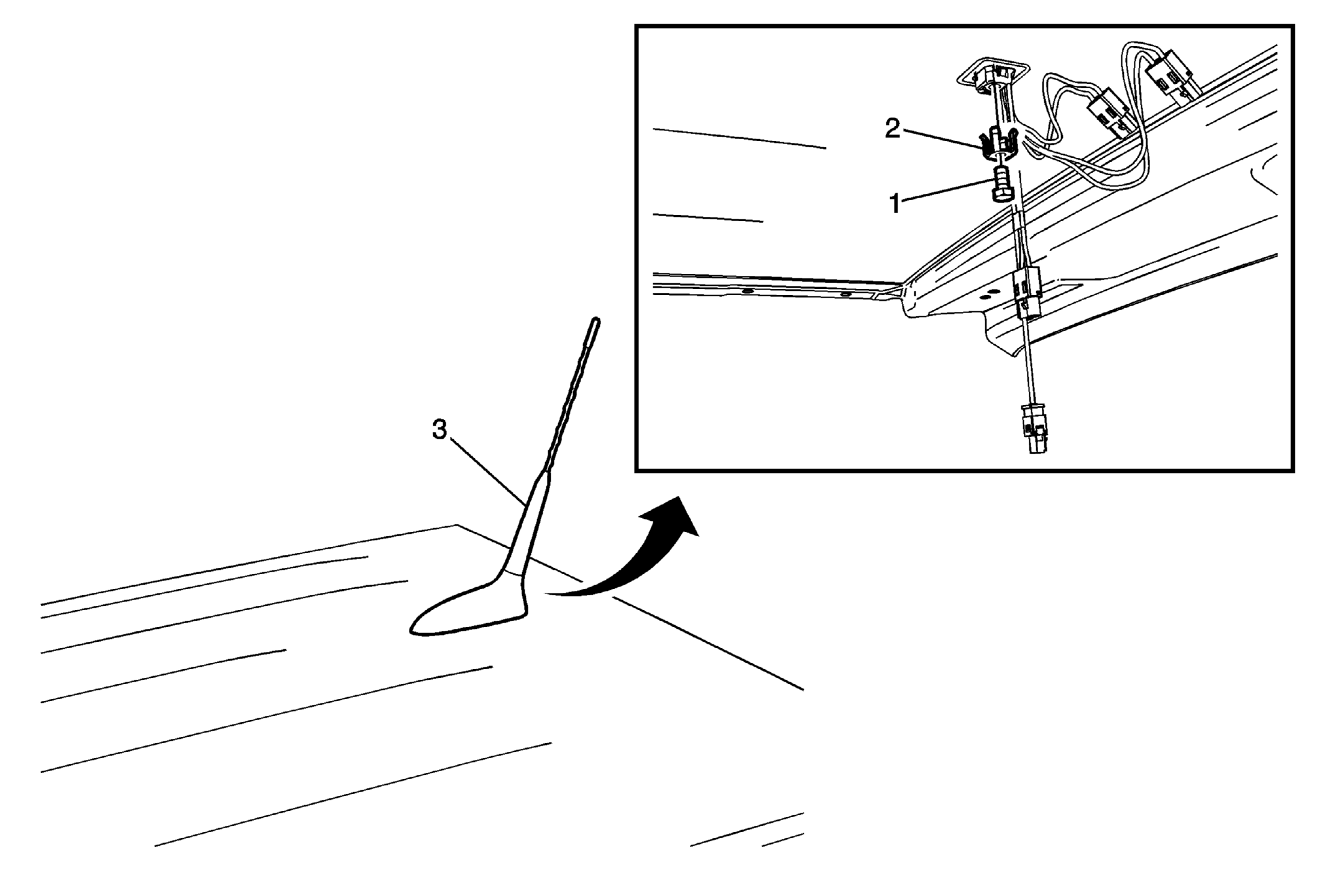

Fig 1: Radio Antenna Base
GM2244774Courtesy of GENERAL MOTORS COMPANY
Radio Antenna Base Replacement

Callout Component Name
Preliminary Procedure
Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement .
1 Radio Antenna Base Fastener
CAUTION:

Refer to Fastener Caution .

2 Radio Antenna Base Retainer
Procedure
Use a new retainer.
3 Radio Antenna Base Assembly
Procedure
Disconnect the electrical connectors.
