Blower Motor Control Module Replacement

WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

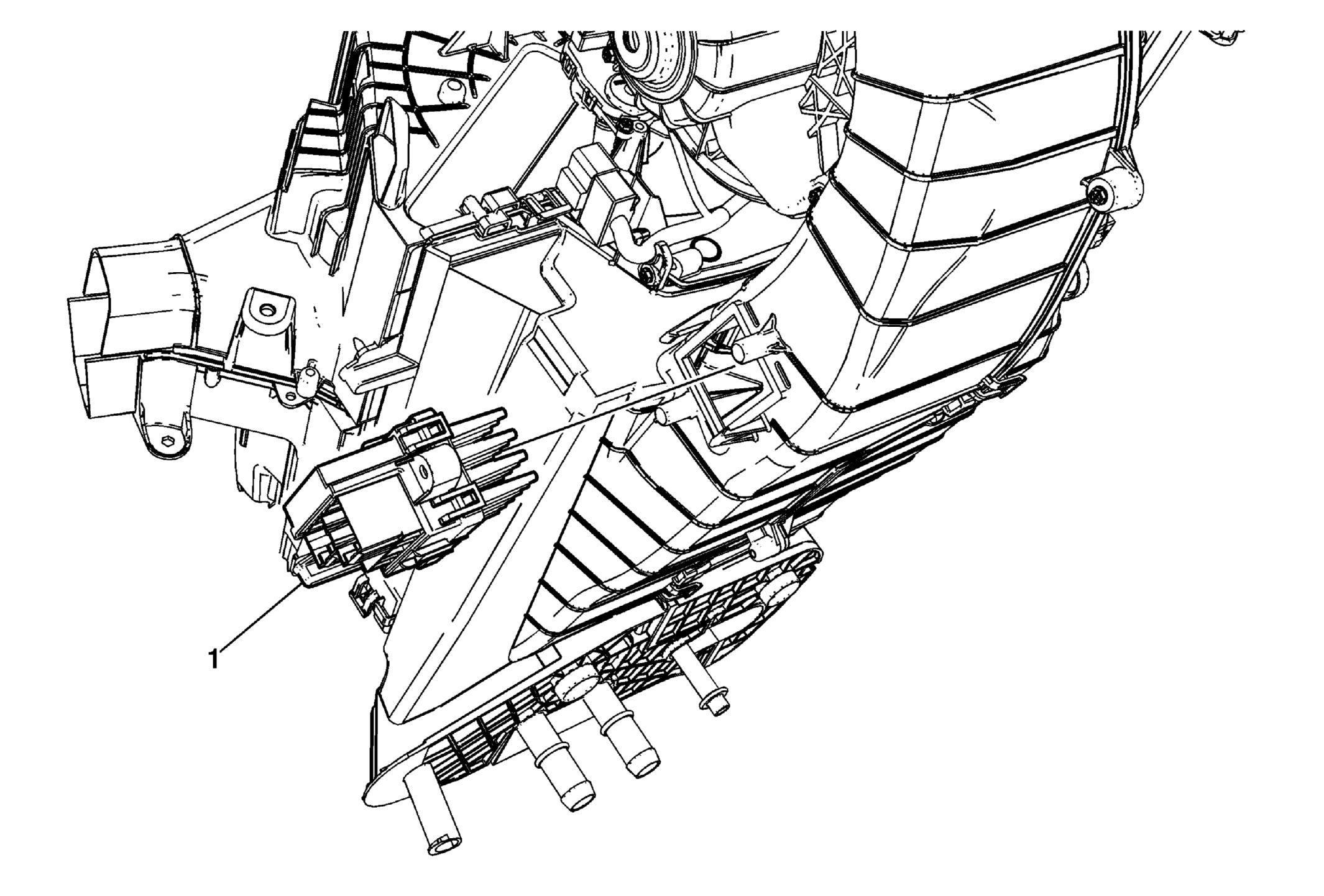

Fig 1: Blower Motor Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel insulator panel right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Terrain) , Instrument Panel Insulator Panel Replacement - Right Side (Equinox) . Disconnect the heater and blower and air conditioning control module electrical connectors.
1	Heater and Blower and Air Conditioning Control Module.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel insulator panel right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Terrain) , Instrument Panel Insulator Panel Replacement - Right Side (Equinox) .
Disconnect the heater and blower and air conditioning control module electrical connectors.

Heater and Blower and Air Conditioning Control Module.
