Enable Serial Data

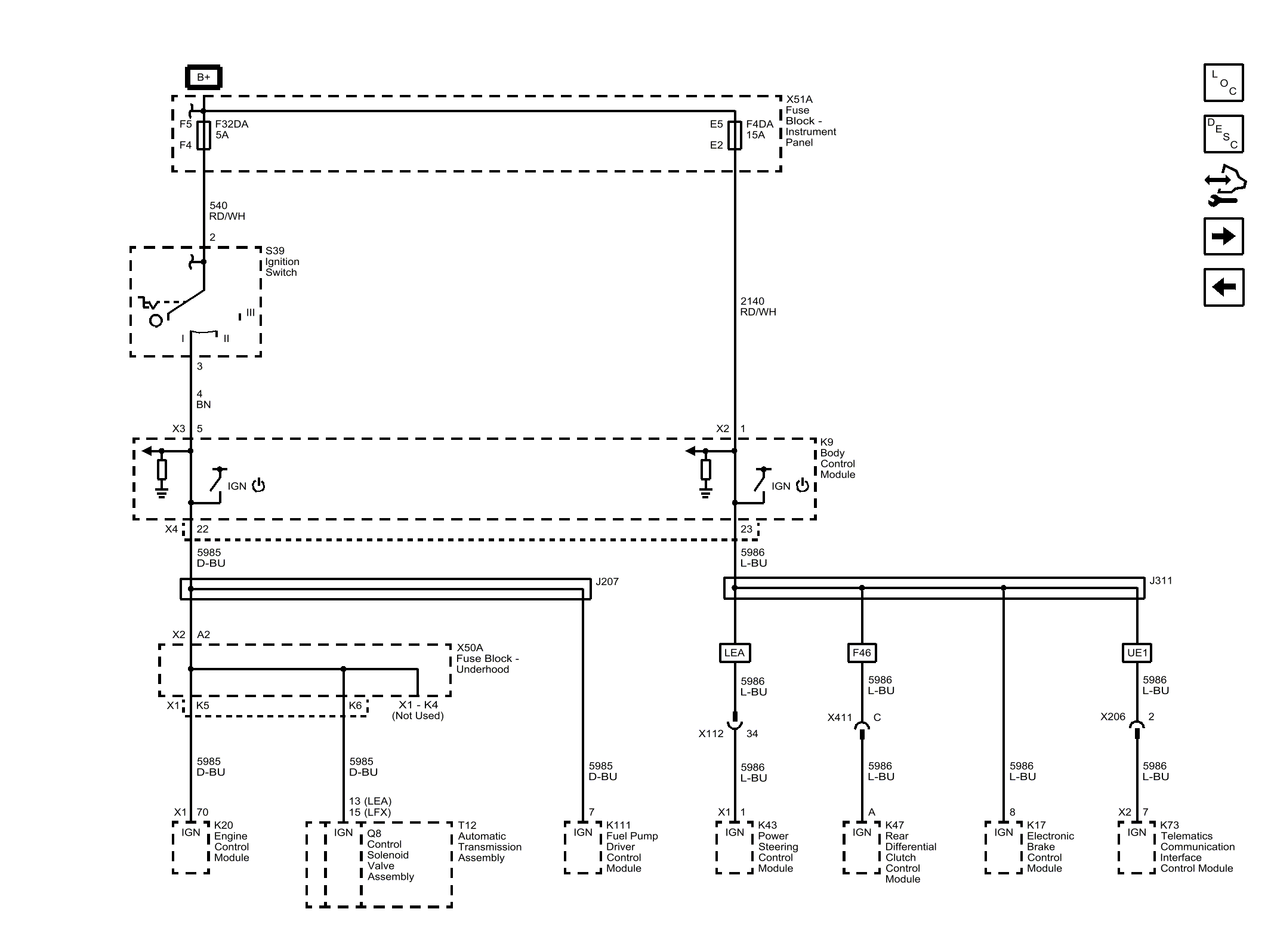

Fig 1: Enable Serial Data
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
