Collision Alert Indicators and Safety Seat (UEU and UHX)

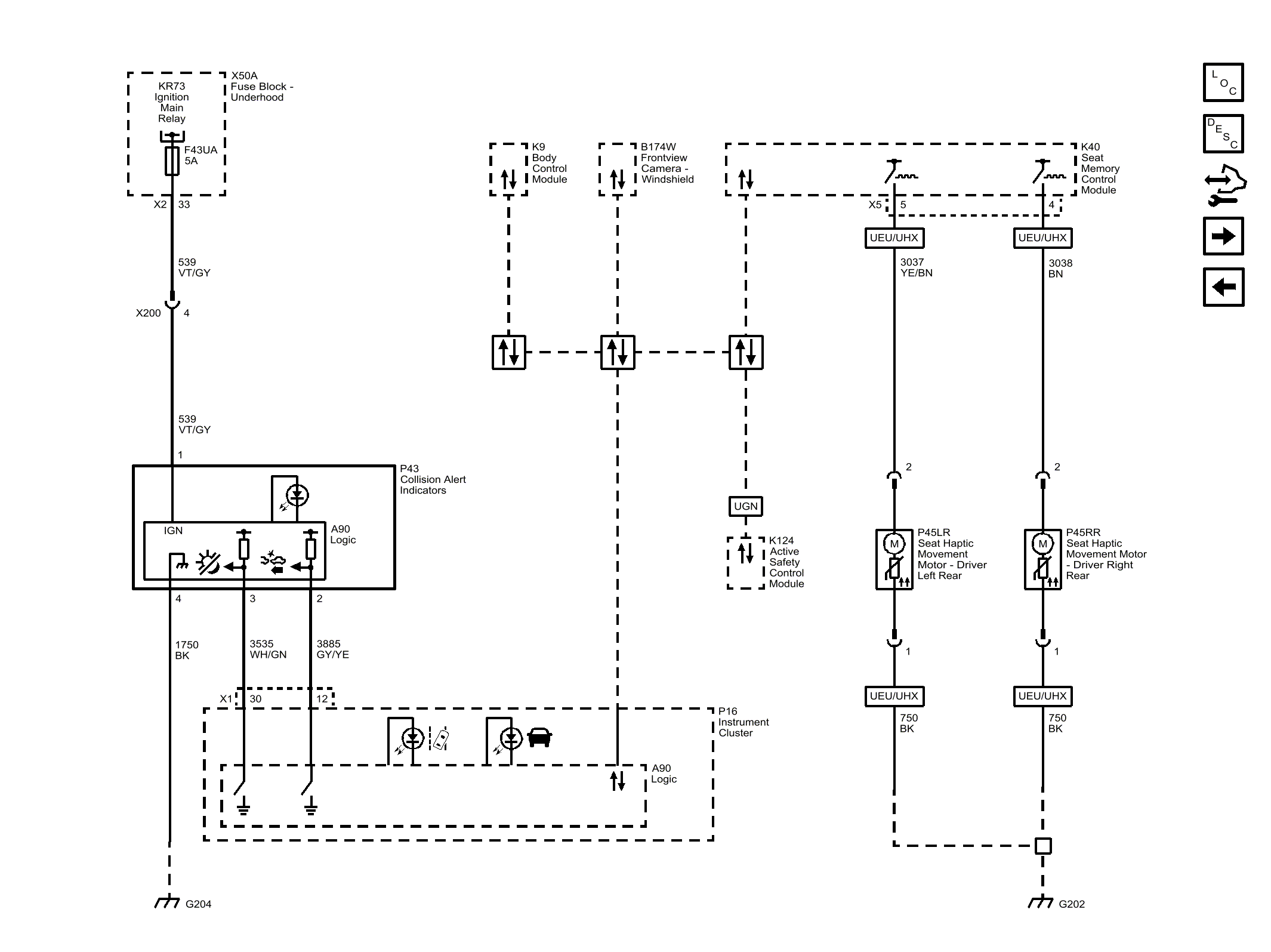

Fig 1: Collision Alert Indicators and Safety Seat (UEU and UHX)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
