Radio Replacement

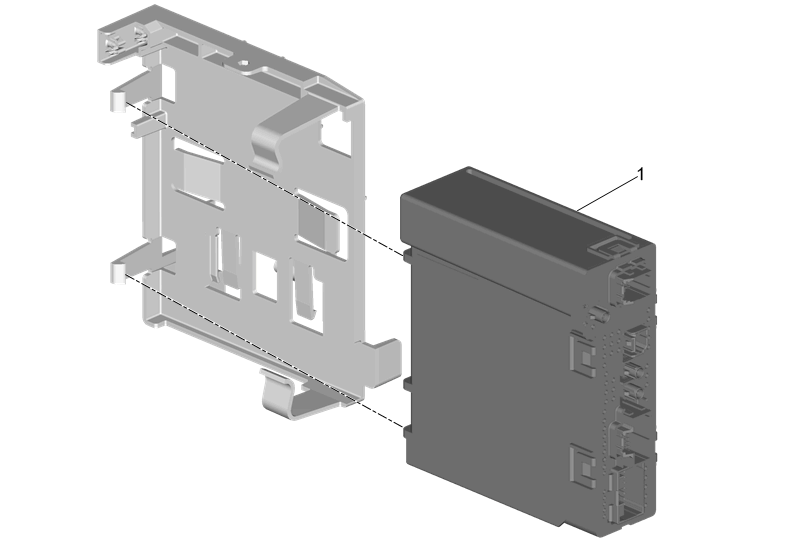

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Radio Bracket. Refer to Radio Bracket Replacement
1	Radio Procedure Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Radio Bracket. Refer to Radio Bracket Replacement

Radio

Procedure

Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
