Single Charge Only 3rd Row Receptacle Replacement

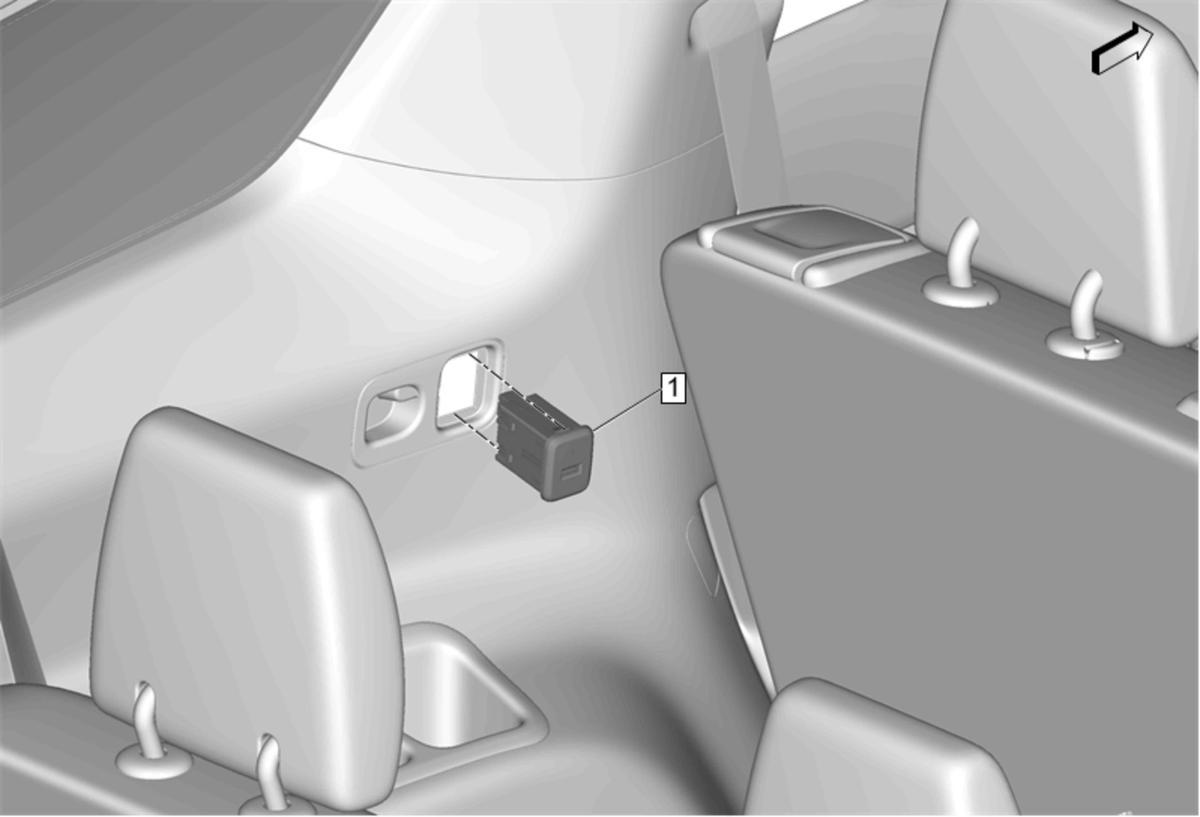

Fig 1: Single Charge Only 3rd Row Receptacle
GM4409515Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Single Charge Only 3rd Row Receptacle

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connector.
