Removal Procedure
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
- Remove the right front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

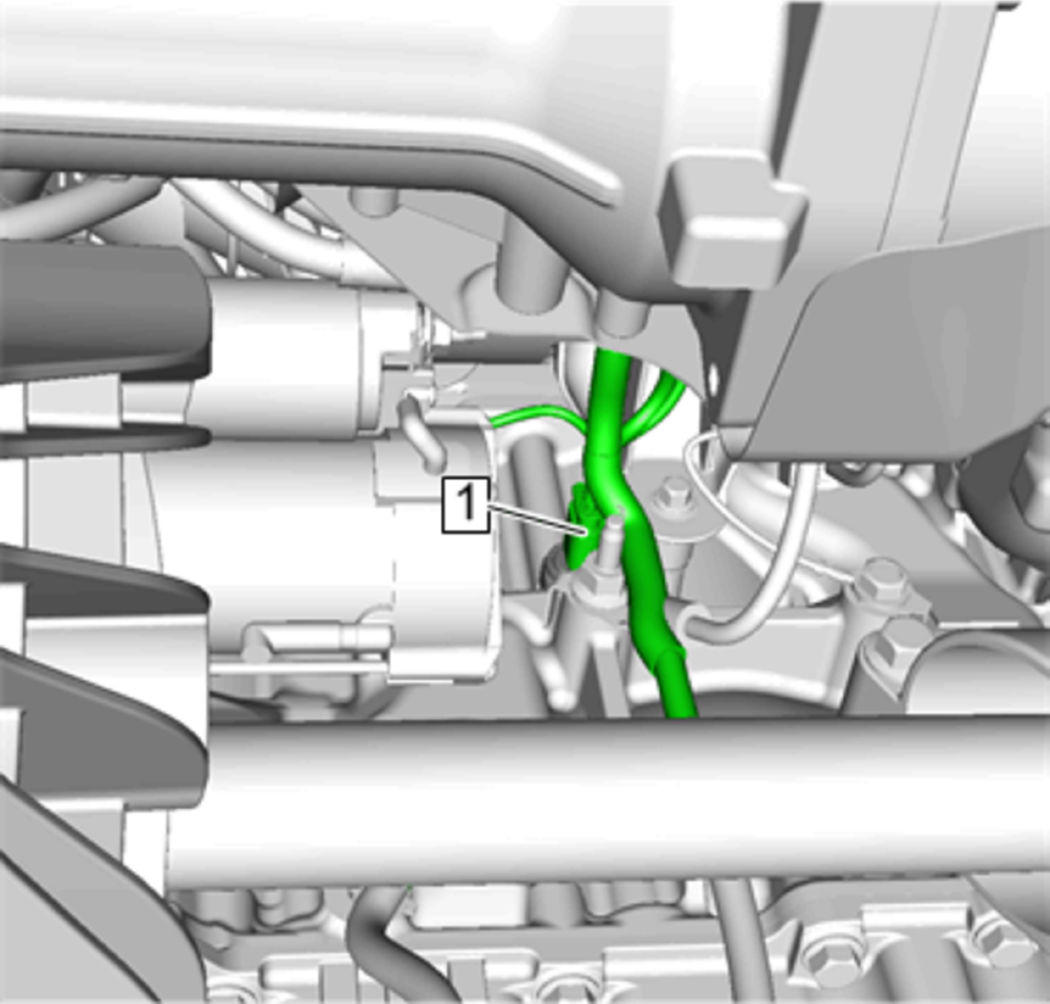

- Disconnect Electrical Connector (1)
Courtesy of GENERAL MOTORS COMPANY

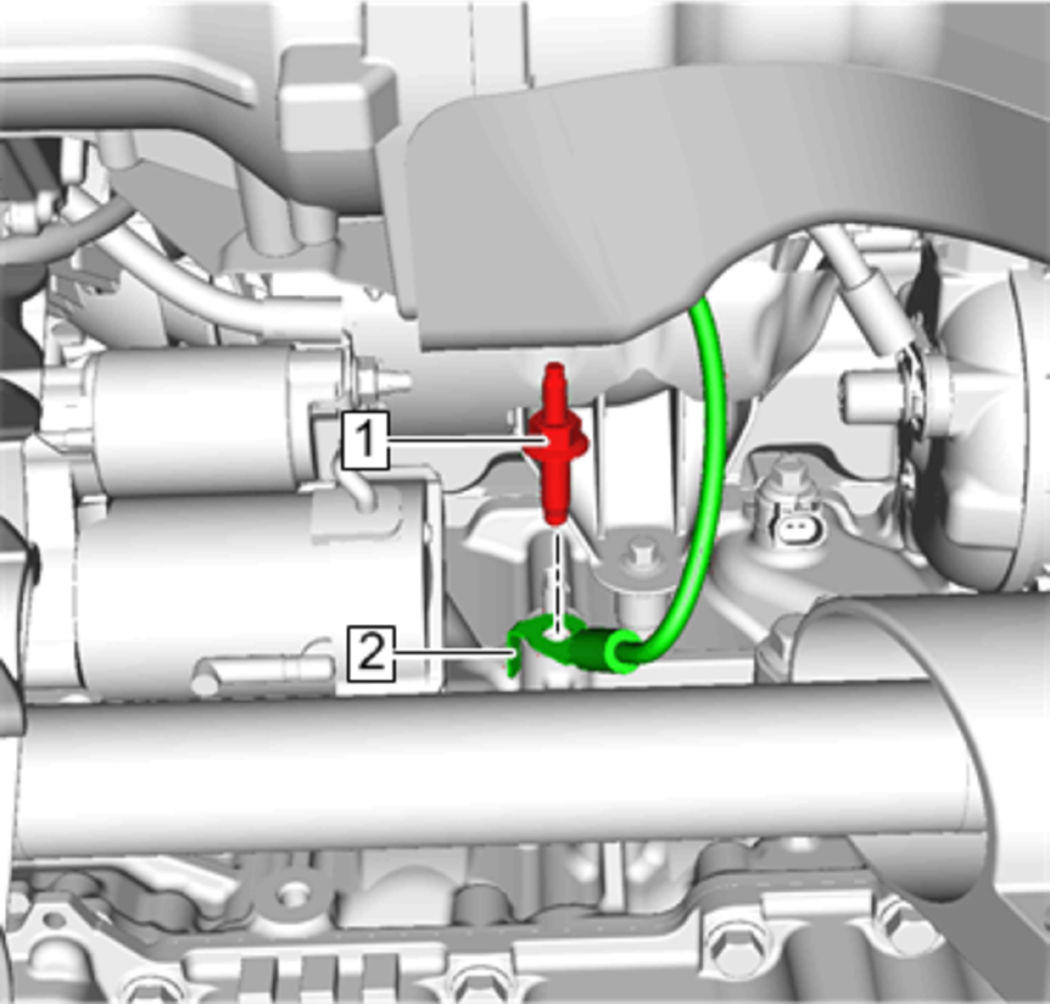

- Remove Battery Negative Cable Ground Stud (1)
- Reposition Battery Cable (2)
Courtesy of GENERAL MOTORS COMPANY

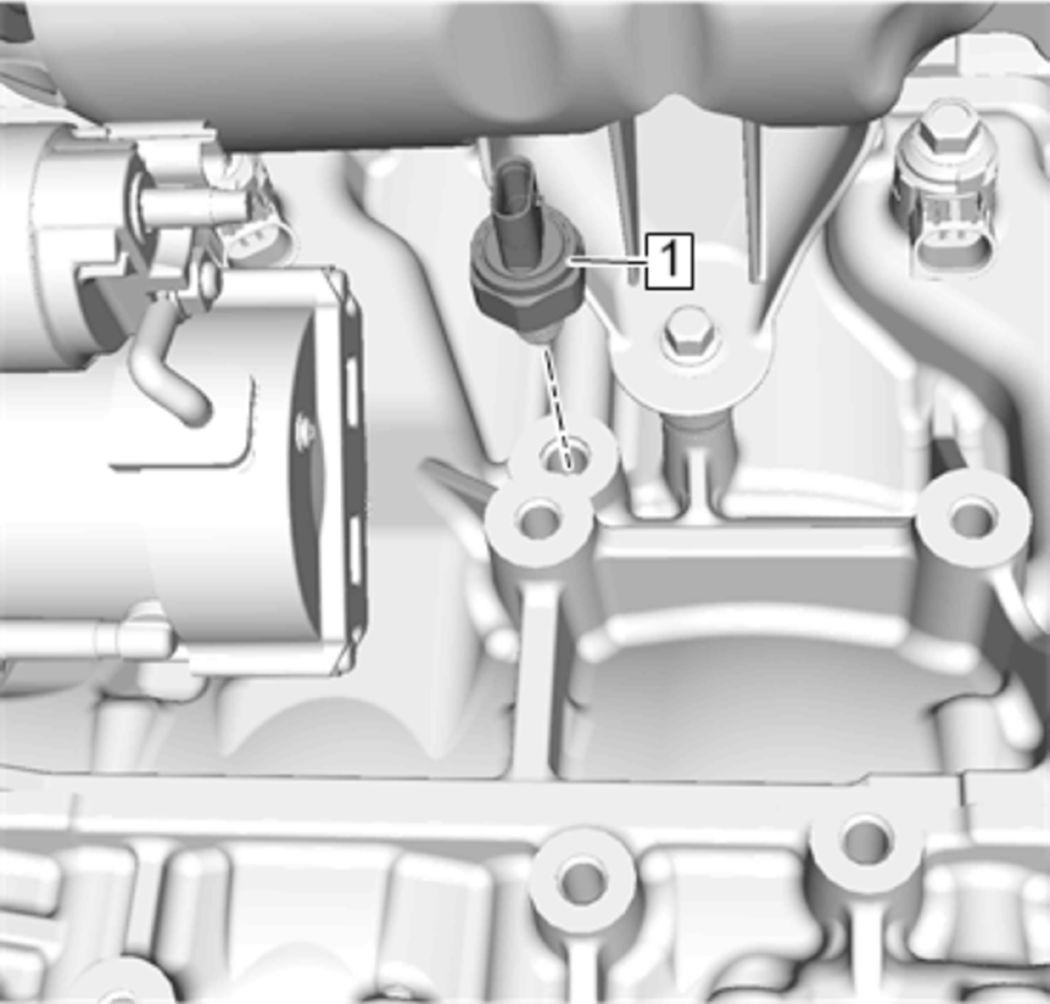

- Remove Engine Oil Pressure Sensor (1)
