Fuel Tank Pressure Sensor Replacement (AWD)

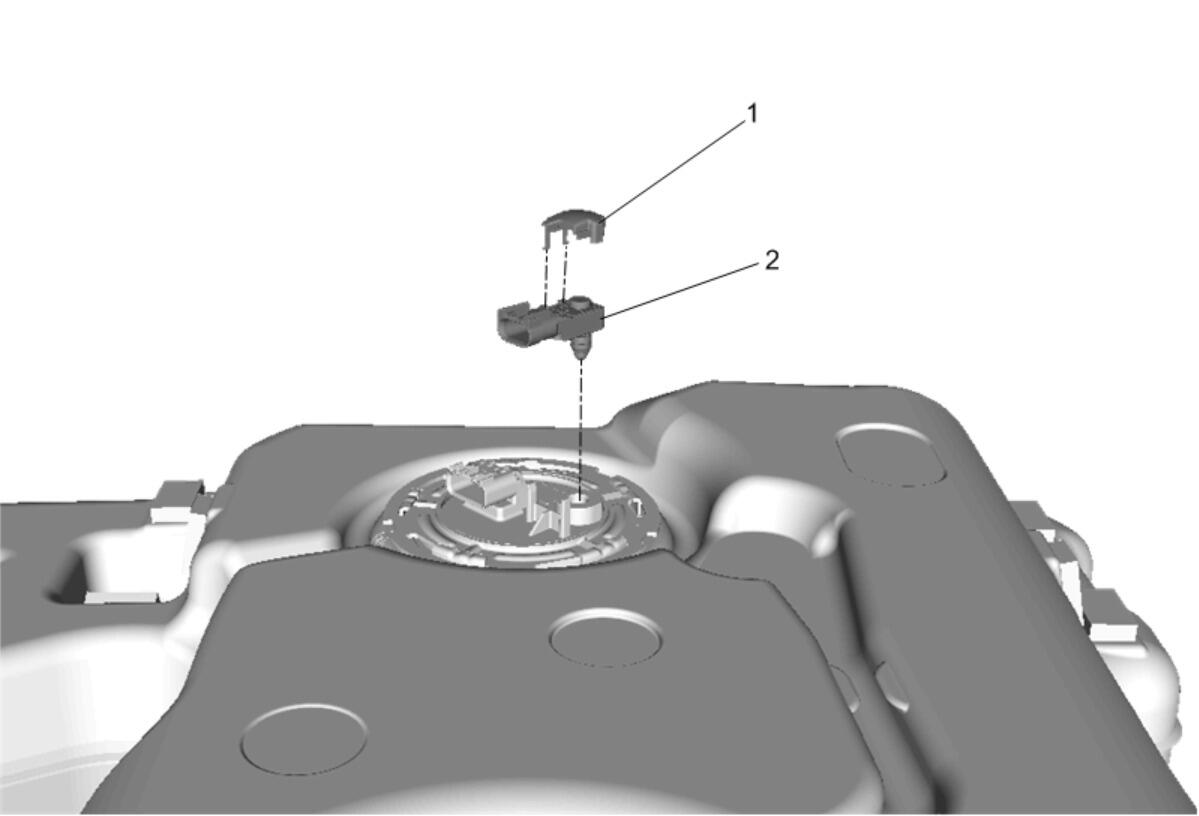

Fig 1: Fuel Tank Pressure Sensor (AWD)
GM4293931Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Remove Fuel Tank. Refer to Fuel Tank Replacement (AWD)
1 Fuel Tank Pressure Sensor Cover
2 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
