Mode Control Cam Cover Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

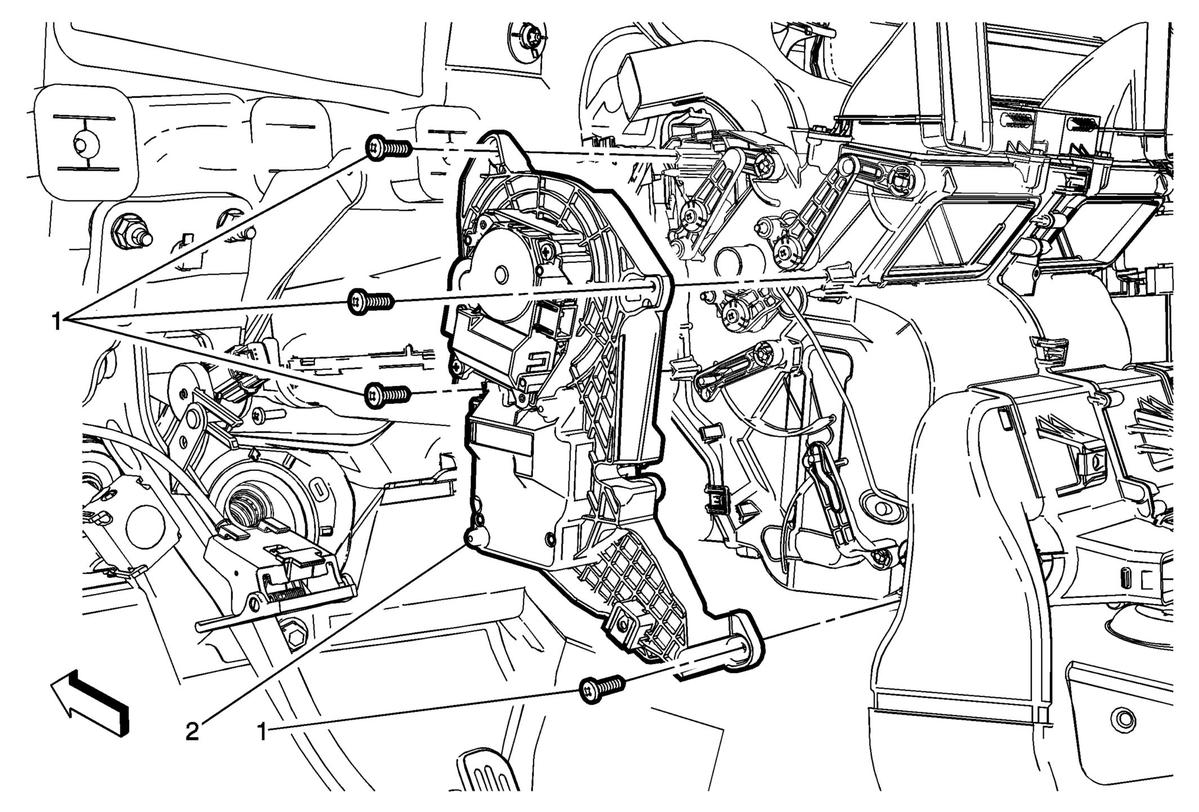

Fig 1: Mode Control Cam Cover (CJ2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air distributor lower duct assembly. Refer to Air Distributor Lower Duct Replacement .
1	Heater and Air Conditioning Mode Control Cam Cover Fastener (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Heater and Air Conditioning Mode Control Cam Cover Procedures Disconnect the actuator electrical connectors. Remove the mode control valve actuator. Refer to Mode Valve Actuator Replacement . Remove the temperature valve actuator. Refer to Temperature Valve Actuator Replacement - Left Side . Transfer all the necessary components.

Callout

Component Name

Preliminary Procedure
Remove the air distributor lower duct assembly. Refer to Air Distributor Lower Duct Replacement .

Heater and Air Conditioning Mode Control Cam Cover Fastener (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Heater and Air Conditioning Mode Control Cam Cover

Procedures

Disconnect the actuator electrical connectors.
Remove the mode control valve actuator. Refer to Mode Valve Actuator Replacement .
Remove the temperature valve actuator. Refer to Temperature Valve Actuator Replacement - Left Side .
Transfer all the necessary components.
