Installation Procedure
- Thoroughly clean the wiring harness electrical connector of corrosion.
- Using a small brush, apply commercially available dielectric grease to the interior of the wiring harness electrical connector and connector terminal pins.
Courtesy of GENERAL MOTORS COMPANY
- Install Wiring Harness Connector (1)
Courtesy of GENERAL MOTORS COMPANY

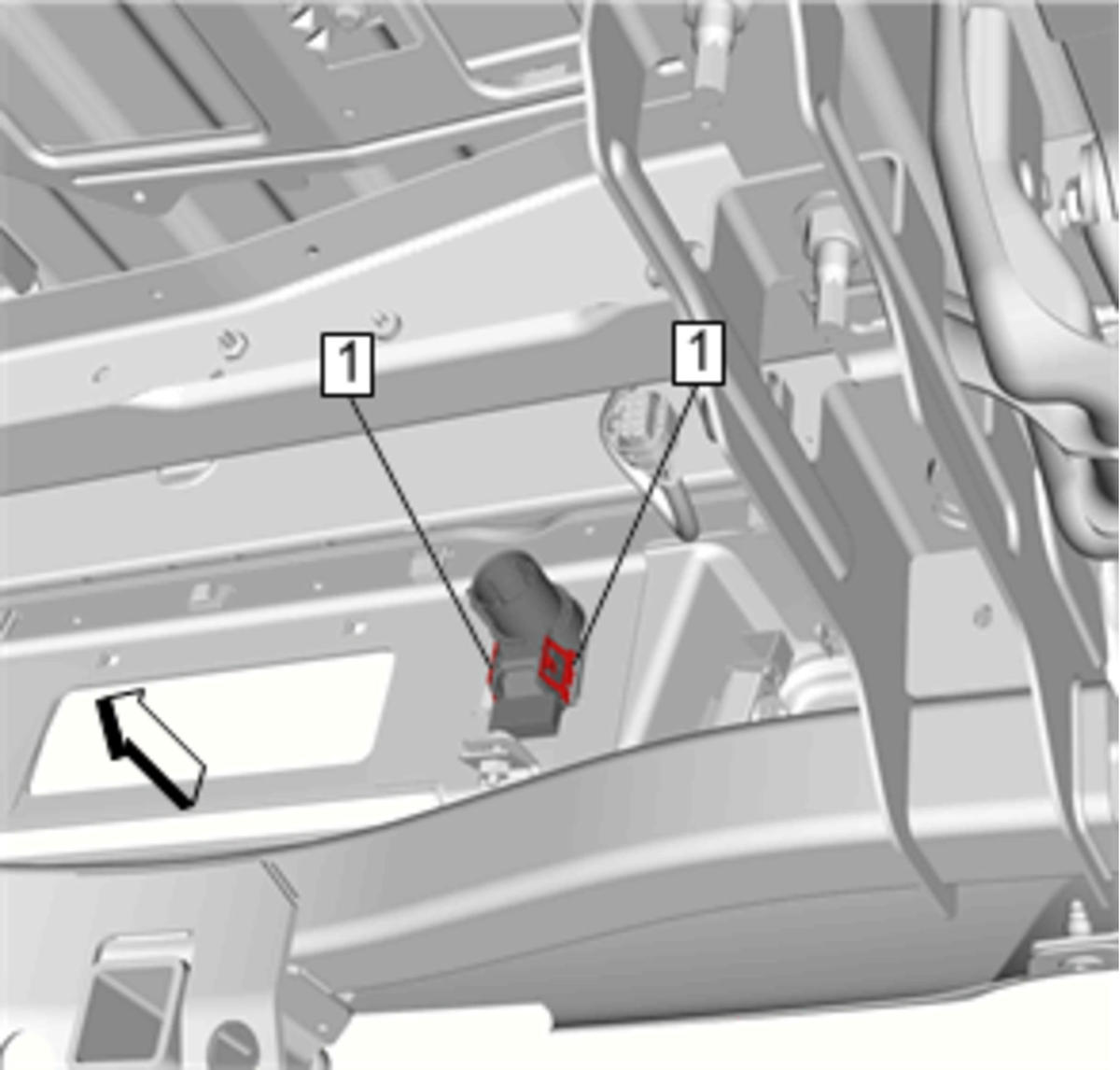

- Engage Retainer (1).
- Connect the wiring harness connector electrical connector.
