Installation Procedure

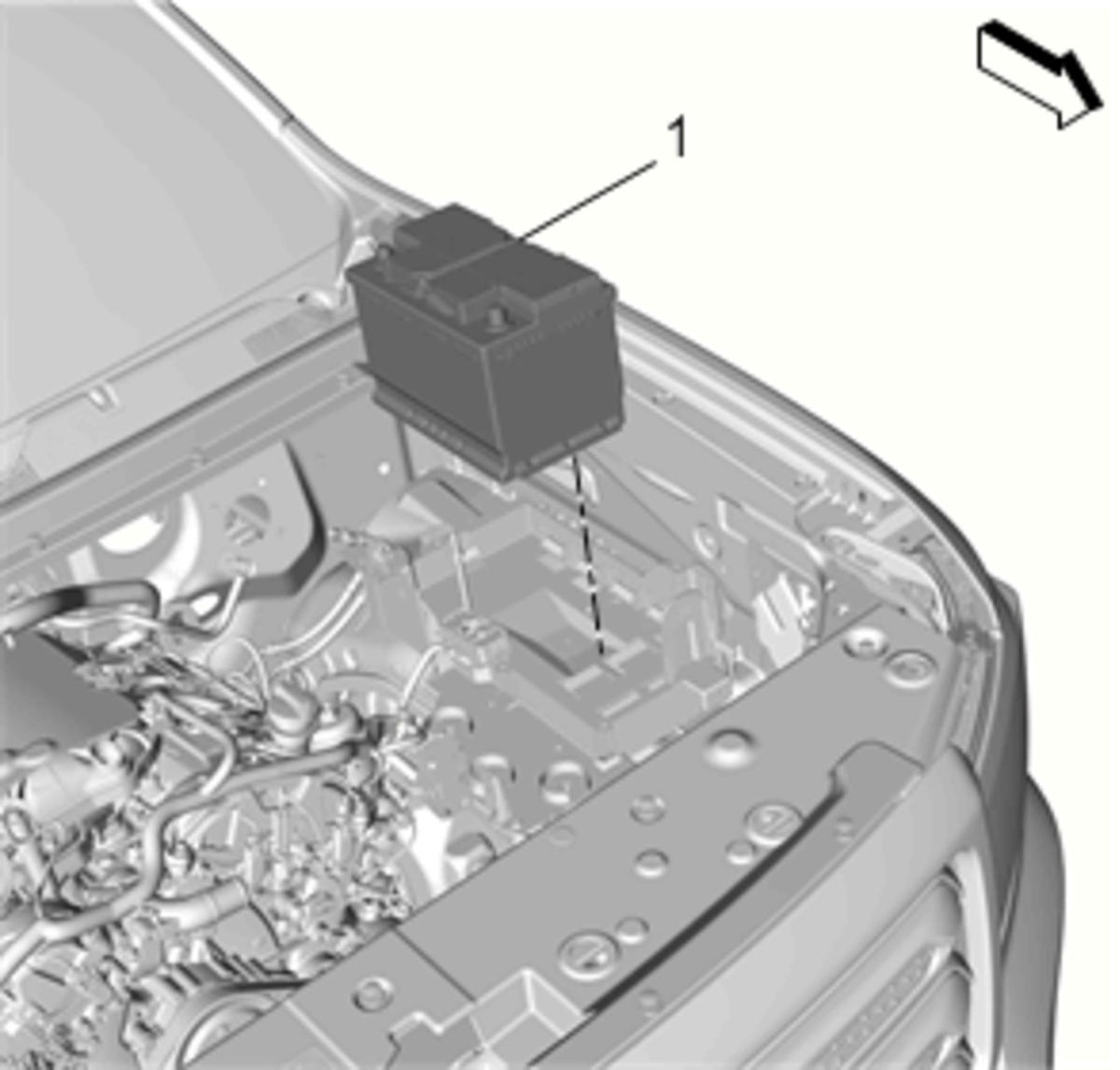

    Fig 1: Battery
    GM3807220Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery. (1)

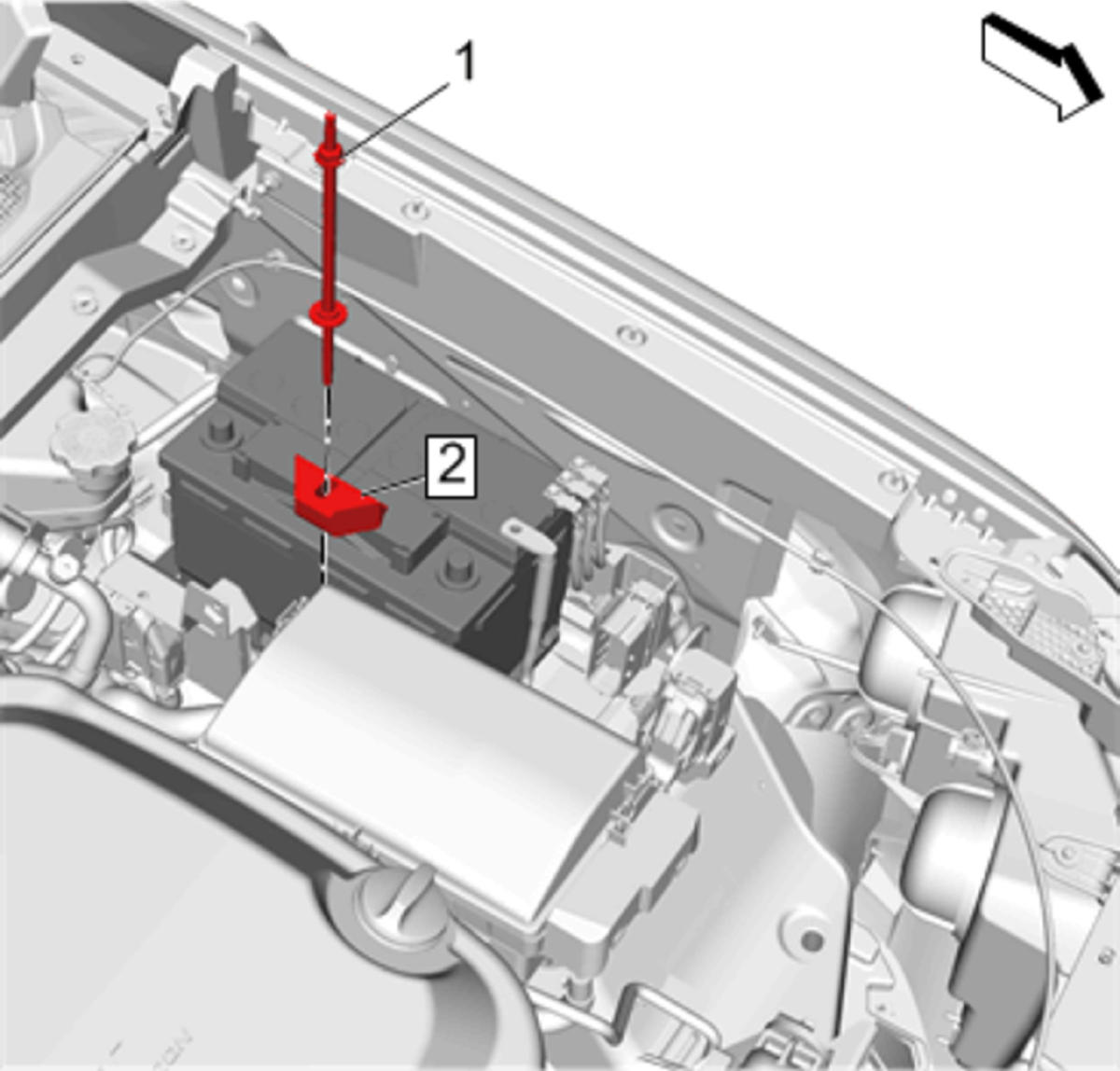

    2. Fig 2: Hold Down Retainer
    GM4565928Courtesy of GENERAL MOTORS COMPANY
  2. Install Battery Hold Down Retainer (2)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install Battery Hold Down Retainer Rod (1) and tighten 22 N.m (16 lb ft)

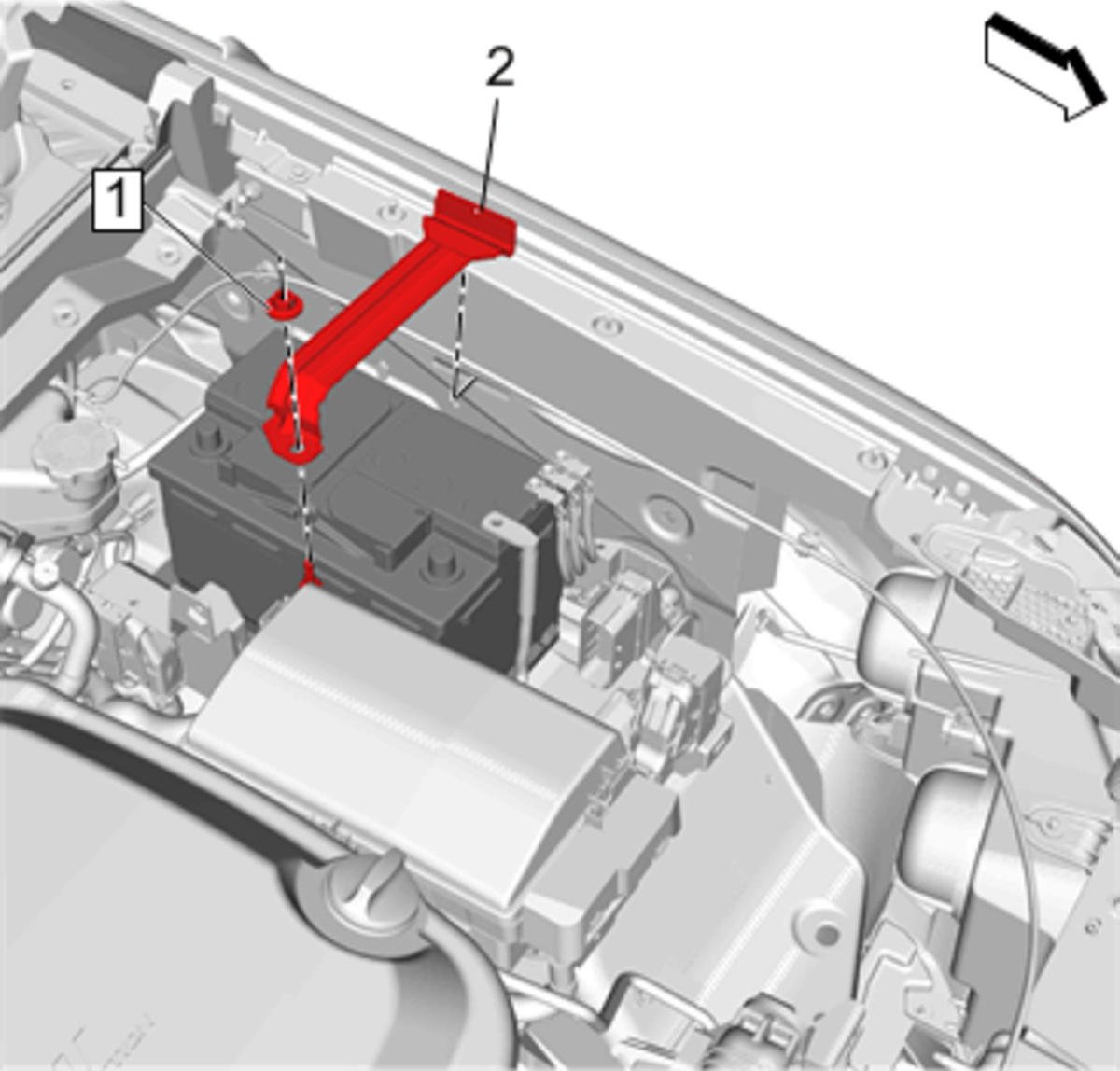

    4. Fig 3: Battery Hold Down Retainer And Retainer Nut
    GM4565922Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Hold Down Retainer (2)
  5. Install Battery Hold Down Retainer Nut (1) and tighten 22 N.m (16 lb ft)

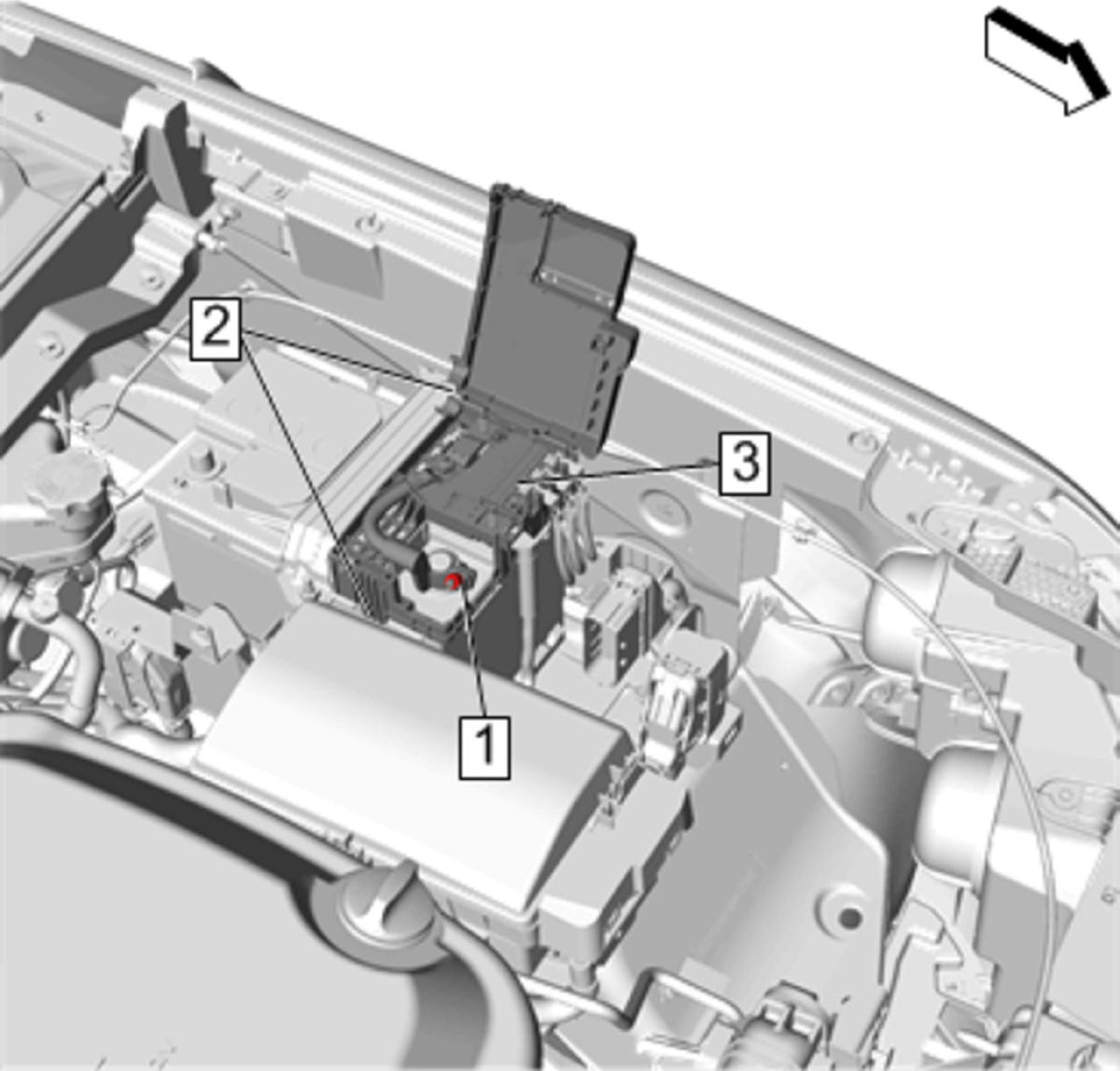

    6. Fig 4: Battery Positive Post Clamp Nut And Retaining Tabs
    GM4565911Courtesy of GENERAL MOTORS COMPANY
  6. Install Front Compartment Fuse Block (3)
  7. Engage the retaining tabs. (2)
  8. Install Battery Positive Post Clamp Nut (1) and tighten 4.5 N.m (40 lb in)

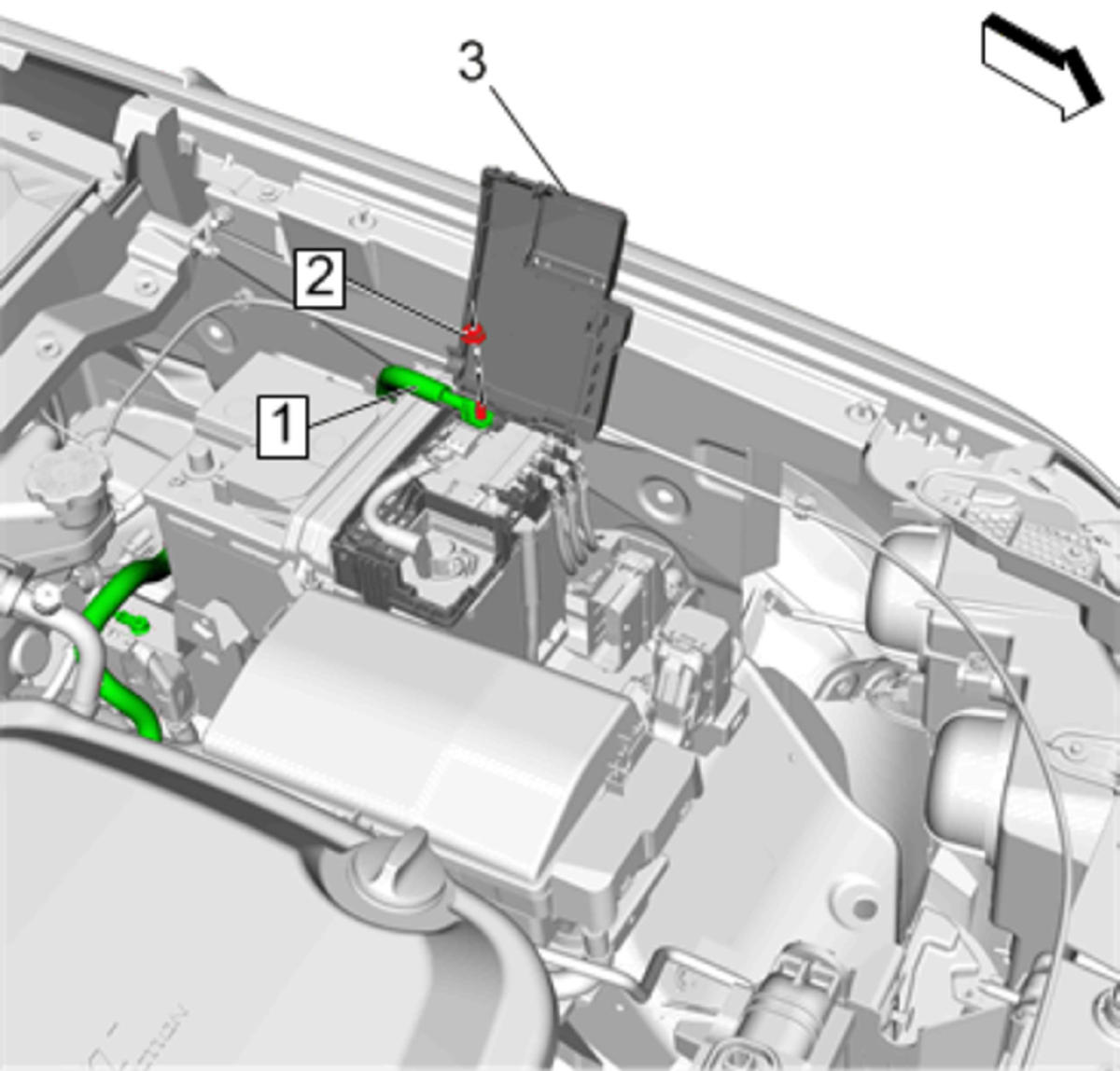

    9. Fig 5: Battery Positive Cable And Battery Fuse Block Cover
    GM4565898Courtesy of GENERAL MOTORS COMPANY
  9. Install Battery Positive Cable (1)
  10. Install Front Compartment Fuse Block Cable Nut (2) and tighten 15 N.m (11 lb ft)
  11. Close the battery fuse block cover.(3)
  12. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .
