Accessory Wakeup and Communications Enable

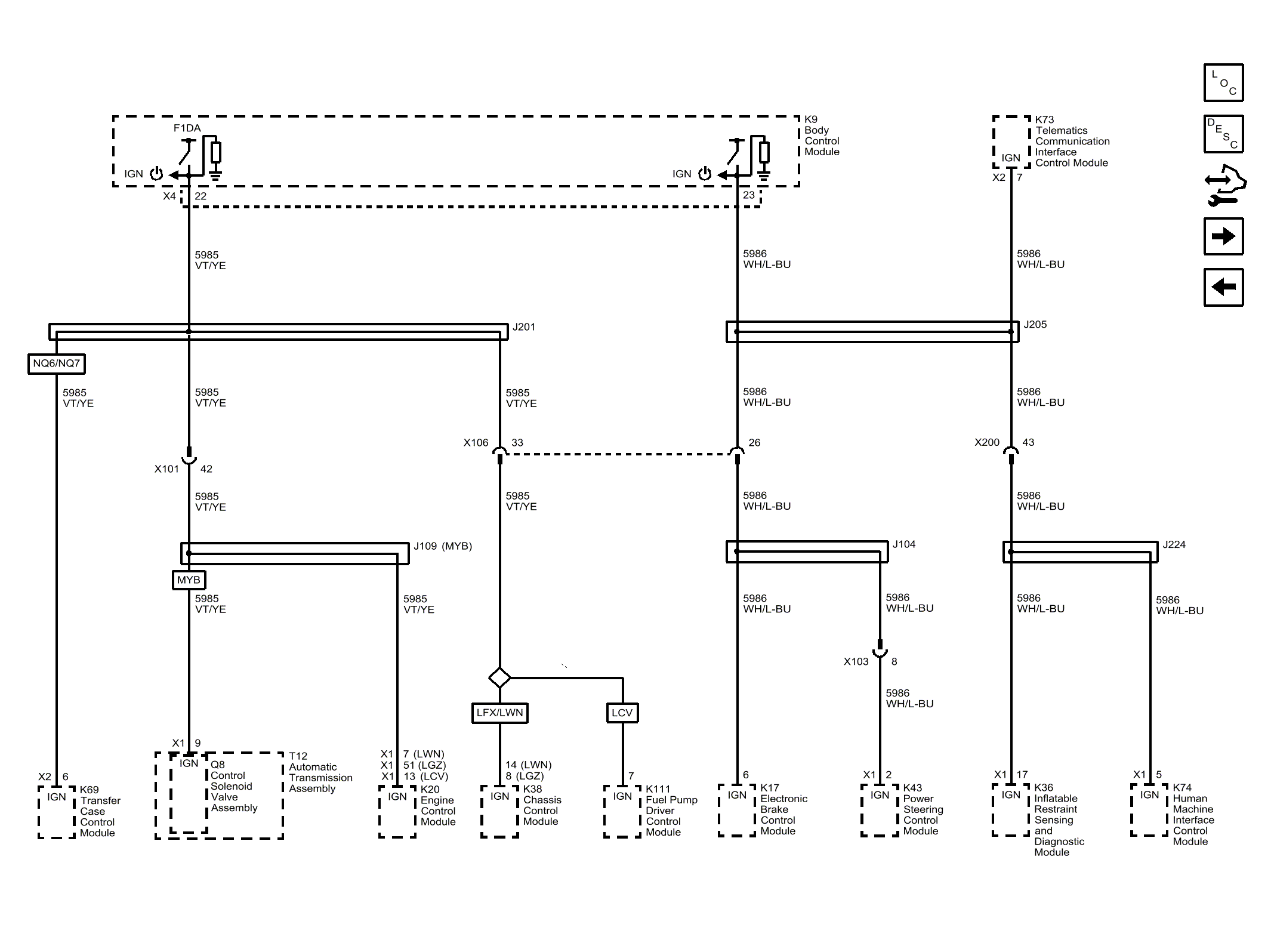

Fig 1: Accessory Wakeup and Communications Enable
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
