MOST Communication Enable

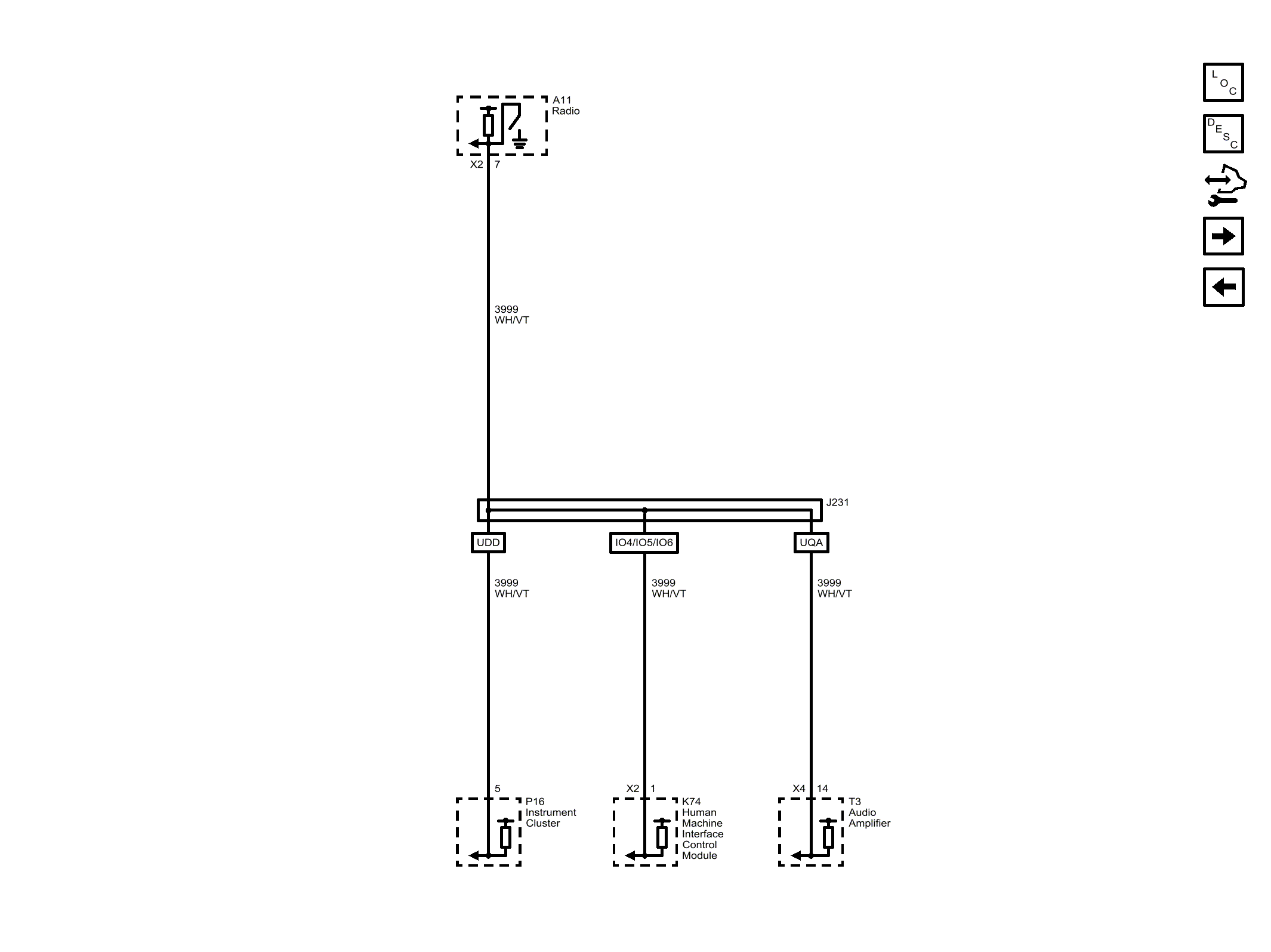

Fig 1: MOST Communication Enable
GM4507593Courtesy of GENERAL MOTORS COMPANY
